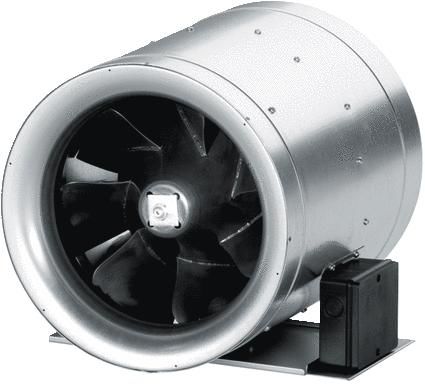

Maico 0080.0658 EDR 35 Diagonal fan, 5000m3 / h DN350

For direct installation in pipes. Conveying medium to large air volumes against high resistance. Compact dimensions, low weight and integrated mounting plate facilitate quick installation. The high efficiency reduces operating costs: the purchase price pays for itself after just one year, depending on the operating time. Intake nozzle for low-turbulence air intake. Diagonal impeller with downstream stator. Profiled impeller and stator blades ensure optimal air flow. With diffuser to increase the static pressure. Gap seal between the suction and pressure chamber reduces overflow losses. Meridian flow path prevents turbulence. Protection class IP X4. Exception EDR 45 to EDR 56 IP 54. Thermal class F. AC motor: Electrical connection via external terminal box. Speed control possible using transformers. Thermal overload protection as standard. Depending on the version, the connections of the thermal contacts must be connected to an MVE 10 motor protection switch or the control circuit of a contactor. Electrical connection: mains frequency 50 Hz. Article: EDR 35, delivery volume: 5000 m3/h, delivery volume nominal: 3173 m3/h / in opt. efficiency, pressure pfs, nominal: 572 Pa - in opt. efficiency, speed nnom: 2776 1/min - in opt. efficiency, speed: 2810 1/min, impeller type: diagonal, speed controllable: yes, voltage type: alternating current, rated voltage: 230 V, mains frequency: 50 Hz, rated power: 860 W / in opt. efficiency, INom: 4.2 A / in opt. Efficiency, IMax: 5.4 A, Protection class: IP X4, Thermal class: F, Mains cable: 3 / 1.5 mm2, Installation position: vertical / horizontal, Housing material: galvanized sheet steel, Color: silver gray, Weight: 17.12 kg, Weight with packaging: 17.89 kg, Nominal width: 355 mm, Width: 388 mm, Height: 363 mm, Depth: 396 mm, Width with packaging: 430 mm, Height with packaging: 385 mm, Depth with packaging: 400 mm, Conveyor temperature at IMax: 45 °C, Ambient temperature: 45 °C, Overall efficiency e: 50.5%, Measurement category: A, Efficiency category: static, Efficiency grade N: 61.2, VSD required: no, Year of manufacture: see type plate, Manufacturer name / Official registration number / Manufacturer's place of business: Maico Elektroapparate-Fabrik GmbH / Register court Freiburg, HRB 601233 / Villingen-Schwenningen, PBEP / delivery volumeBEP / Pfs, BEP: 0.955 kW / 3173 m3/h / 572 Pa, nBEP: 2776 1/min, specific ratio: approx. 1, information on dismantling and disposal: see assembly instructions, information on installation, operation and maintenance: see assembly instructions, items used in the efficiency measurement that are not described by the measurement category: -, IBEP: 4.2 A, sound power levelLWA5: 79 dB(A), DC motor: false
Type: EDR 35
