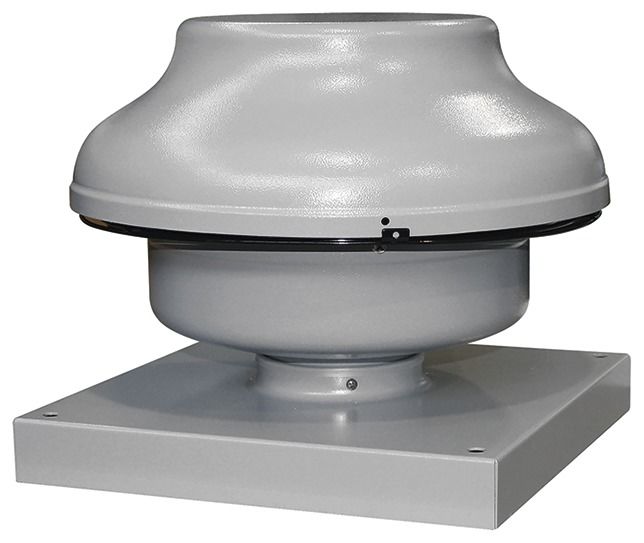

Space-saving roof fan with extremely small dimensions. For ventilation. Attractive housing made of galvanized and powder-coated sheet steel. Cover made of aluminum. The cover is easily removable for cleaning work. Coated safety grille. Radial impeller with backward-curved blades. Protection class IP X5. Motor: Highly efficient EC motor. Continuously variable speed. Suitable for continuous operation. Robust motor with ball bearing, maintenance-free. Installation instructions: Thanks to its low weight, no crane or freight elevator is required to transport the EHD to the roof. Electrical connection: Connection to terminal block in the housing. Safety instructions: The fan may only be operated if the impeller is protected against contact in accordance with DIN EN ISO 13857 for free-suction fans. Article: EHD 31 EC, delivery volume: 1184 m3/h, speed: 3395 1/min, impeller type: radial, speed controllable: yes, reversibility: no, voltage type: alternating current, rated voltage: 230 V, mains frequency: 50 Hz / 60 Hz, rated power: 175 W, IMax: 1.5 A, protection class: IP X5, thermal class: F, pole-changing: no, mains cable: 3 / 1.5 mm2, installation location: roof, installation position: vertical, material: sheet steel, galvanized, color: silver, weight: 8.5 kg, weight with packaging: 9.3 kg, nominal width: 315 mm, width: 484 mm, height: 484 mm, depth: 358 mm, width with packaging: 555 mm, height with packaging: 575 mm, depth with packaging: 415 mm, conveying medium temperature at IMax: -20 °C to 60 °C, sound pressure level: 53 dB(A) / distance 3 m, free field conditions
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Maico 0073.0565 EHD 31 EC radial roof fan ?
The article Maico 0073.0565 EHD 31 EC radial roof fan is currently
not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Maico 0073.0565 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Maico 0073.0565 EHD 31 EC radial roof fan always at the best possible price. We can give you a discount of 2% on
Maico 0073.0565 EHD 31 EC radial roof fan if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Enquiry: Maico 0073.0565 EHD 31 EC radial roof fan
