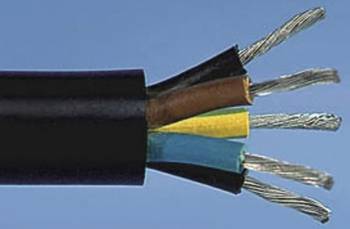

LTC 502170400000 5G50 mm ² drum, Heavy rubber cable
|
97,32 EUR |
|
|
incl. 28,76 EUR copper surcharge ( 115,81 EUR incl. VAT ) ≈ £83.11 | ≈ $109.97 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >1000 meters | |
| Lieske Part No.: | 628744 |
|---|---|
| Mfg Part No: | 502170400000 |
| UPC/EAN: | 4010480007976 |
| Weight: | 3.74 kg |
| Type: | H07RN-F 5G50 TR |
Further Rubber hose cable H07 RN-F from LTCFurther products in category Rubber hose cable H07 RN-F
All products of LTC
Product information for LTC 502170400000:
Heavy rubber hoses H07 RN-F
according to VDE 0282-4
Application
For connection of equipment under very extreme conditions, both mechanical and thermal point of view.
For example, for equipment used in agricultural, industrial and fire hazards. Next they will be used, etc. for large boilers, heating plates, hand lamps, electric tools such as circular saws, drills, home network devices, but also for transportable motors or machines on construction sites or in farms also suitable for fixed installation, eg on plaster, in temporary buildings and barracks, allowed for direct laying aud parts of lifting equipment, machinery, etc.
Structure
Conductor: stranded copper wire
Grade 5
Insulation: Rubber compound for
VDE 0207 T. 20
Colour code:
drawing: according to VDE 0293
Jacket: Rubber compound for
VDE 0207 T. 21
Color: black
Specifications
Rated voltage: 450/750 V
Test voltage: 2500 V
Temperature
range: - 25 ° C - + 60 ° C (during installation)
- 40 ° C - +60 ° C (after installation)
Operating temp. +60 ° C (max.)
Bending radius: 6 x cable diameter (min.)
Dauerzugbelastung: max. 15N/mm2 under
Considering the
Total copper cross section
Fire: according to VDE 0472 T. 804
Category B (= IEC 332-1)
Resistance to oil
of the mantle: VDE 0472 T. 803
Category A
Ozone resistance: according to VDE 0472 T. 805
Category A or
according to VDE 0472 T. 805
A1 Category C
Number of cores x cross-section mm ²: 5 G 50
Cu index (kg / m%): 240.0
Outer diameter approx: 53.0
Weight (kg / m%): 383.5 Type: H07RN-F 5G50
Quantity: 1 MTR
according to VDE 0282-4
Application
For connection of equipment under very extreme conditions, both mechanical and thermal point of view.
For example, for equipment used in agricultural, industrial and fire hazards. Next they will be used, etc. for large boilers, heating plates, hand lamps, electric tools such as circular saws, drills, home network devices, but also for transportable motors or machines on construction sites or in farms also suitable for fixed installation, eg on plaster, in temporary buildings and barracks, allowed for direct laying aud parts of lifting equipment, machinery, etc.
Structure
Conductor: stranded copper wire
Grade 5
Insulation: Rubber compound for
VDE 0207 T. 20
Colour code:
drawing: according to VDE 0293
Jacket: Rubber compound for
VDE 0207 T. 21
Color: black
Specifications
Rated voltage: 450/750 V
Test voltage: 2500 V
Temperature
range: - 25 ° C - + 60 ° C (during installation)
- 40 ° C - +60 ° C (after installation)
Operating temp. +60 ° C (max.)
Bending radius: 6 x cable diameter (min.)
Dauerzugbelastung: max. 15N/mm2 under
Considering the
Total copper cross section
Fire: according to VDE 0472 T. 804
Category B (= IEC 332-1)
Resistance to oil
of the mantle: VDE 0472 T. 803
Category A
Ozone resistance: according to VDE 0472 T. 805
Category A or
according to VDE 0472 T. 805
A1 Category C
Number of cores x cross-section mm ²: 5 G 50
Cu index (kg / m%): 240.0
Outer diameter approx: 53.0
Weight (kg / m%): 383.5 Type: H07RN-F 5G50
Quantity: 1 MTR
Please note...
For this article, we charge 14,85 EUR for measuring, cutting and re-furling the cable. If you take a whole 100m or 500m cable reel, the charge will of course be dropped.
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
The final cable weight will be determined before invoicing. The calculation is based on the copper content and any additional weight due to drums, pallets, or outer packaging. Prices are subject to this subsequent calculation.
Please note that for cables, that are not in stock and must be produced, the manufacturer may need an order of a minimum length that can be 5-10km depending on cable type!
This article contains a copper surcharge of 28,76 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
