Lindner K200707 Mersen DIIGG50V10 fuse insert gG DII AC500V 10A red content_copy

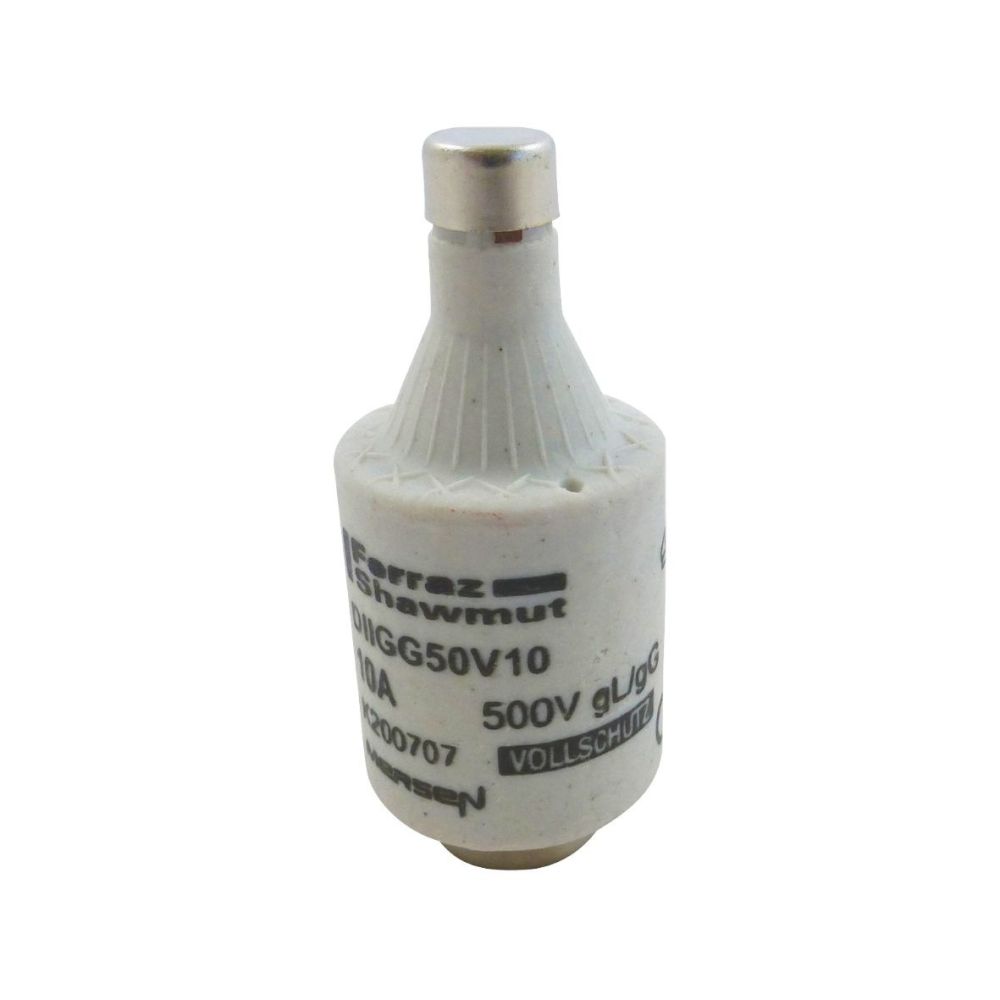

The product is a D-type fuse insert of operating class gG, manufactured by Lindner, type DIIGG50V10. It serves as a protective component in low-voltage installations and is used within the D-fuse system, classified as a screw-fuse system of the first generation. This system is still widely used in many existing installations, as it allows for simple, user-friendly replacement of fuse inserts. The fuse safely interrupts excessive overcurrents and short-circuit currents up to the rated interrupting current, thereby protecting cables and electrical installations from damage. The operating class gG also ensures protection against the electrodynamic effects of high short-circuit currents, which is crucial for the stability and safety of the installation.

Applications
This fuse insert is intended for use in low-voltage installations, particularly in areas where the fuse can be replaced by non-specialized personnel. The D-fuse system includes various sizes, such as NDZ, DII, DIII, DIV, and DV. The present product belongs to size DII, designed for specific rated currents and voltages. Its application is in electrical installations where reliable protection against overload and short-circuit is required.

Functions and Features in Detail
The fuse is rated for a nominal current of 10 amperes and thus protects cables and devices operating within this current range. The red color identifies the fuse according to standard marking rules, making it quickly identifiable in the fuse box. The operating class gG means that the fuse can withstand both thermal and electrodynamic stresses during short-circuit events, ensuring high reliability in operation. The fuse is designed for an operating voltage of 500 volts AC, making it suitable for use in industrial and commercial installations.

Technology Explained Simply
The fuse operates on the principle of thermal and electromagnetic disconnection. In the event of an overcurrent or short-circuit, the fuse element inside the fuse heats up, melts, and interrupts the circuit. The operating class gG ensures that the fuse remains stable even under high short-circuit currents and safely interrupts the current without electrodynamic destruction. The standard DIN VDE 0636-30 defines the requirements for such fuses, including electrical and mechanical properties as well as testing procedures.

Compatibility and Accessories
The fuse insert is designed for use in D-fuse holders of size DII. It is compatible with standard D-fuse boxes commonly installed in many low-voltage systems. Use in other sizes or holders is not intended and may lead to malfunctions or safety risks. The fuse is part of a system designed for standardization and interchangeability, ensuring easy availability of spare parts.

Installation and Mounting
Mounting is done by inserting the fuse insert into the corresponding D-fuse holder of size DII. The screw connection provides a secure and mechanically stable connection. Installation must be carried out in electrically de-energized systems, complying with the relevant electrical installation safety regulations. The fuse is not intended for use in explosive environments.

Operational Advantages
The fuse provides reliable protection against overload and short-circuit, extending the service life of connected devices and cables. The simple replaceability by non-specialists reduces maintenance time and dependence on skilled personnel. Compliance with DIN VDE 0636-30 ensures high safety standards required in industrial and commercial installations. The operating class gG ensures robust performance even under extreme conditions.

The item price shown refers to 5 pieces Lindner K200707

General
Utilization category	gG
Nominal current	10 A
Operating voltage	500 V AC
Size	DII
Colour	Red
Norm	DIN VDE 0636-30
Fuse type	D-system
Application area	Low-voltage installations

---
