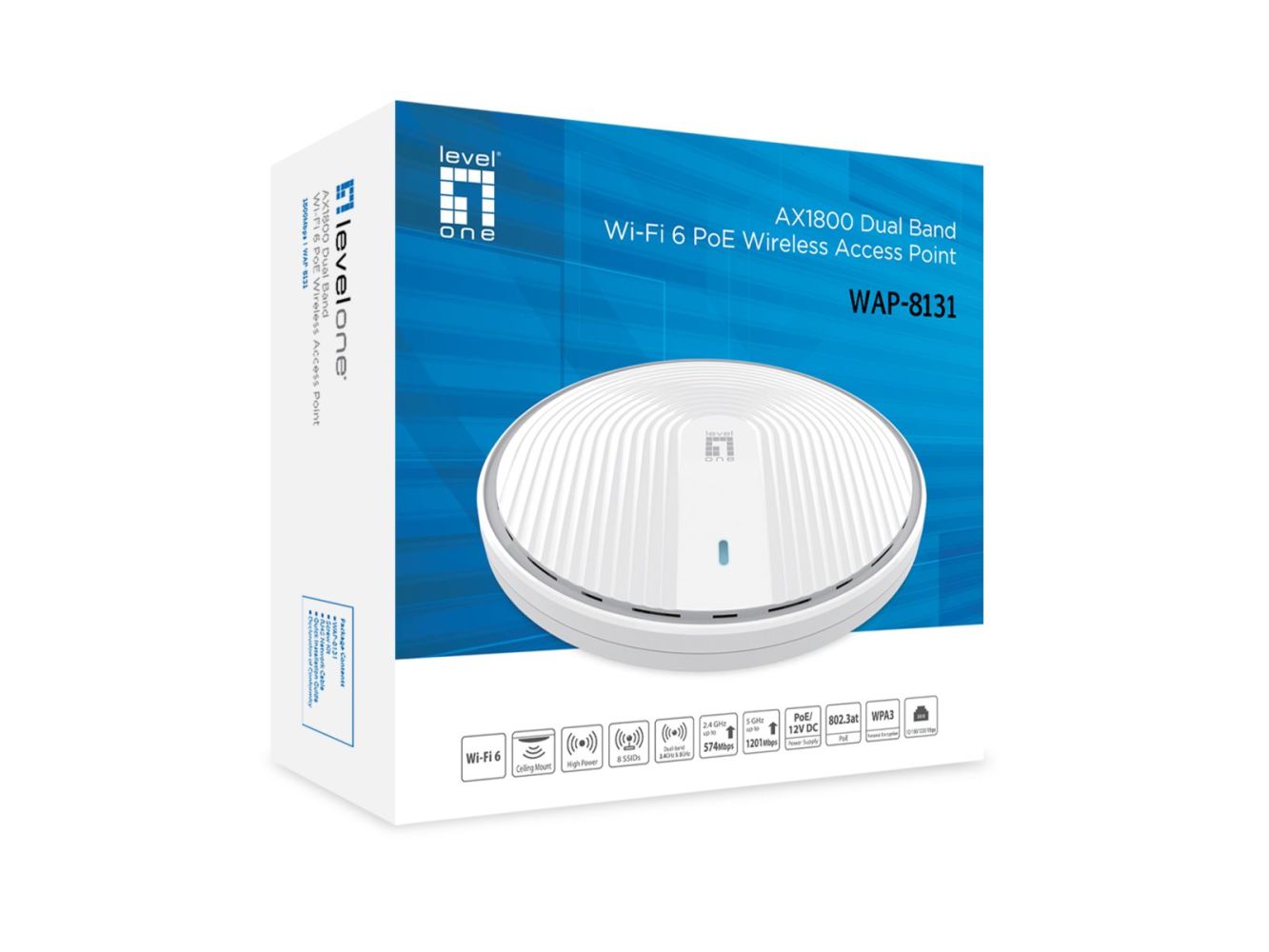

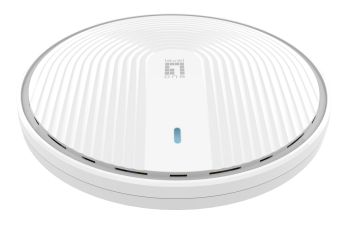

LevelOne WLAN Access AX1800 Wireless PoE DualBand WiFi6
|
180,17 EUR |
|
|
( 214,40 EUR incl. VAT ) ≈ £151.70 | ≈ $202.33 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1936637 |
| Mfg Part No: | WAP-8131 |
| UPC/EAN: | 4015867227879 |
| Weight: | 0.712 kg |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Status |
| Features | |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Frequency band | 2.412 - 2.484, 5.18G -5.825 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Channels quantity | 165 channels |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Operating modes | Gateway, Repeater, AP |
| 2.4 GHz | |
| 5 GHz | |
| 6 GHz | |
| MIMO | |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 500 mm |
| Master (outer) case gross weight | 16 kg |
| Products per master (outer) case | 20 pc(s) |
| Management features | |
| Web-based management | |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | |
| Packaging data | |
| Package width | 243 mm |
| Package depth | 235 mm |
| Package height | 76 mm |
| Package weight | 750 g |
| Performance | |
| Chipset | Qualcomm IPQ6000 |
| Flash memory | 128 MB |
| Internal memory | 512 MB |

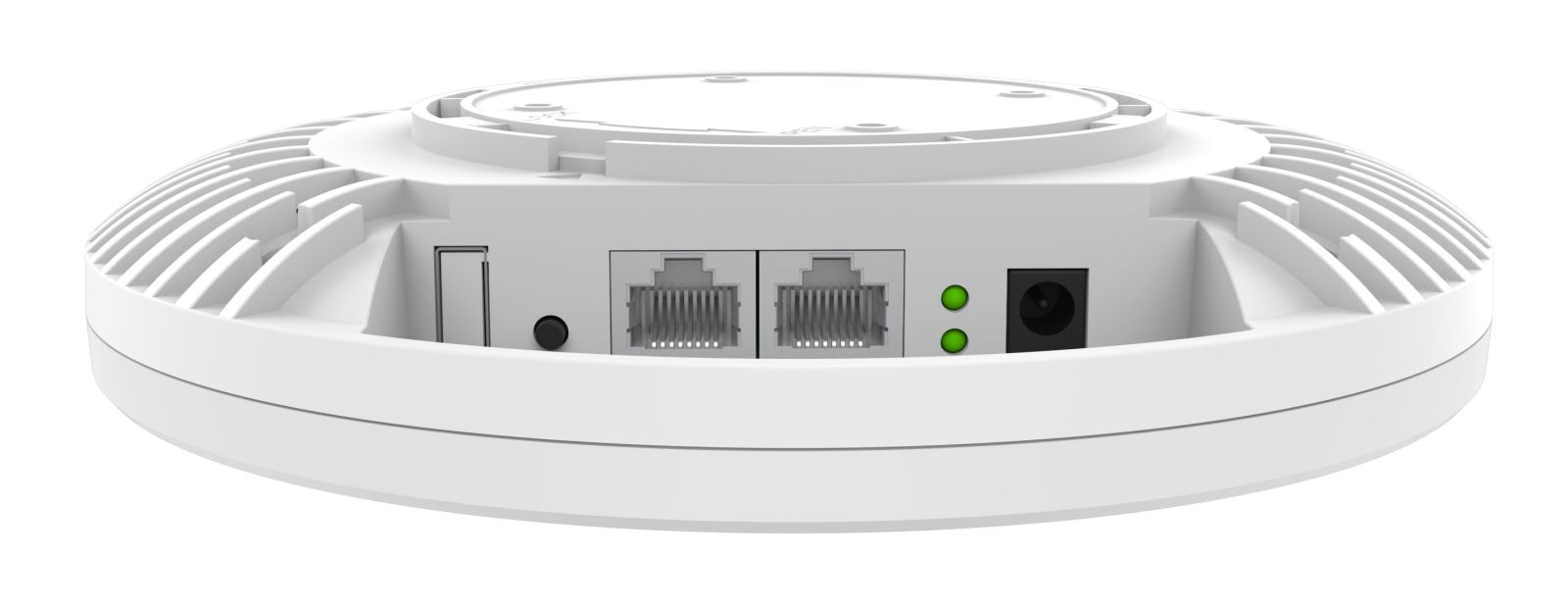

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | |
| Power | |
| Power consumption (max) | 14 W |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | AES, WPA, WPA2, WPA3 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 8 |
| Sustainability | |
| Sustainability compliance | |
| Technical details | |
| Master (outer) cases per pallet (air) | 10 pc(s) |
| Pallet net height | 164.4 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
| Weight & dimensions | |
| Width | 186 mm |
| Depth | 186 mm |
| Height | 42.5 mm |
| Weight | 418.5 g |
Questions & answers
What is the delivery time of LevelOne WLAN Access AX1800 Wireless PoE DualBand WiFi6?
The article LevelOne WLAN Access AX1800 Wireless PoE DualBand WiFi6 is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne WAP-8131 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne WLAN Access AX1800 Wireless PoE DualBand WiFi6 always at the best possible price. We can give you a discount of 2% on LevelOne WLAN Access AX1800 Wireless PoE DualBand WiFi6 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
