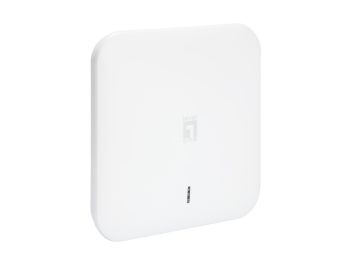

LevelOne WL-AP WAP-8123 1200Mbps MIMO PoE
|
134,85 EUR |
|
|
( 160,47 EUR incl. VAT ) ≈ £113.54 | ≈ $151.44 plus delivery charges: 53,00 € |
|
| On order · Expected to be available from 15.12.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2064363 |
| Mfg Part No: | WAP-8123 |
| UPC/EAN: | 4015867229538 |
| Weight: | 0.82 kg |
| Antenna | |
| Antenna features | Integrated antenna |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Certificates | |
| Certification | CE, FCC |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| LED indicators | Power, Status |
| Reset button | |
| Internal | |
| Features | |
| Maximum data transfer rate | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 ~ 2.4835, 5.15 ~ 5.35, 5.46 ~ 5.72, 5.725~ 5.825 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Number of users | 128 user(s) |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Virtual LAN features | Tagged VLAN |
| Operating modes | Access Point (AP),Gateway,Repeater,WISP |
| 2.4 GHz | |
| 5 GHz | |
| Automatic channel selection | |
| MIMO | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| Quality of Service (QoS) support | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Master (outer) case width | 435 mm |
| Master (outer) case length | 491 mm |
| Master (outer) case height | 515 mm |
| Master (outer) case gross weight | 18 kg |
| Products per master (outer) case | 20 pc(s) |
| Management features | |
| Switch type | Managed |
| Web-based management | |
| Firmware upgradeable | |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Mounting kit | |
| Quick start guide | |
| Packaging data | |
| Package width | 235 mm |
| Package depth | 81 mm |
| Package height | 243 mm |
| Package weight | 830 g |
| Package type | Box |
| CD manual | |
| CD quick installation guide | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | |
| Power | |
| Power consumption (typical) | 30 W |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit AES, 128-bit WEP, TKIP, WPA, WPA2, WPA2-PSK |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Number of SSID supported | 8 |
| Weight & dimensions | |
| Width | 198 mm |
| Depth | 28 mm |
| Height | 198 mm |
| Weight | 520 g |
Questions & answers
What is the delivery time of LevelOne WL-AP WAP-8123 1200Mbps MIMO PoE?
The article LevelOne WL-AP WAP-8123 1200Mbps MIMO PoE is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne WAP-8123 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne WL-AP WAP-8123 1200Mbps MIMO PoE always at the best possible price. We can give you a discount of 2% on LevelOne WL-AP WAP-8123 1200Mbps MIMO PoE if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
