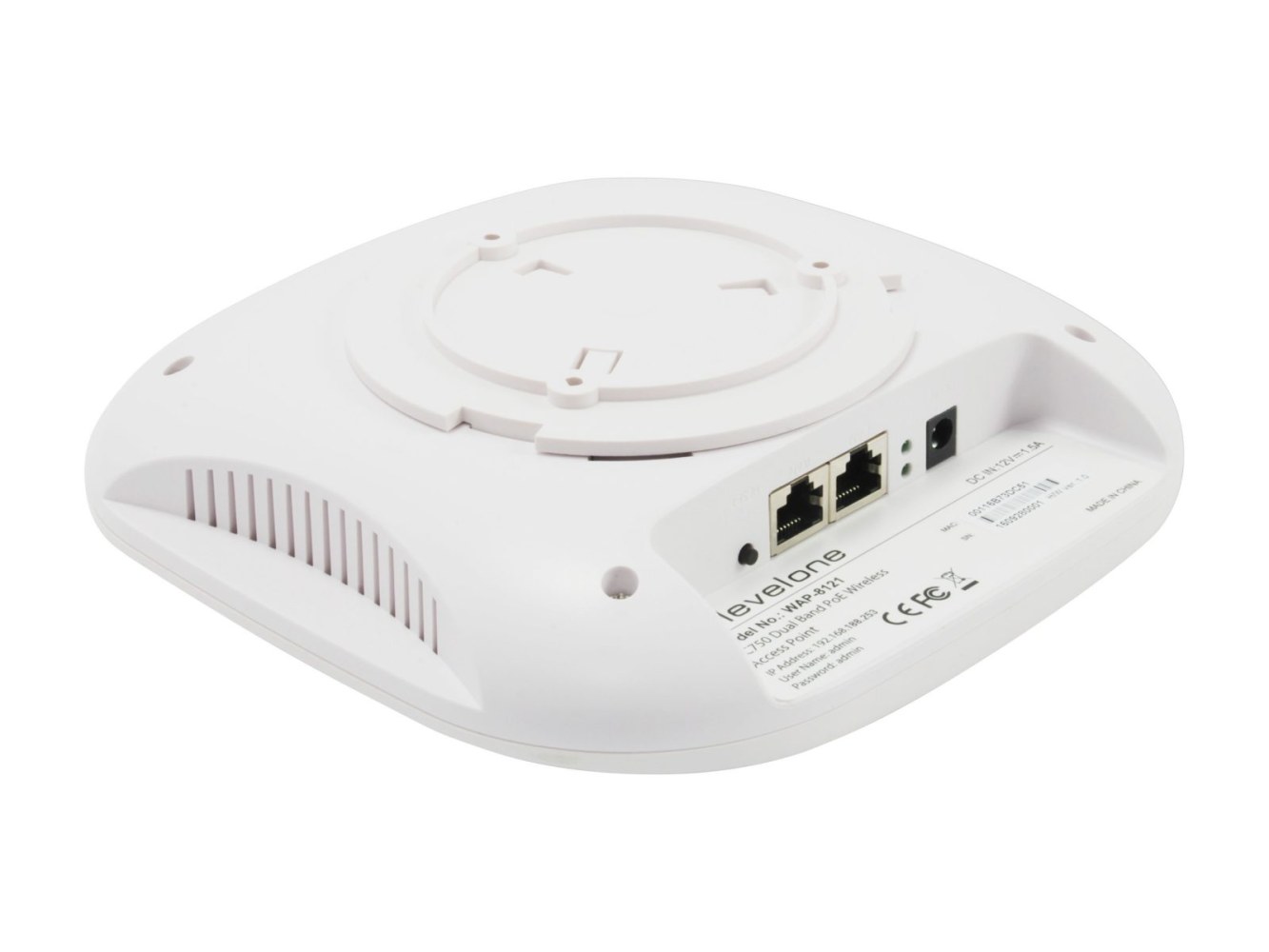

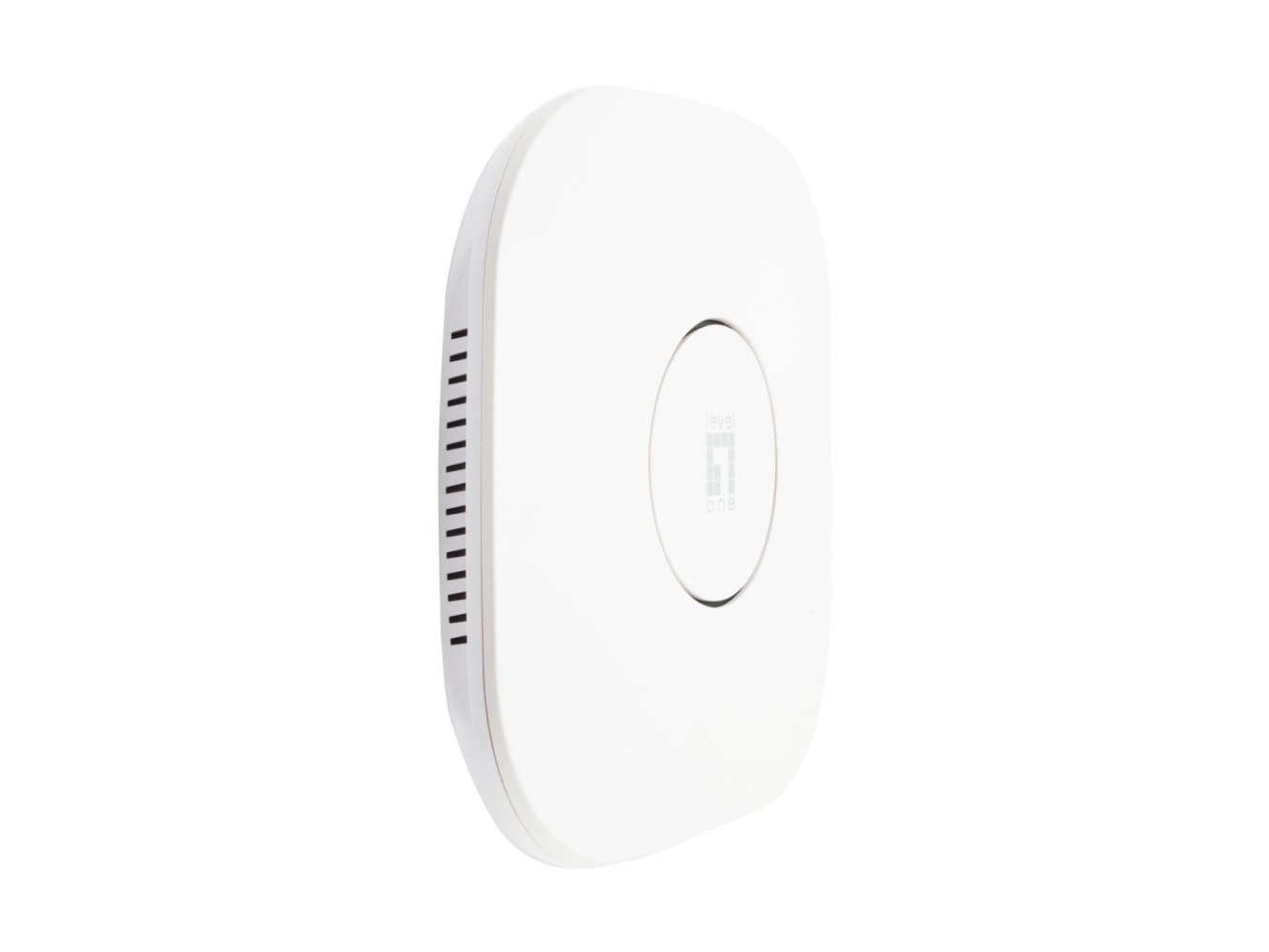

LevelOne WL-AP WAP-8121 750Mbps PoE Ceiling Mount
|
94,99 EUR |
|
|
( 113,04 EUR incl. VAT ) ≈ £79.98 | ≈ $106.67 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 373382 |
| Mfg Part No: | WAP-8121 |
| UPC/EAN: | 4015867199190 |
| Weight: | 0.68 kg |
Further Access Points from LevelOneFurther products in category Access Points
All products of LevelOne
| Antenna | |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antennas quantity | 3 |
| Antenna gain level (max) | 15 dBi |
| Certificates | |
| Certification | CE/FCC |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| LED indicators | Power, WLAN |
| Reset button | |
| Internal | |
| Features | |
| Maximum data transfer rate | 433 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5.825 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Number of users | 80 user(s) |
| Channels quantity | 36 channels |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Receiver sensitivity | 2.4GHz: 802.11n (20MHZ): -70 dBm 802.11n (40MHZ): -68 dBm 802.11g: -72 dBm 802.11b: -95 dBm 5GHz: 802.11ac (80MHZ): -62 dBm 802.11ac (40MHZ): -65 dBm 802.11ac (20MHZ): -68 dBm 802.11n (40MHZ): -68 dBm 802.11n (20MHZ): -70 dBm 802.11a: -72 dBm |
| 2.4 GHz | |
| 5 GHz | |
| Automatic channel selection | |
| Wi-Fi Multimedia (WMM)/(WME) | |
| Flow control support | |
| Quality of Service (QoS) support | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Web-based management | |
| Firmware upgradeable | |
| Operational conditions | |
| Operating relative humidity (H-H) | -20 - 50% |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | 5 - 90 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | |
| Packaging data | |
| Package width | 214 mm |
| Package depth | 62 mm |
| Package height | 317 mm |
| Package weight | 680 g |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| WAN connection | Ethernet (RJ-45), Wi-Fi |
| DC-in jack | |
| Power | |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) | 15 W |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Number of SSID supported | 8 |
| Weight & dimensions | |
| Width | 189 mm |
| Depth | 38.5 mm |
| Height | 189 mm |
| Weight | 326 g |
Questions & answers
What is the delivery time of LevelOne WL-AP WAP-8121 750Mbps PoE Ceiling Mount?
The article LevelOne WL-AP WAP-8121 750Mbps PoE Ceiling Mount is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne WAP-8121 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne WL-AP WAP-8121 750Mbps PoE Ceiling Mount always at the best possible price. We can give you a discount of 2% on LevelOne WL-AP WAP-8121 750Mbps PoE Ceiling Mount if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
