LevelOne WLAN access point & extender outdoor 5GHz PoE
|
116,15 EUR |
|
|
( 138,22 EUR incl. VAT ) ≈ £97.22 | ≈ $129.97 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1442022 |
| Mfg Part No: | WAB-8010 |
| UPC/EAN: | 4015867226889 |
| Weight: | 0.705 kg |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 1 |
| Antenna gain level (max) | 14 dBi |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Design | |

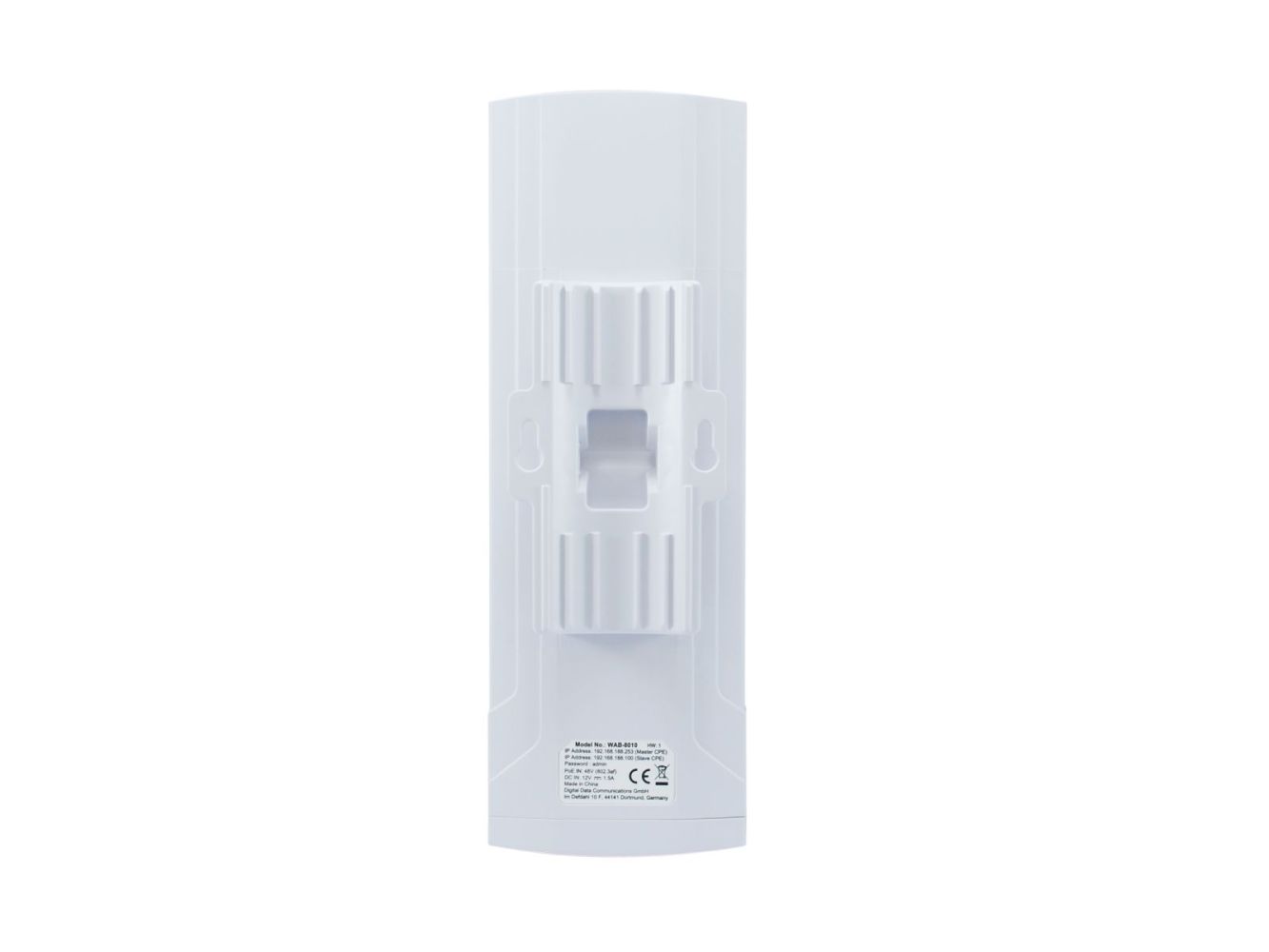

| Placement | Pole |
| Product colour | White |
| International Protection (IP) code | IP65 |

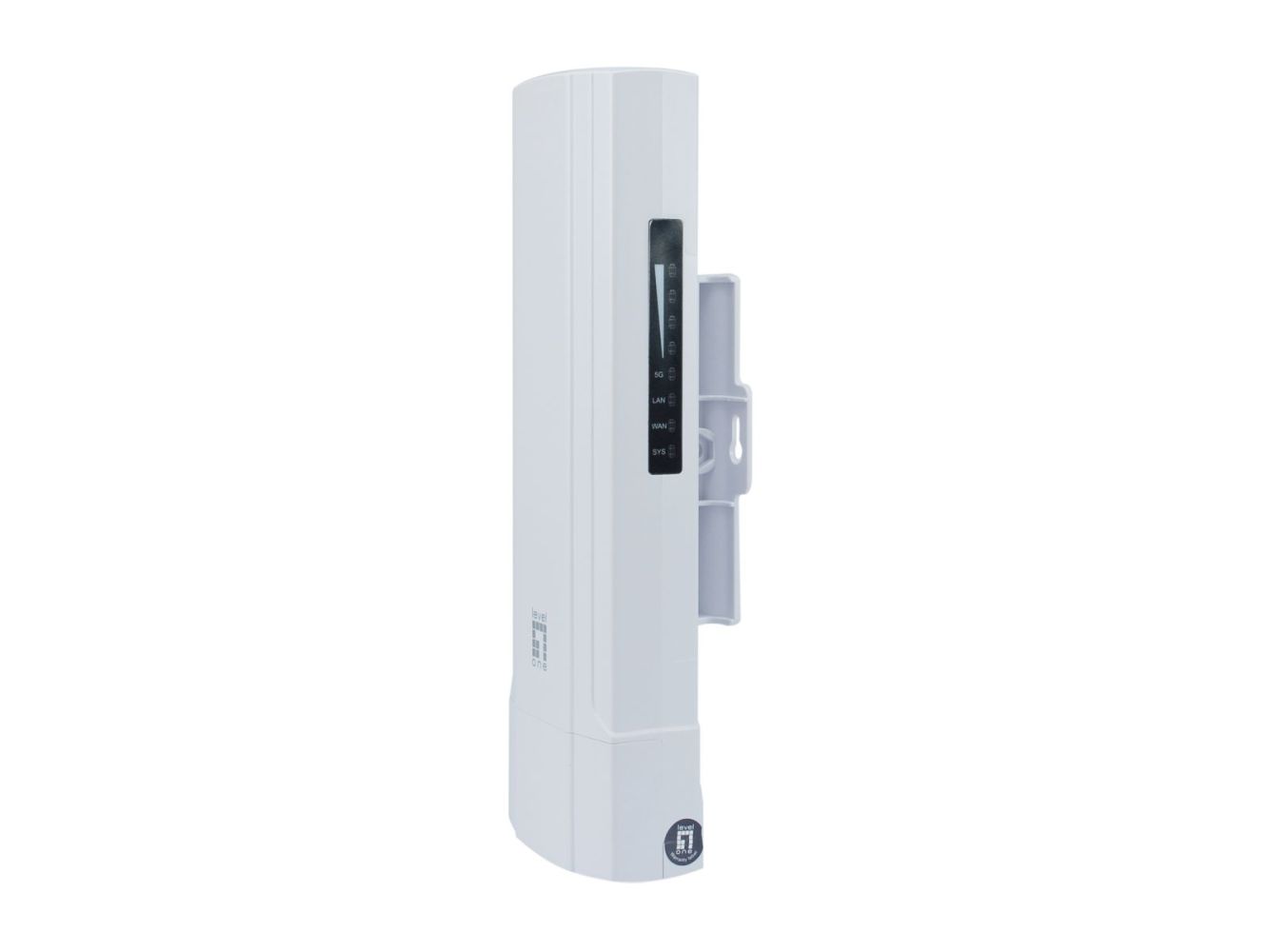

| LED indicators | LAN, System, WAN |
| Features | |
| Maximum data transfer rate | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 4.92 - 5.92 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Channels quantity | 165 channels |
| MIMO type | Multi User MIMO |
| Maximum outdoor range | 5000 m |
| 2.4 GHz | |
| 5 GHz | |
| MIMO | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Country of origin | China |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 455 mm |
| Master (outer) case gross weight | 15 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 45 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Mounting kit | |
| Quick start guide | |
| Packaging data | |
| Package width | 106 mm |
| Package depth | 332 mm |
| Package height | 95 mm |
| Package weight | 660 g |
| Performance | |
| Processor manufacturer | Qualcomm |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Internal memory type | DDR2 |
| Built-in processor | |
| Ports & interfaces | |

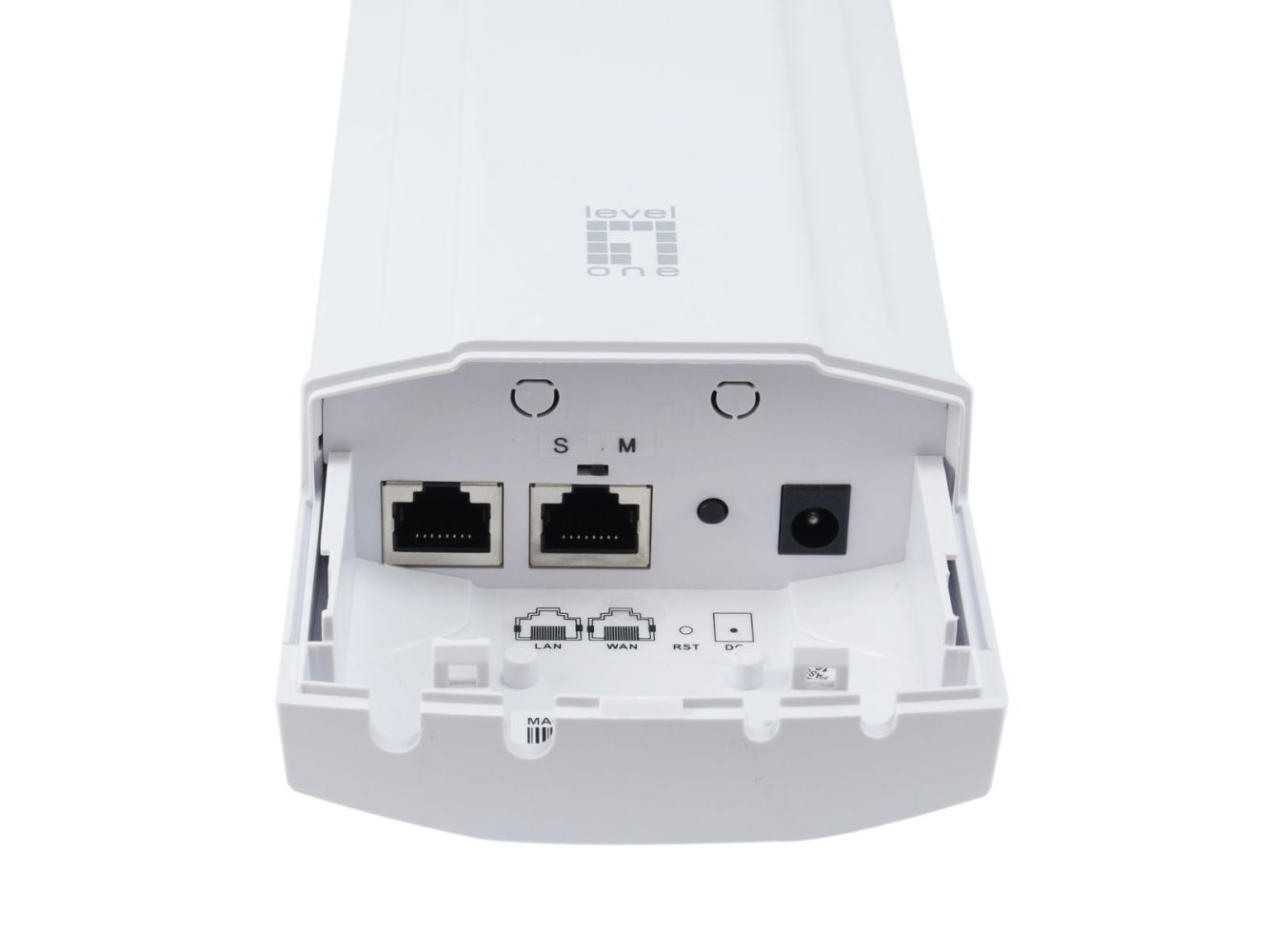

| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| DC-in jack | |
| Power | |
| AC input voltage | 12 V |
| Input current | 1.5 A |
| Power over Ethernet (PoE) | |
| Security | |
| Security algorithms | WEP, WPA, WPA2 |
| Number of SSID supported | 4 |
| Technical details | |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Pallet net height | 164 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
| Weight & dimensions | |
| Width | 87 mm |
| Depth | 257 mm |
| Height | 45 mm |
| Weight | 440 g |
Questions & answers
What is the delivery time of LevelOne WLAN access point & extender outdoor 5GHz PoE?
The article LevelOne WLAN access point & extender outdoor 5GHz PoE is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne WAB-8010 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne WLAN access point & extender outdoor 5GHz PoE always at the best possible price. We can give you a discount of 2% on LevelOne WLAN access point & extender outdoor 5GHz PoE if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
