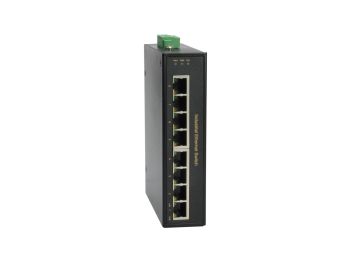

LevelOne Switch 8x FE IFP-0801 4xFE 126W 4xPoE
|
205,22 EUR |
|
|
( 244,21 EUR incl. VAT ) ≈ £171.77 | ≈ $228.82 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1013433 |
| Mfg Part No: | IFP-0801 |
| UPC/EAN: | 4015867196663 |
| Weight: | 0.525 kg |
| Certificates | |
| Certification | EMI: FCC Part 15 Subpart B Class A CE EN 55022 Class A EMC: EN55022, EN55024 EN50155/EN60068-2-6 EN50155/EN60068-2-27 EN50155/EN60068-2-32 |
| Data transmission | |
| Switching capacity | 1.6 Gbit/s |
| MAC address table | 1000 entries |
| Packet buffer memory | 1 MB |
| Store-and-forward | |
| Design | |
| Product colour | Black |
| LED indicators | Link, Power, Status |
| Safety | IEC EN60950-1 |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 240 mm |
| Master (outer) case height | 570 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 12.6 kg |
| Products per master (outer) case | 16 pc(s) |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Other features | |
| Terminal block port | |
| Packaging content | |
| Manual | |
| Packaging data | |
| Package type | Box |
| Package width | 165 mm |
| Package depth | 65 mm |
| Package height | 215 mm |
| Package weight | 730 g |
| Wall mounting kit | |
| Terminal block included | |
| DIN rail included | |
| Performance | |
| Mean time between failures (MTBF) | 510304 h |
| Plug and Play | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power | |
| Power consumption (typical) | 5.76 W |
| Redundant power supply (RPS) support | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage range | 44 - 56 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 126 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 36.2 mm |
| Height | 142 mm |
| Weight | 525 g |
Questions & answers
What is the delivery time of LevelOne Switch 8x FE IFP-0801 4xFE 126W 4xPoE?
The article LevelOne Switch 8x FE IFP-0801 4xFE 126W 4xPoE is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IFP-0801 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Switch 8x FE IFP-0801 4xFE 126W 4xPoE always at the best possible price. We can give you a discount of 2% on LevelOne Switch 8x FE IFP-0801 4xFE 126W 4xPoE if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
