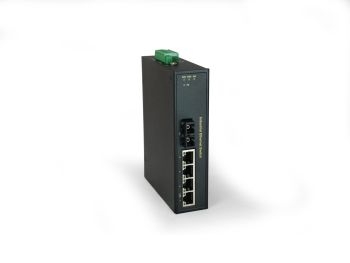

LevelOne Switch 5x FE IFP-0503 1xFE 126W 4xPoE
|
246,91 EUR 246,91 EUR |
|
|
( 293,82 EUR incl. VAT ) ≈ £206.66 | ≈ $276.29 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 928668 |
| Mfg Part No: | IFP-0503 |
| UPC/EAN: | 4015867192405 |
| Weight: | 0.47 kg |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Data transmission | |
| Switching capacity | 1 Gbit/s |
| MAC address table | 1000 entries |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| International Protection (IP) code | IP30 |
| Wall mountable | |
| DIN rail mounting | |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 320 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 8 kg |
| Products per master (outer) case | 15 pc(s) |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Optical fiber | |
| Fiber type | Single-mode |
| Transmission distance (max) | 30 km |
| Other features | |
| Terminal block port | |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package type | Gift box |
| Package width | 120 mm |
| Package depth | 60 mm |
| Package height | 185 mm |
| Wall mounting kit | |
| Terminal block included | |
| DIN rail included | |
| Performance | |
| Internal memory | 1 MB |
| Flash memory | 1 MB |
| Mean time between failures (MTBF) | 150000 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 4 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Power | |
| Power source | DC/PoE |
| Input voltage | 0 - 56 V |
| Power consumption (typical) | 3.76 W |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 126 W |
| Power over Ethernet (PoE) | |
| Sustainability | |
| Sustainability compliance | |
| Technical details | |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 162 cm |
| Master (outer) cases per pallet (sea) | 12 pc(s) |
| Weight & dimensions | |
| Width | 114 mm |
| Depth | 50 mm |
| Height | 165 mm |
| Weight | 500 g |
Questions & answers
What is the delivery time of LevelOne Switch 5x FE IFP-0503 1xFE 126W 4xPoE?
The article LevelOne Switch 5x FE IFP-0503 1xFE 126W 4xPoE is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne IFP-0503 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne Switch 5x FE IFP-0503 1xFE 126W 4xPoE always at the best possible price. We can give you a discount of 2% on LevelOne Switch 5x FE IFP-0503 1xFE 126W 4xPoE if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
