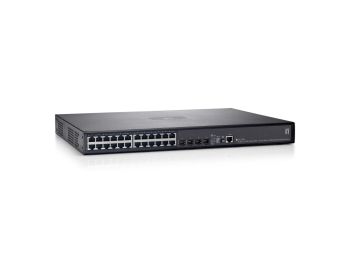

LevelOne GTL-2691 Switch 24xGE/2x10GSFP+ 48,3 cm ( 19 inch ) Managed L3
|
1.682,78 EUR |
|
|
( 2.002,51 EUR incl. VAT ) ≈ £1,408.49 | ≈ $1,883.03 plus delivery charges: 100,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 4 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 474597 |
| Mfg Part No: | GTL-2691 |
| UPC/EAN: | 4015867185100 |
| Weight: | 5.128 kg |
| Certificates | |
| Certification | FCC Part 15 Class A, CE, RoHS |
| Data transmission | |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Number of static routes | 512 |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| Rack mounting | |
| Stackable | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Traffic classification | |
| ARP inspection | |
| System event log | |
| Multicast features | |
| Multicast MAC address table | 1024 entries |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x |
| Virtual LAN features | Private VLAN, Port-based VLAN |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Rate limiting | |
| Spanning tree protocol | |
| Active link detection | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package type | Box |
| Package width | 530 mm |
| Package depth | 420 mm |
| Package height | 135 mm |
| Performance | |
| Buffer size | 2048 KB |
| Firmware upgradeable | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 2 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| Power consumption (typical) | 49.6 W |
| Power consumption (max) | 63.96 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | Telnet, SNMP, SNTP, RMON, |
| Supported network protocols | IPv6, IPv4, BOOTP |
| Security | |
| Authentication | MAC-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| SSH/SSL support | |
| Loop protection | |
| BPDU filtering/protection | |
| Auto-edge port | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 415 mm |
| Height | 44 mm |
| Weight | 5.7 kg |
Questions & answers
What is the delivery time of LevelOne GTL-2691 Switch 24xGE/2x10GSFP+ 48,3 cm ( 19 inch ) Managed L3 ?
The article LevelOne GTL-2691 Switch 24xGE/2x10GSFP+ 48,3 cm ( 19 inch ) Managed L3 is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GTL-2691 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne GTL-2691 Switch 24xGE/2x10GSFP+ 48,3 cm ( 19 inch ) Managed L3 always at the best possible price. We can give you a discount of 2% on LevelOne GTL-2691 Switch 24xGE/2x10GSFP+ 48,3 cm ( 19 inch ) Managed L3 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
