LevelOne GSW-2457 24 Ports Ethernet Switch - 24 x Network (RJ-45) Ports - 10/100/1000Base-T content_copy

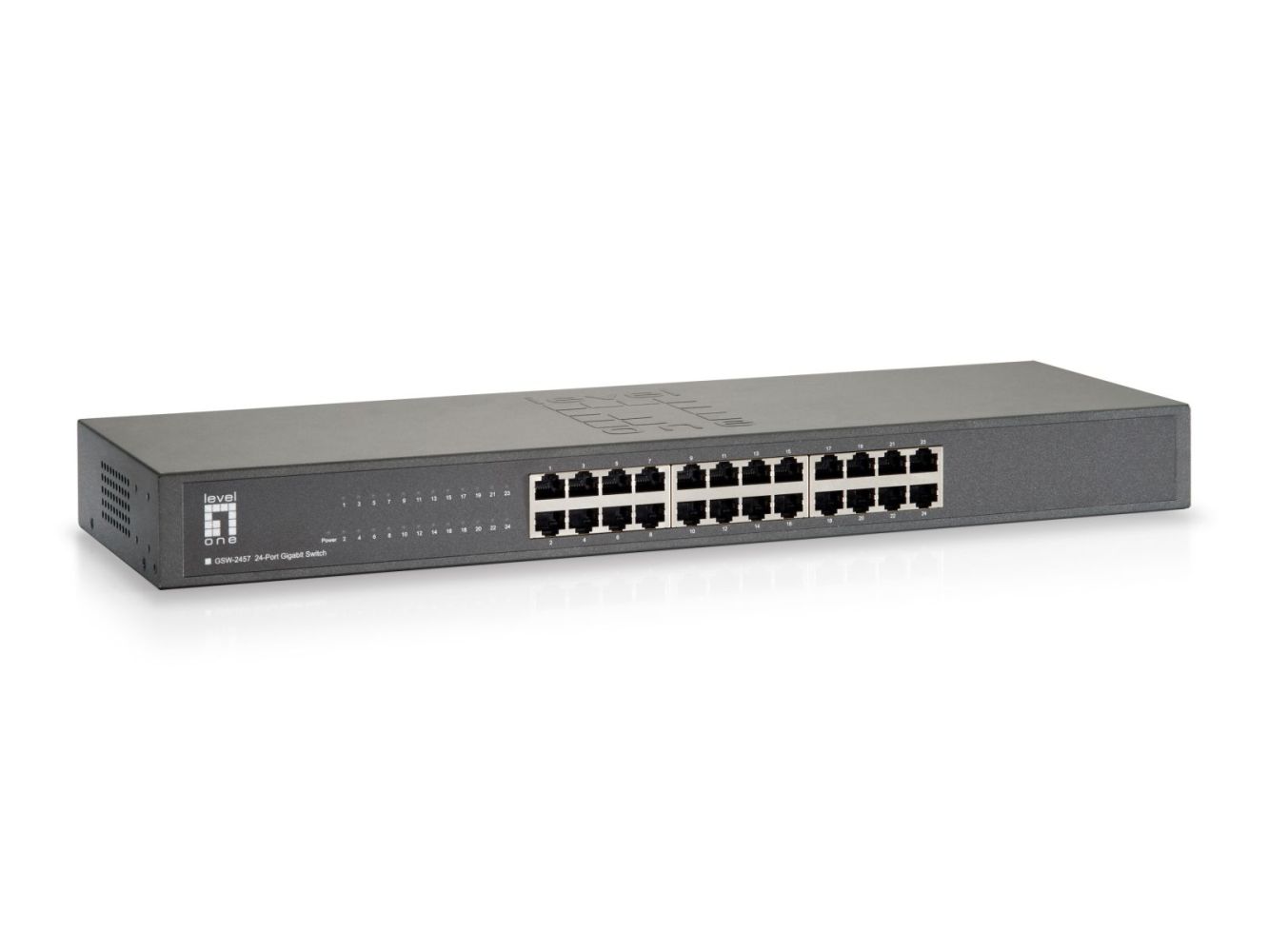

The LevelOne GSW-2457 is an unmanaged 24-port Gigabit Ethernet switch designed for use in small to medium-sized networks. The device offers 24 RJ-45 ports with a data transfer rate of 10/100/1000 Mbit/s and is designed for rack mounting. It features a metallic housing in black, ensuring stable and durable operation. The integrated LED indicators for activity, link, power, and speed enable quick visual inspection of the operational status.

Applications

The switch is suitable for office and home applications where a simple, reliable network connection is required. It is particularly suited for environments where complex management functions are not necessary, and fast, stable data transmission is the priority. Support for Jumbo Frames with a size of 9000 bytes increases transfer rate and reduces latency when transmitting large data volumes, for example in video or CAD applications.

Functions and Features in Detail

The GSW-2457 supports network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, and IEEE 802.3az. The Auto MDI/MDI-X function automatically detects cable type and eliminates the need for crossover cables. The MAC address table with 8000 entries enables efficient management of connected devices. The Store-and-Forward technology ensures error-free data transmission by receiving and checking the entire data packet before forwarding it.

Technology Explained Simply

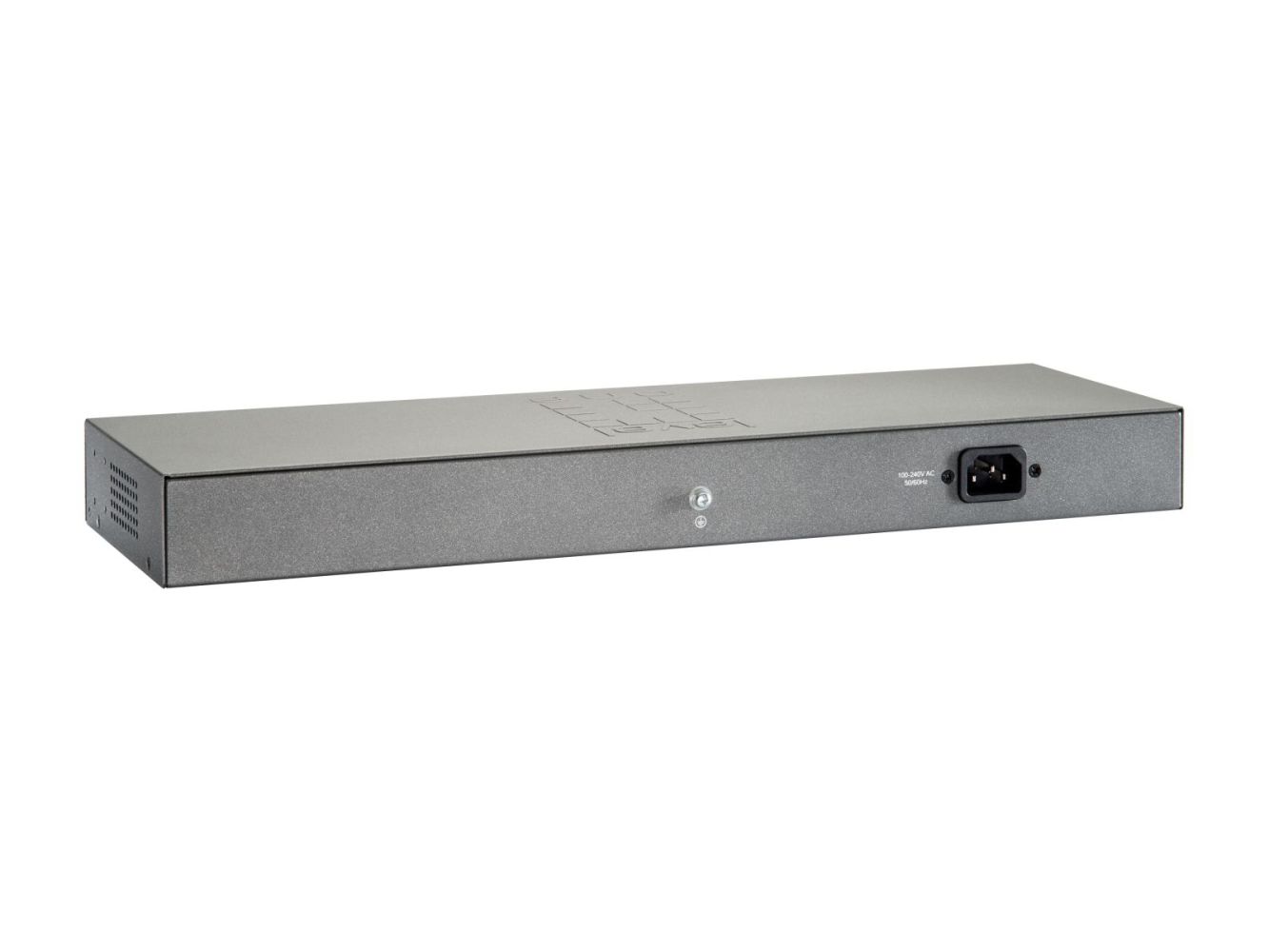

The switching capacity of 48 Gbit/s and a transfer rate of 1.488 Mpps ensure high performance, even when multiple users are using the network simultaneously. The integrated energy efficiency according to IEEE 802.3az minimizes power consumption in standard operation to 15 W. The built-in processor and 4 MB flash memory support smooth processing of network data. Power supply is provided by an internal power unit with an input voltage of 100–240 V AC at 50 Hz.

Compatibility and Accessories

The switch is compatible with all devices supporting Gigabit Ethernet (10/100/1000). The delivery includes an AC power cable, a quick start guide, and a rack mounting kit, enabling installation in standard 19-inch racks. Certifications FCC Class A, VCCI Class A ITE, and RoHS guarantee compliance with applicable electromagnetic compatibility and environmental standards.

Mounting and Installation

The GSW-2457 is designed for rack mounting and can be installed in standard 19-inch racks. Dimensions are 44 mm (width), 220 mm (depth), and 440 mm (height). Mounting is done using the included rack mounting kit. Installation is plug-and-play, requiring no additional configuration.

Operational Advantages

The switch provides a reliable, maintenance-free network connection with high speed and low power consumption. The LED indicators simplify fault diagnosis, and support for Jumbo Frames optimizes the transfer of large files. Operating temperature ranges from 0 to 40 °C, with relative humidity during operation at 10–90 %. Storage is possible at temperatures from -40 to 70 °C and relative humidity of 5–90 %. The device is designed for indoor use and does not require additional cooling.

Data transmission
Switching capacity	48 Gbit/s
Forwarding rate	1.488 Mpps
MAC address table	8000 entries
Jumbo frames	9000
Store-and-forward
Jumbo frames support
Design
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power, Speed
Rack mounting
Logistics data
Country of origin	China
Master (outer) case width	405 mm
Master (outer) case length	500 mm
Master (outer) case height	240 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	12 kg
Products per master (outer) case	5 pc(s)
Management features
Switch type	Unmanaged
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
10G support
Auto MDI/MDI-X
MAC address auto-learning supported
MAC address auto-aging supported
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Packaging content
Cables included	AC
Quick start guide
Rack mount kit
Packaging data
Package type	Box
Package width	224 mm
Package depth	486 mm
Package height	77 mm
Package weight	2.2 kg
Performance
Flash memory	4 MB
Built-in processor
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Power
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	15 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Technical details
Master (outer) cases per pallet layer	22 pc(s)
Pallet gross length	80 cm
Pallet gross width	120 cm
Pallet height (air)	155.5 cm
Weight & dimensions
Width	44 mm
Depth	220 mm
Height	440 mm
Weight	2.65 kg

---
