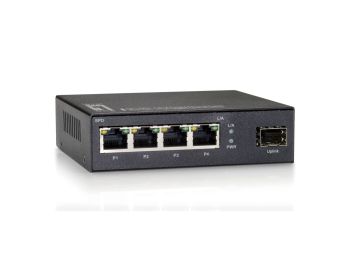

LevelOne GEU-0521 - switch - 4 ports - unmanaged - desktop, wall-mountable
|
74,06 EUR |
|
|
( 88,13 EUR incl. VAT ) ≈ £61.99 | ≈ $82.87 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 793951 |
| Mfg Part No: | GEU-0521 |
| UPC/EAN: | 4015867173480 |
| Weight: | 0.38 kg |
Further up to 8 ports from LevelOneFurther products in category up to 8 ports
All products of LevelOne
Product information for LevelOne GEU-0521:
Device Type: Switch - 4 ports - managed Enclosure Type: Desktop, wall mountable, Ports: 4 x 10/100/1000 + 1 x Gigabit SFP Performance: Forwarding performance: 1,488,000 pps, size of the MAC address table: 1000 entries, Jumbo Frame Support: 9KB, Features: Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI / MDI-X), store and forward, Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3 from, IEEE 802.3x, RAM: 104 KB, Status Indicators: Power, Link / Activity, Interfaces: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 | 1 x SFP (mini-GBIC) Power Power Device: Power adapter - external, Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 10 Watt, Width: 7.7 cm, depth: 13 cm, height: 2.4 cm, weight: 280 g Accessories: rubber pad, Compliant Standards: FCC Class B certified, Min Operating Temperature: 0 ° C Max Operating temperature: 40 ° C Humidity Range Operating: 10 - 90% (non-condensing), Min Storage temperature: -20 ° C Max Storage temperature: 90 ° C
| Certificates | |
| Certification | FCC Class B, CE |
| Data transmission | |
| Switching capacity | 1 Gbit/s |
| MAC address table | 4000 entries |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 1 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Rack mounting | |
| Wall mountable | |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Transmission distance (max) | 0.55 km |
| Packaging content | |
| Quick start guide | |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 250 mm |
| Package height | 55 mm |
| Package weight | 540 g |
| AC adapter included | |
| Rubber feet | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 96 mm |
| Depth | 112 mm |
| Height | 30 mm |
| Weight | 380 g |
Questions & answers
What is the delivery time of LevelOne GEU-0521 - switch - 4 ports - unmanaged - desktop, wall-mountable?
The article LevelOne GEU-0521 - switch - 4 ports - unmanaged - desktop, wall-mountable is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne GEU-0521 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne GEU-0521 - switch - 4 ports - unmanaged - desktop, wall-mountable always at the best possible price. We can give you a discount of 2% on LevelOne GEU-0521 - switch - 4 ports - unmanaged - desktop, wall-mountable if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
