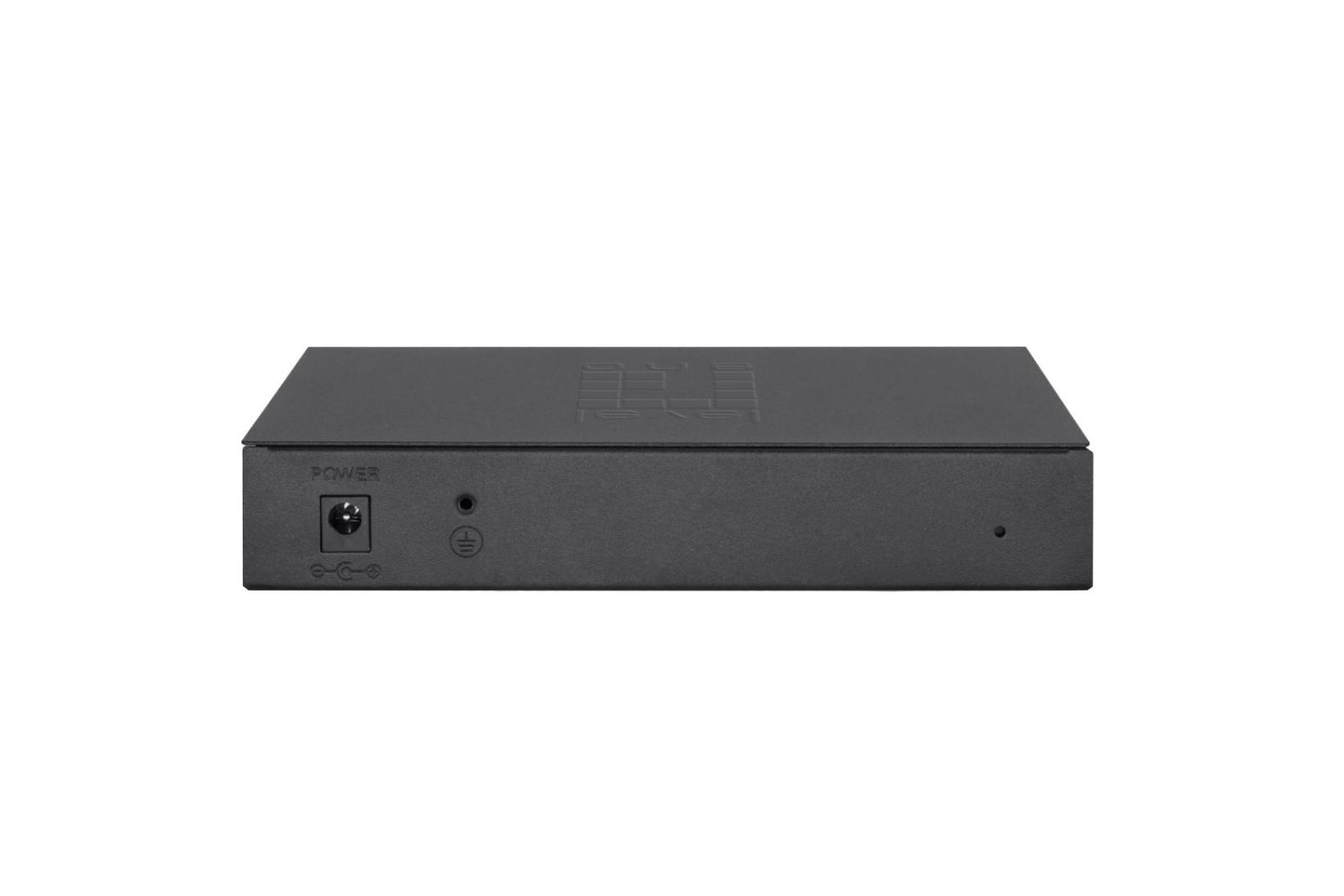

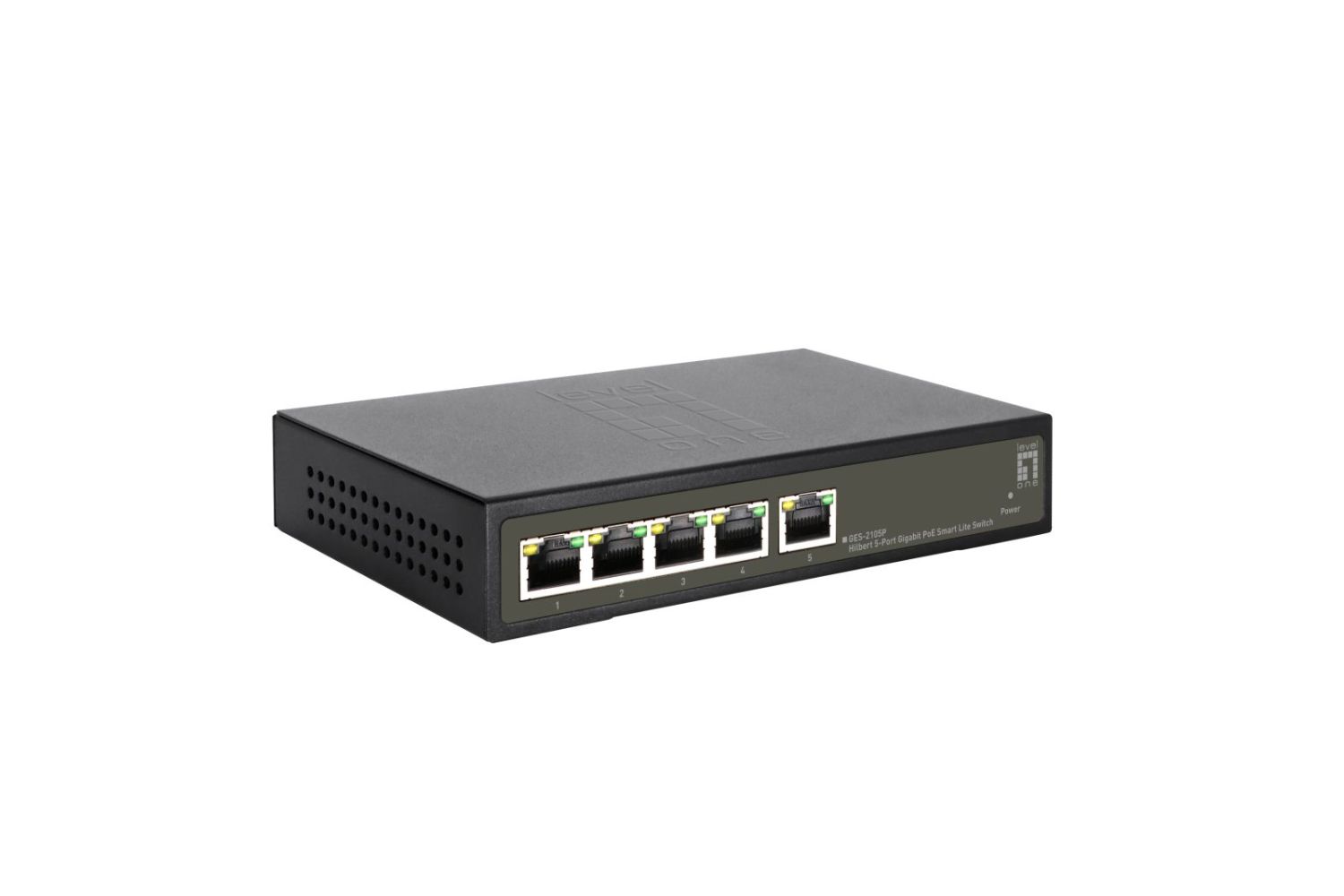

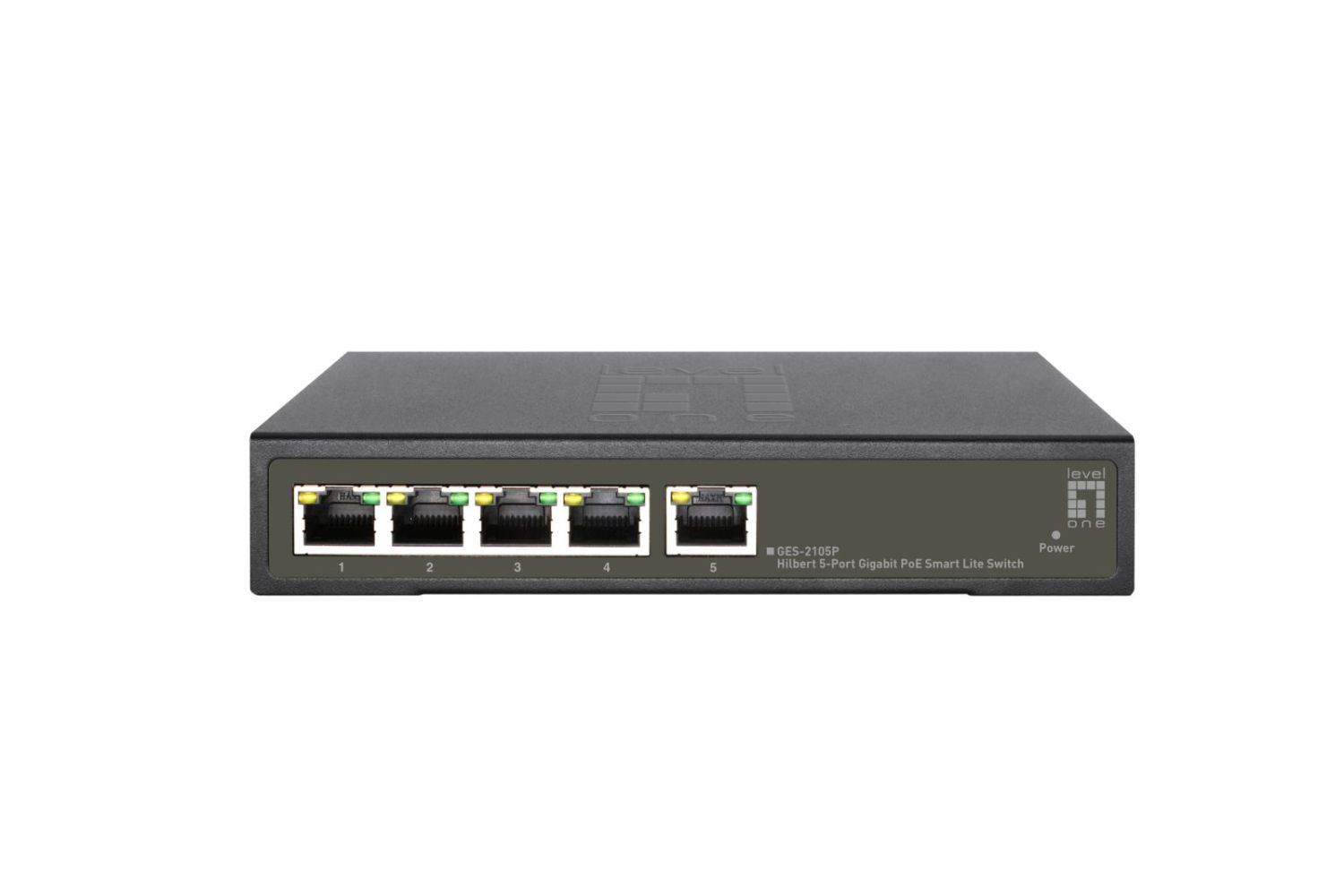

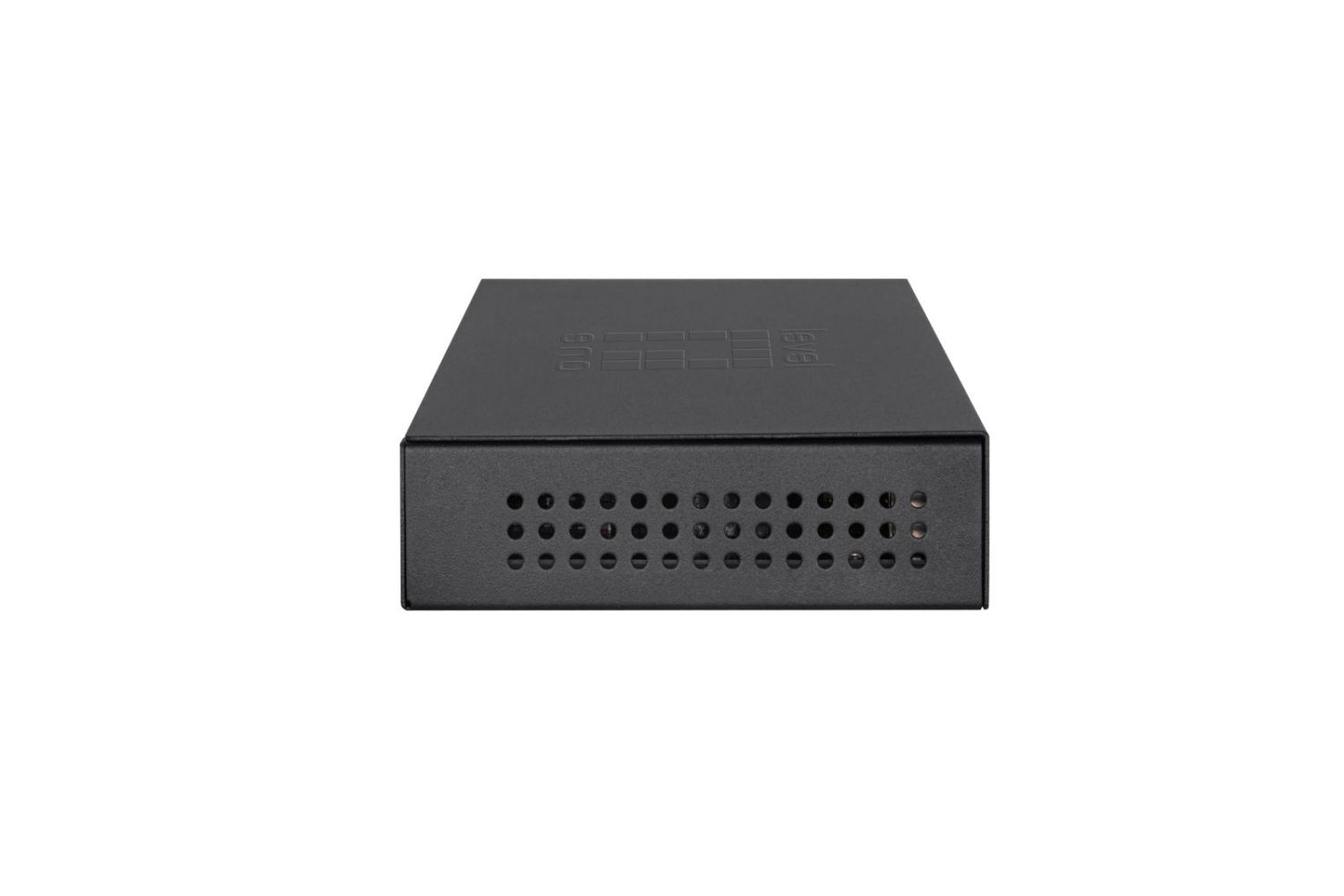

LevelOne Switch 5x GE GES-2105P Hilbert 60W 4xPoE+
|
76,94 EUR |
|
|
( 91,56 EUR incl. VAT ) ≈ £64.40 | ≈ $86.10 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1995944 |
| Mfg Part No: | GES-2105P |
| UPC/EAN: | 4015867229194 |
| Weight: | 0.801 kg |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Certification | UKCA, FCC Class A |
| Data transmission | |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Number of queues | 4 |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | |
| Logistics data | |
| Master (outer) case net weight | 600 g |
| Country of origin | China |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 480 mm |
| Master (outer) case gross weight | 9.8 kg |
| Products per master (outer) case | 10 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 32 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Half duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 23.88 BTU/h |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Packaging data | |
| Package type | Box |
| Package width | 310 mm |
| Package depth | 230 mm |
| Package height | 65 mm |
| Package weight | 920 g |
| AC adapter included | |
| Performance | |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 43800 h |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power | |
| Power source | DC/PoE |
| Input current | 1.2 A |
| Input voltage | 54 V |
| Power consumption (max) | 65 W |
| Surge protection voltage | 8 kV |
| Power supply included | |
| Surge protection | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | |
| Security | |
| IGMP snooping | |
| Sustainability | |
| Sustainability compliance | |
| Technical details | |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet height (air) | 158.4 cm |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 95 mm |
| Height | 29 mm |
| Weight | 400 g |
