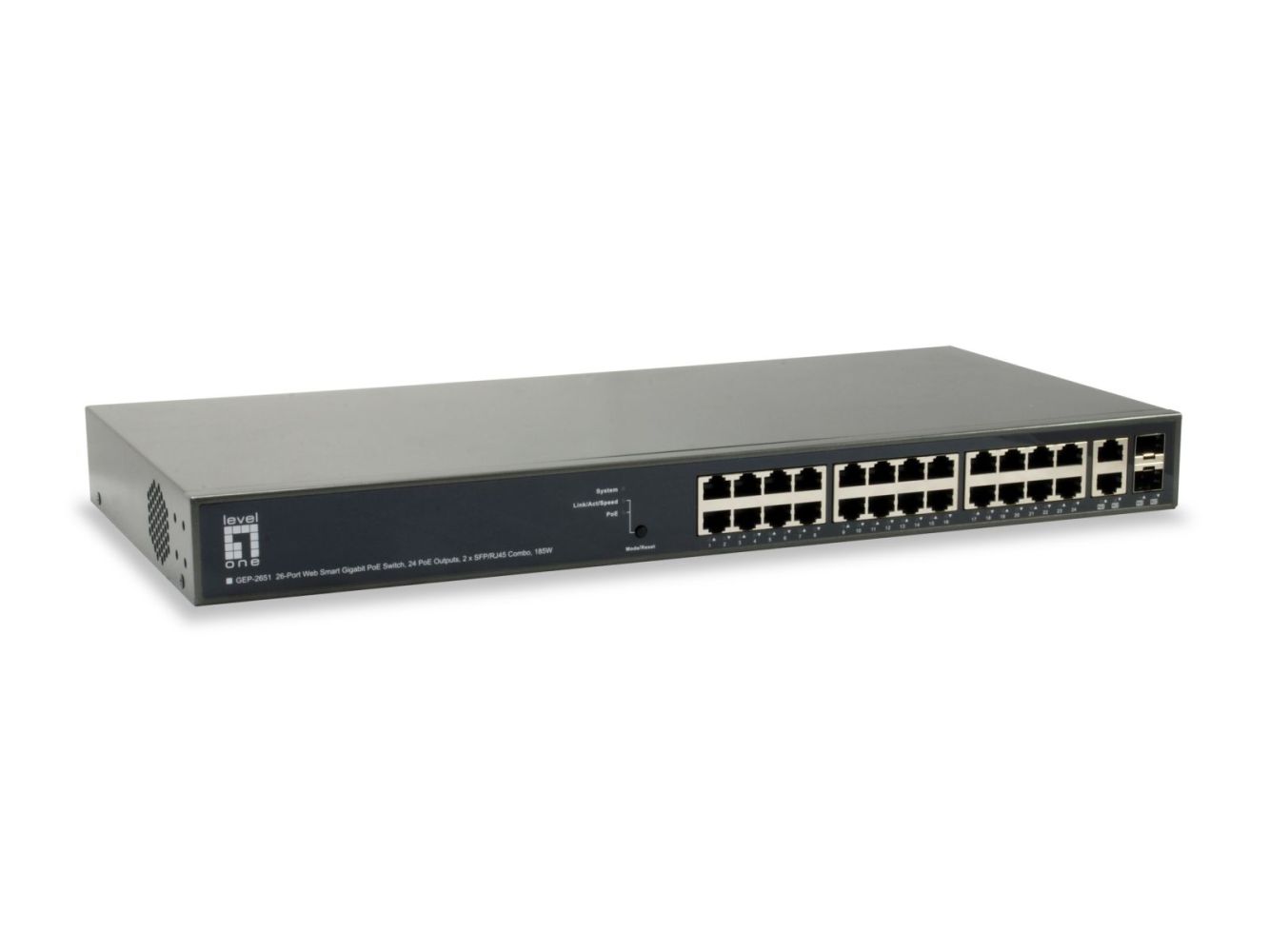

LevelOne Switch 26x GE GEP-2651 2xGSFP 48,3 cm ( 19 inch ) 185W 24xPoE+
|
583,16 EUR |
|
|
( 693,96 EUR incl. VAT ) ≈ £495.69 | ≈ $654.89 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 261023 |
| Mfg Part No: | GEP-2651 |
| UPC/EAN: | 4015867198957 |
| Weight: | 3.1 kg |
| Certificates | |
| Certification | CE, FCC Part 15 Class A, RoHS |
| Data transmission | |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.7 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames | 9600 |
| Store-and-forward | |
| Static route | |
| Jumbo frames support | |
| Design | |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Speed |
| Safety | UL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 |
| Rack mounting | |
| Reset button | |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 482 mm |
| Master (outer) case length | 540 mm |
| Master (outer) case height | 324 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 21 kg |
| Products per master (outer) case | 5 pc(s) |
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | |
| Web-based management | |
| System event log | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Virtual LAN features | Tagged VLAN, MAC address-based VLAN, Port-based VLAN |
| Number of VLANs | 256 |
| Port mirroring | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Spanning tree protocol | |
| Cable length detection | |
| MAC address auto-learning supported | |
| MAC address auto-aging supported | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000BASE-X |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Manual | |
| Packaging data | |
| Package width | 300 mm |
| Package depth | 520 mm |
| Package height | 90 mm |
| Package weight | 3.5 kg |
| Performance | |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 211272 h |
| Firmware upgradeable | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Combo SFP ports quantity | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 18.29 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 185 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Supported network protocols | IPv4/IPv6 |
| Security | |
| DHCP features | DHCP server, DHCP snooping, DHCP client |
| Security algorithms | 802.1x RADIUS |
| Access Control List (ACL) | |
| IGMP snooping | |
| Static port security | |
| Loop protection | |
| BPDU filtering/protection | |
| Weight & dimensions | |
| Width | 442 mm |
| Depth | 211 mm |
| Height | 44 mm |
| Weight | 3.1 kg |
