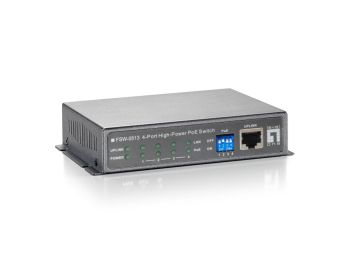

LevelOne FSW-0513 4 Ports Ethernet Switch - 4 x PoE Ports - 10/100Base-TX - Uplink Port
|
135,03 EUR |
|
|
( 160,69 EUR incl. VAT ) ≈ £113.02 | ≈ $151.10 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 170408 |
| Mfg Part No: | FSW-0513 |
| UPC/EAN: | 4015867154564 |
| Weight: | 0.8 kg |
Product information for LevelOne FSW-0513:
| Certificates | |
| Certification | FCC, CE |
| Data transmission | |
| Switching capacity | 1 Gbit/s |
| MAC address table | 1024 entries |
| Packet forwarding rate (100 Mbps) | 14800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Store-and-forward | |
| Design | |
| Product colour | Black, Grey |
| LED indicators | Uplink, LAN, PoE, Power |
| Rack mounting | |
| Stackable | |
| On/off switch | |
| Logistics data | |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5 |
| 10G support | |
| Full duplex | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC |
| Manual | |
| Packaging data | |
| Package width | 232 mm |
| Package depth | 148 mm |
| Package height | 80 mm |
| AC adapter included | |
| Performance | |
| Buffer size | 48 KB |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Power | |
| Output voltage | 56 V |
| Output current | 2.15 A |
| Power consumption (typical) | 120 W |
| Power protection features | Over current, Short circuit |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 52 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 90 mm |
| Height | 28 mm |
| Weight | 800 g |
Questions & answers
What is the delivery time of LevelOne FSW-0513 4 Ports Ethernet Switch - 4 x PoE Ports - 10/100Base-TX - Uplink Port?
The article LevelOne FSW-0513 4 Ports Ethernet Switch - 4 x PoE Ports - 10/100Base-TX - Uplink Port is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne FSW-0513 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne FSW-0513 4 Ports Ethernet Switch - 4 x PoE Ports - 10/100Base-TX - Uplink Port always at the best possible price. We can give you a discount of 2% on LevelOne FSW-0513 4 Ports Ethernet Switch - 4 x PoE Ports - 10/100Base-TX - Uplink Port if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
