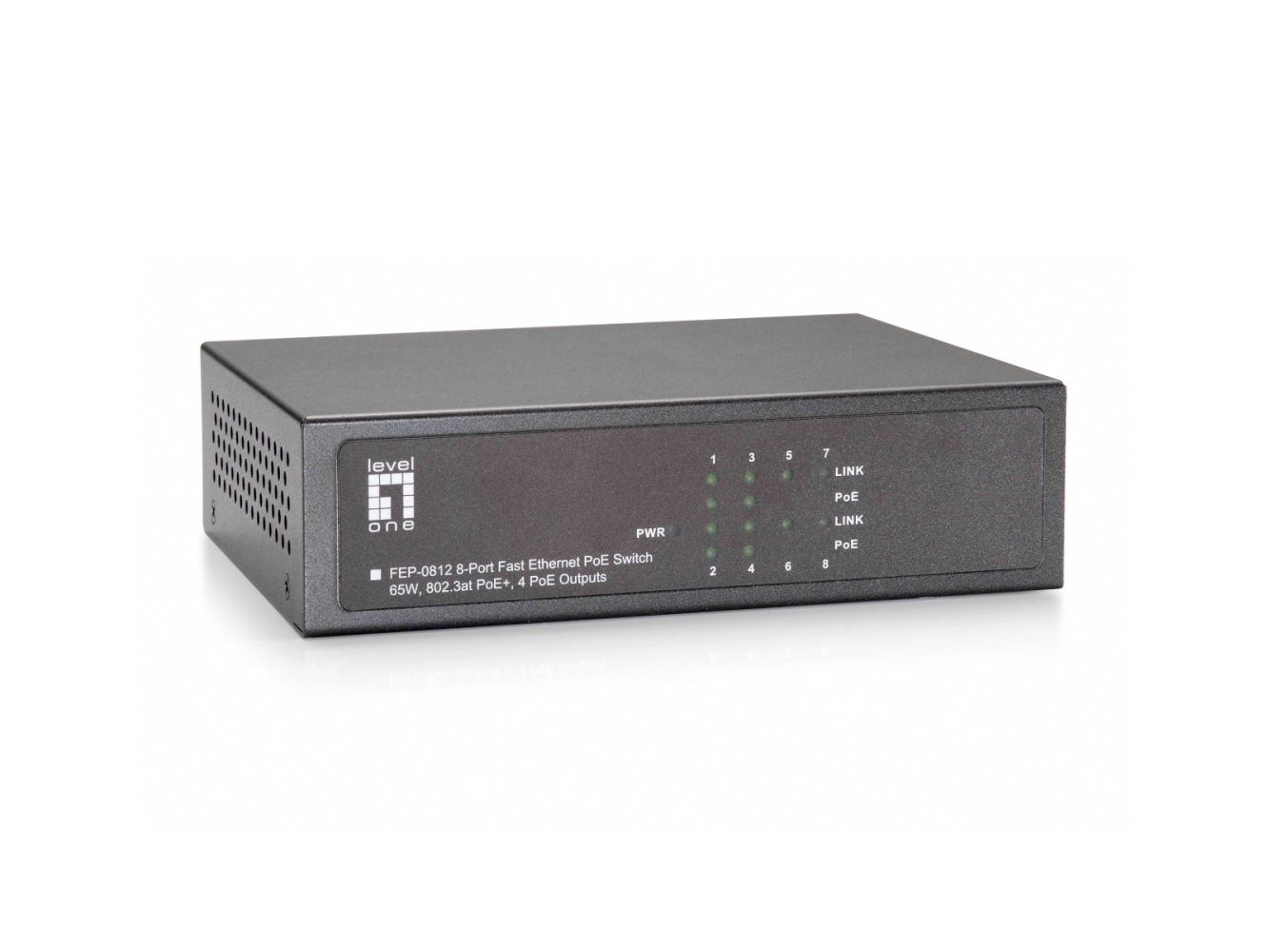

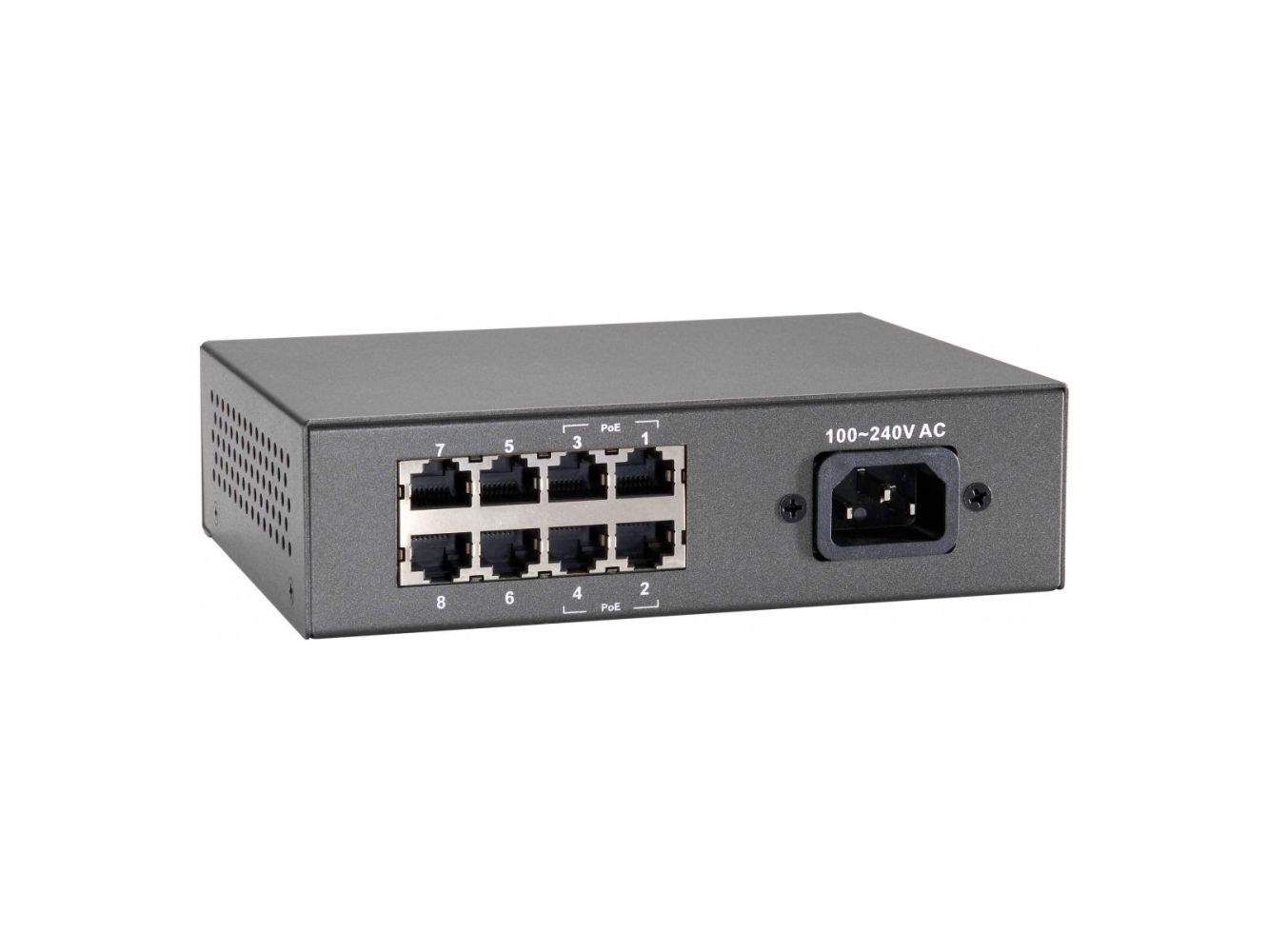

LevelOne FEP-0812 8 Ports Ethernet Switch - 8 x Fast Ethernet Network - 2 Layer Supported
|
140,12 EUR |
|
|
( 166,74 EUR incl. VAT ) ≈ £117.28 | ≈ $156.79 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 706108 |
| Mfg Part No: | FEP-0812 |
| UPC/EAN: | 4015867165072 |
| Weight: | 0.8 kg |
Product information for LevelOne FEP-0812:
| Certificates | |
| Certification | FCC, CE, RoHS |
| Data transmission | |
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 0.1488 Mpps |
| MAC address table | 1024 entries |
| Packet forwarding rate (100 Mbps) | 148000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Store-and-forward | |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, LAN, PoE, Power |
| Rack mounting | |
| Stackable | |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Multicast features | |
| Multicast MAC address table | 1000 entries |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| 10G support | |
| Full duplex | |
| Flow control support | |
| Auto MDI/MDI-X | |
| Auto-negotiation | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC |
| Quick start guide | |
| Packaging data | |
| Package type | Box |
| Package width | 145 mm |
| Package depth | 80 mm |
| Package height | 235 mm |
| Package weight | 1.1 kg |
| Performance | |
| Buffer size | 64 KB |
| Plug and Play | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 65 W |
| Power protection features | Over current, Short circuit |
| Power supply included | |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) | |
| Weight & dimensions | |
| Width | 122 mm |
| Depth | 44 mm |
| Height | 160 mm |
| Weight | 800 g |
