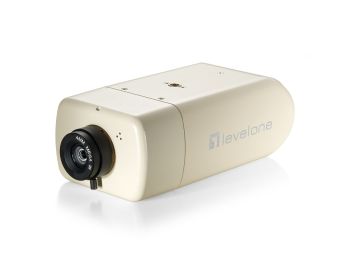

LevelOne IPCam HDR Box Fix In 2MP/H.264/IR/ 5W/PoE/
|
300,73 EUR |
|
|
( 357,87 EUR incl. VAT ) ≈ £251.71 | ≈ $336.52 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 249174 |
| Mfg Part No: | FCS-1131 |
| Weight: | 0.4 kg |
| Audio | |
| Audio system | 2-way |
| Voice codecs | G.711, G.726 |
| Built-in microphone | |
| Camera | |
| Minimum illumination | 0.02 lx |
| Lens viewing angle, horizontal | 65.4° |
| White balance | Auto |
| Camera shutter type | Electronic |
| Camera shutter speed | 1 - 1/10000 s |
| Design | |
| Form factor | Box |
| Mounting type | Ceiling/wall |
| Product colour | Beige |
| LED indicators | Activity, Link, Power |
| Image sensor | |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Progressive scan | |
| Lens system | |
| Digital zoom | 8x |
| Focus adjustment | 1.5 |
| Fixed focal length | 4 mm |
| Zoom capability | |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| Management features | |
| Reset button | |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Supported network protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | |
| AC adapter included | |
| Quick installation guide | |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 120 mm |
| Package height | 220 mm |
| Package weight | 900 g |
| Performance | |
| Type | IP security camera |
| Connectivity technology | Wired |
| Certification | CE, FCC, ONVIF |
| PTZ control | |
| Wide Dynamic Range (WDR) | |
| Day/night mode | |
| Infrared (IR) cut-off filter | |
| Alarm input/output | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| BNC output ports | 1 |
| Headphone outputs | 1 |
| Interface | RJ-45 |
| Microphone in | |
| Terminal block port | |
| DC-in jack | |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) | |
| Security | |
| Password protection type | User |
| IP address filtering | |
| HTTPS encryption | |
| Motion sensor | |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Maximum memory card size | 32 GB |
| Built-in HDD | |
| Card reader integrated | |
| System requirements | |
| Windows operating systems supported | Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Pre |
| Technical details | |
| Back light compensation method | Y |
| Number of video streams | 2 |
| Iris | |
| Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | AVI |
| Video compression formats | H.264, M-JPEG |
| Supported graphics resolutions | 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Video streaming | |
| Noise reduction | |
| 3D NR (Noise Reduction) | |
| Automatic gain control | |
| Full HD | |
| Flip & mirror | |
| Portrait mode | |
| Privacy masking | |
| Time stamp overlay | |
| Text caption overlay | |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 53 mm |
| Height | 82 mm |
| Weight | 380 g |
Questions & answers
What is the delivery time of LevelOne IPCam HDR Box Fix In 2MP/H.264/IR/ 5W/PoE/?
The article LevelOne IPCam HDR Box Fix In 2MP/H.264/IR/ 5W/PoE/ is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of LevelOne FCS-1131 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you LevelOne IPCam HDR Box Fix In 2MP/H.264/IR/ 5W/PoE/ always at the best possible price. We can give you a discount of 2% on LevelOne IPCam HDR Box Fix In 2MP/H.264/IR/ 5W/PoE/ if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
