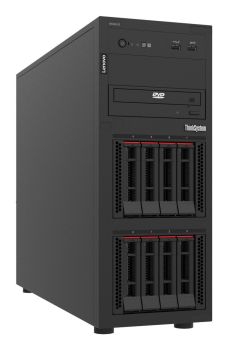

Lenovo 7DCEA04WEA ISG ThinkSystem ST250 V3 1xIntel Xeon 6353P 8C 2.7GHz 65W 1x16GB 1Rx8 SW RD 1x800W 3.5inch Chassis Base
|
3.516,81 EUR |
|
|
( 4.185,00 EUR incl. VAT ) ≈ £2,936.54 | ≈ $3,942.34 plus delivery charges: 235,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 998098 |
| Mfg Part No: | 7DCEA04WEA |
| Weight: | 25 kg |
| Type: | SYST |
Further Tower-Server-Systems from LenovoFurther products in category Tower-Server-Systems
All products of Lenovo
Product information for Lenovo 7DCEA04WEA:
The Lenovo ThinkSystem ST250 V3 is a tower server of the ThinkSystem series, designed for use in small and medium-sized enterprises, branches, banks, and the public sector. The system is based on an Intel® Xeon® processor of the 6353P series and is designed for operation in stationary environments. It features an 8-core processor with a base clock speed of 2.7 GHz and a boost clock speed of 5.4 GHz, providing balanced performance for office applications, file servers, virtual work environments, and small database applications. The processor includes a 24 MB L3 cache, which enhances efficiency for parallel tasks. The system supports the Intel Xeon E-2400 series, which is based on the Raptor Lake architecture.
Applications
The ST250 V3 is suitable for use in decentralized locations where a robust, maintenance-friendly server solution is required. The combination of tower design and rack-mount capability offers flexibility in installation. Support for operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi makes the server suitable for various IT environments, particularly for companies relying on virtualization and hybrid infrastructures.
Features and Specifications in Detail
The system is equipped with 16 GB DDR5-SDRAM RAM, installed in one DIMM slot, with a total of four DIMM slots available. The memory clock speed is 4800 MHz, enabling fast data processing. The maximum RAM capacity of the system is 128 GB, allowing for scalability to meet future requirements. The memory supports ECC (Error-Correcting Code), which enhances data security by automatically correcting errors in the working memory.
Technology Explained Simply
The server features four internal drive bays in 3.5-inch format, equipped with hot-swap functionality, allowing for quick replacement of hard drives without system restart. Supported interfaces include SAS and SATA, enabling flexible integration of various storage media. The integrated graphics solution offers a maximum graphics memory of 16 MB and is sufficient for basic applications such as system maintenance and remote administration.
Compatibility and Accessories
The server supports installation of operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi. Network connectivity is provided via two RJ-45 Ethernet ports with Gigabit Ethernet technology (10/100/1000Base-T(X)), controlled by a Broadcom 5720 controller. This ensures a stable and fast network connection for local networks and remote administration.
Mounting and Installation
The housing is in tower format and has dimensions of 176 mm (width) × 444 mm (height) × 578 mm (depth). It is designed for use on a desk or in a server room. Installation requires no special tools, with hot-swap drives simply inserted into designated slots. The power supply is 800 W and supports redundant power supply, thereby increasing system availability. The power supply is 80 PLUS Platinum certified, guaranteeing high efficiency and energy performance.
Operational Advantages
The server provides a stable platform with integrated performance management via XCC Platinum, enabling centralized monitoring and control. The integrated Trusted Platform Module (TPM) version 2.0 supports secure authentication and encryption, which is important for protecting sensitive data. Operating conditions include a temperature range of 5 to 45 °C and relative humidity of 8 to 90 %, allowing the server to operate in typical office and server environments. Storage is possible at temperatures from -40 to 60 °C and relative humidity of 8 to 90 %.
Connectors and Interfaces
For connecting peripheral devices, five USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports, one USB 2.0 port, one VGA (D-Sub) port, and one serial port are available. These interfaces enable connection of monitors, keyboards, mice, and other devices for maintenance and configuration purposes.
Operating System Support
Compatibility with common operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi enables flexible use in various IT environments. The systems can be used for both physical server workloads and virtualization platforms.
Energy Efficiency and Operational Reliability
The 800-watt power supply is 80 PLUS Platinum certified, ensuring high energy efficiency and low power loss. Support for redundant power supply increases server availability, especially in critical application scenarios. Operating conditions are designed for indoor use, with a maximum operating altitude of 3050 meters.
Design and Form Factor

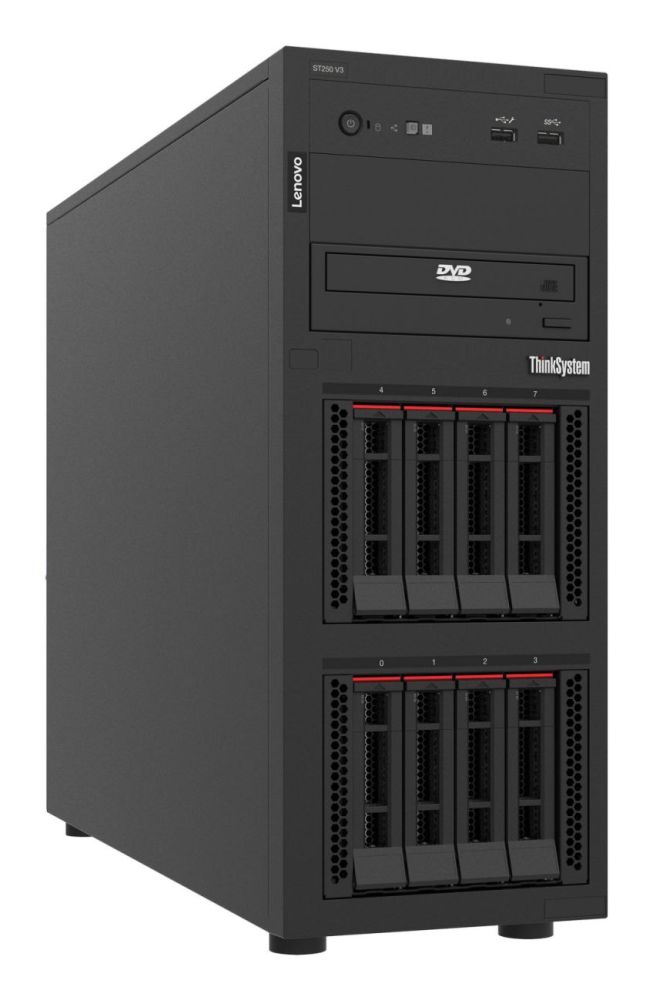

The housing is black and in tower format. The form factor allows for flexible placement, whether on a desk or in a server room. The front side provides access to the hot-swap drives, while the rear side includes the network and USB connectors.
Applications
The ST250 V3 is suitable for use in decentralized locations where a robust, maintenance-friendly server solution is required. The combination of tower design and rack-mount capability offers flexibility in installation. Support for operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi makes the server suitable for various IT environments, particularly for companies relying on virtualization and hybrid infrastructures.
Features and Specifications in Detail
The system is equipped with 16 GB DDR5-SDRAM RAM, installed in one DIMM slot, with a total of four DIMM slots available. The memory clock speed is 4800 MHz, enabling fast data processing. The maximum RAM capacity of the system is 128 GB, allowing for scalability to meet future requirements. The memory supports ECC (Error-Correcting Code), which enhances data security by automatically correcting errors in the working memory.
Technology Explained Simply
The server features four internal drive bays in 3.5-inch format, equipped with hot-swap functionality, allowing for quick replacement of hard drives without system restart. Supported interfaces include SAS and SATA, enabling flexible integration of various storage media. The integrated graphics solution offers a maximum graphics memory of 16 MB and is sufficient for basic applications such as system maintenance and remote administration.
Compatibility and Accessories
The server supports installation of operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi. Network connectivity is provided via two RJ-45 Ethernet ports with Gigabit Ethernet technology (10/100/1000Base-T(X)), controlled by a Broadcom 5720 controller. This ensures a stable and fast network connection for local networks and remote administration.
Mounting and Installation
The housing is in tower format and has dimensions of 176 mm (width) × 444 mm (height) × 578 mm (depth). It is designed for use on a desk or in a server room. Installation requires no special tools, with hot-swap drives simply inserted into designated slots. The power supply is 800 W and supports redundant power supply, thereby increasing system availability. The power supply is 80 PLUS Platinum certified, guaranteeing high efficiency and energy performance.
Operational Advantages
The server provides a stable platform with integrated performance management via XCC Platinum, enabling centralized monitoring and control. The integrated Trusted Platform Module (TPM) version 2.0 supports secure authentication and encryption, which is important for protecting sensitive data. Operating conditions include a temperature range of 5 to 45 °C and relative humidity of 8 to 90 %, allowing the server to operate in typical office and server environments. Storage is possible at temperatures from -40 to 60 °C and relative humidity of 8 to 90 %.
Connectors and Interfaces
For connecting peripheral devices, five USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports, one USB 2.0 port, one VGA (D-Sub) port, and one serial port are available. These interfaces enable connection of monitors, keyboards, mice, and other devices for maintenance and configuration purposes.
Operating System Support
Compatibility with common operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi enables flexible use in various IT environments. The systems can be used for both physical server workloads and virtualization platforms.
Energy Efficiency and Operational Reliability
The 800-watt power supply is 80 PLUS Platinum certified, ensuring high energy efficiency and low power loss. Support for redundant power supply increases server availability, especially in critical application scenarios. Operating conditions are designed for indoor use, with a maximum operating altitude of 3050 meters.
Design and Form Factor
The housing is black and in tower format. The form factor allows for flexible placement, whether on a desk or in a server room. The front side provides access to the hot-swap drives, while the rear side includes the network and USB connectors.
| Certificates | |
| 80 PLUS certification | 80 PLUS Platinum |
| Design | |
| Chassis type | Tower |
| Product colour | Black |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | |
| Memory | |
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 128 GB |
| ECC | |
| Network | |
| LAN controller | Broadcom 5720 |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Performance | |
| Performance management | XCC Platinum |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Power | |
| Power supply | 800 W |
| Number of redundant power supplies supported | 1 |
| Redundant power supply (RPS) support | |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® |
| Processor model | 6353P |
| Processor frequency | 2.7 GHz |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Processor cores | 8 |
| Processor cache | 24 MB |
| Number of processors installed | 1 |
| Software | |
| Compatible operating systems | Microsoft Windows Server Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Storage | |
| Internal drive bays | 4 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Hot-swap | |
| Technical details | |
| Supported storage drives form factor (rear) | 3.5" |
| Weight & dimensions | |
| Width | 176 mm |
| Depth | 578 mm |
| Height | 444 mm |
