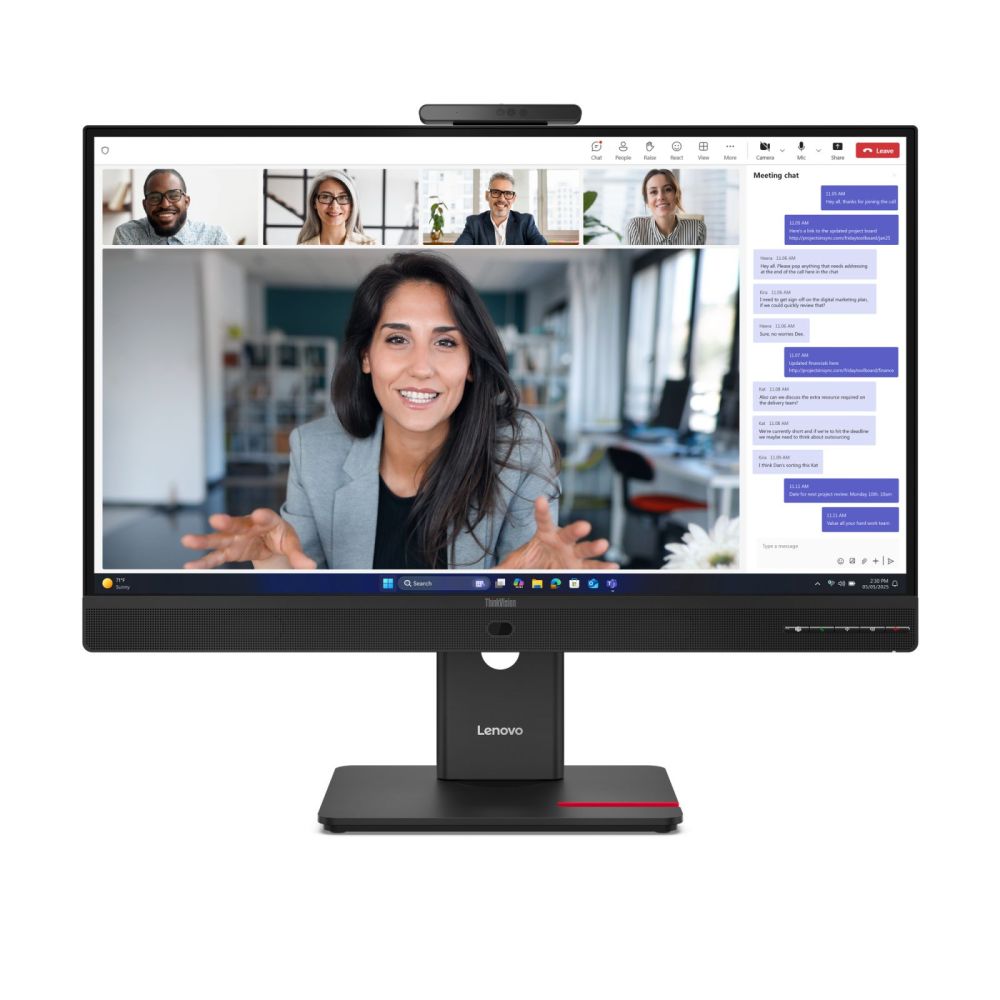

LENOVO ThinkVision T24-4v 23.8inch IPS FHD 16:9 120Hz 250 cd/m2 4ms HDMI DP VGA content_copy

The Lenovo ThinkVision T24-4v is a 24-inch office monitor with a screen diagonal of 60.5 cm (23.8 inches) and a Full HD resolution of 1920 x 1080 pixels. It is based on LCD technology with an IPS panel and is specifically designed for office use and video conferencing. The display offers a brightness of 250 cd/m², a contrast ratio of 1500:1, and a response time of 6 ms (GTG) in normal mode and 4 ms in fast mode. The maximum refresh rate is 120 Hz, with variable frequency adjustable between 48 Hz and 120 Hz, ensuring smooth image reproduction for dynamic content. The viewing angles are 178° horizontally and vertically, ensuring consistent image quality from various positions. The display covers 99 % of the sRGB color space and offers an 8-bit color depth, providing natural and vibrant colors. The pixel density is 93 ppi, ensuring sharp display at the specified resolution.

Applications

The monitor is primarily designed for office use and is particularly suitable for video conferencing. The integrated 5-megapixel camera enables sharp video transmission, while the two built-in speakers with an RMS power of 6 W (2x 3 W) deliver clear stereo sound. An integrated microphone supports communication. The Low-Blue-Light technology reduces blue light emission, which can help reduce eye strain. The infrared (IR) sensor function supports remote control operation. The monitor is compatible with Windows 10, Windows 11, and Mac operating systems.

Features and Equipment in Detail

The ThinkVision T24-4v features an integrated USB hub, enabling connection of multiple devices. It includes one USB Type-B upstream port, one USB-C downstream port, and two USB-A downstream ports. However, the USB-C port does not support USB Power Delivery or DisplayPort Alternate Mode. Additionally, it has one VGA port (D-Sub), one HDMI port (version 1.4), and one DisplayPort port (version 1.2). A 3.5 mm headphone jack is also integrated. Cable management is supported by an enhanced cable management feature and a cable lock slot (Kensington).

Technology Explained Simply

The IPS panel provides high color accuracy and wide viewing angles, which is particularly beneficial when using multiple monitors or shared workspaces. The LED backlighting (W-LED) ensures uniform brightness and energy efficiency. The variable refresh rate allows adaptation to different applications, such as video playback or graphic programs. The 4 ms response time in fast mode minimizes motion blur during fast movements. The energy efficiency class D (SDR) meets the standard for monitors in this category, with a power consumption of 14 W in standard operation. The internal power supply supports an input voltage of 100–240 V and a frequency of 50/60 Hz.

Compatibility and Accessories

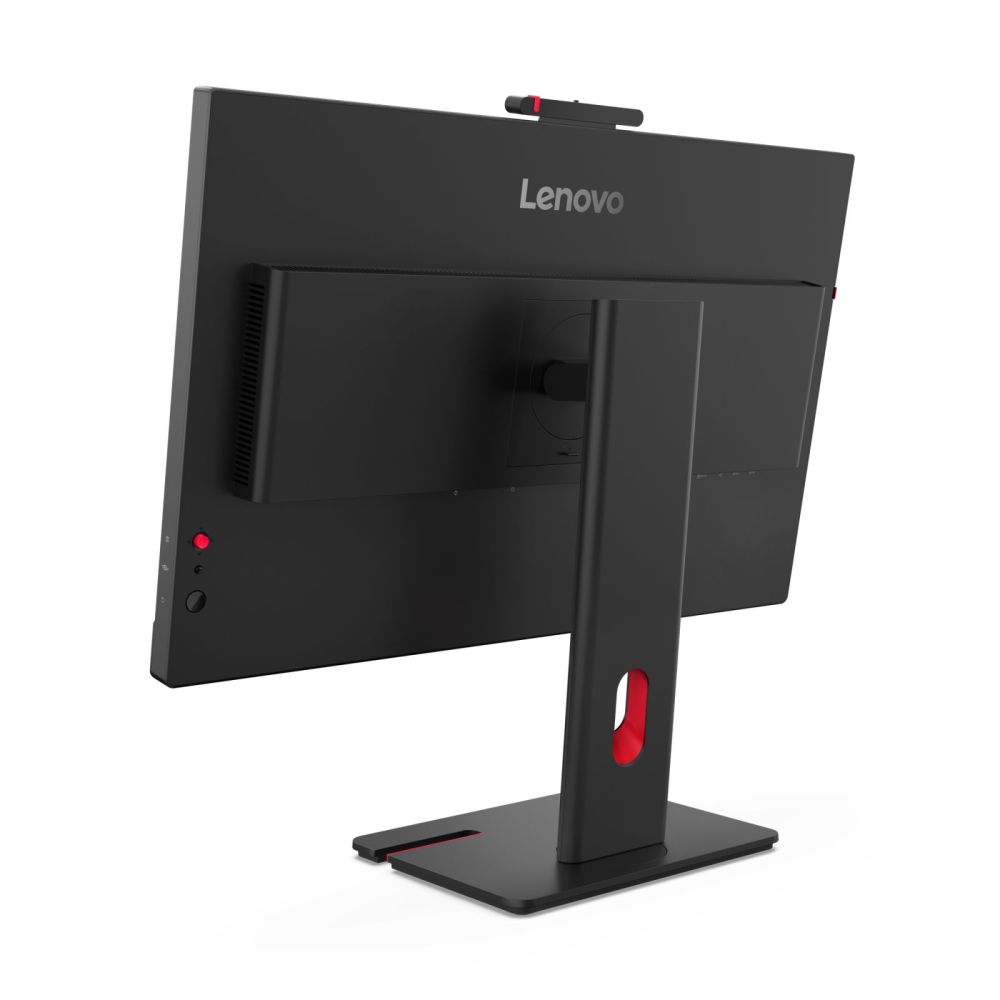

The monitor is equipped with a VESA mounting interface (100 x 100 mm), enabling installation on wall mounts or monitor stands. The height adjustment is up to 15.5 cm, the pivot function allows rotation from -90° to +90°, the swivel function from -45° to +45°, and the tilt adjustment from -5° to +23.5°. These features support ergonomic workspace design. The camera, speakers, and microphone are directly integrated into the monitor, keeping the workspace tidy.

Installation and Mounting

Installation is done via the integrated stand or the VESA interface. The height adjustment, pivot, and swivel functions allow individual adaptation to the workspace. Cable management is supported by integrated cable channels and the Kensington slot. Installation requires no additional tools, as it is performed using the provided mechanisms.

Operational Advantages

The monitor offers high flexibility through its diverse connectivity options and ergonomic adjustments. The integrated audio and video functions reduce the need for additional devices. The Low-Blue-Light technology and glare-free surface contribute to reducing eye strain. The variable refresh rate and high image quality ensure smooth and sharp display, which is particularly beneficial for video conferencing and graphic-intensive applications. The energy efficiency class D meets the standard for office equipment of this size.

Scope of Delivery

The monitor is delivered with a power cable (1.8 m), an HDMI 2.0 cable (1.8 m), a USB Type-B to Type-A cable (Gen 1, 1.8 m, 5 Gbit/s), and a quick start guide. The mentioned cables are sufficient for basic setup. The integrated functions such as camera, speakers, and microphone are already built into the device and require no additional components.

Design
Market positioning	Office
Product colour	Black
Colour name	Eclipse black
Front bezel colour	Black
Feet colour	Black
Display
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9
Display technology	LCD
Panel type	IPS
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	6 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Contrast ratio (typical)	1500:1
Contrast ratio (dynamic)	3000000:1
Maximum refresh rate	120 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Response time (fast)	4 ms
Pixel pitch	0.2745 x 0.2745 mm
Pixel density	93 ppi
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Colour depth	8 bit
Colour gamut	99%
sRGB coverage (typical)	99%
LED backlight
Touchscreen
Anti-glare screen
Ergonomics
Panel mounting interface	100 x 100 mm
Cable lock slot type	Kensington
Adjustable height (max)	15.5 cm
Pivot angle	-90 - 90°
Swivel angle range	-45 - 45°
Tilt angle range	-5 - 23.5°
VESA mounting
Cable management
Cable lock slot
Height adjustment
Pivot
Swivelling
Tilt adjustment
LED indicators
Multimedia
Number of speakers	2
RMS rated power	6 W
Megapixel (approx.)	5 MP
Built-in speaker(s)
Built-in microphone
Built-in camera
Network
Ethernet LAN
Other features
Warranty period	3 year(s)
Video colour modes	BT.709
Certification	EU Energy Label (D-class) TCO Certified, generation 10 TCO Edge 2.1 Eyesafe Certified 2.0 TÜV Rheinland Eye Comfort Certification (5-star) TÜV Rheinland Low Blue Light (Hardware Solution)
Packaging content
Cables included	HDMI, USB Type-A to USB Type-B
HDMI cable length	1.8 m
Stand included
Quick start guide
Packaging data
Package width	730 mm
Package depth	111 mm
Package height	450 mm
Package weight	7.7 kg
USB cable length	1.8 m
Performance
Windows operating systems supported	Windows 10, Windows 11
NVIDIA G-SYNC
AMD FreeSync
Low Blue Light technology
Infrared (IR) sensor
Mac operating systems supported
Ports & interfaces
USB upstream port type	USB Type-B
Number of upstream ports	1
Number of downstream ports	2
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	1
USB Type-C downstream ports quantity	1
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Built-in USB hub
USB Type-C DisplayPort Alternate Mode
USB Power Delivery (USB PD)
HDMI
Headphone out
Power
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	14 kWh
Power consumption (typical)	14 W
Power consumption (standby)	0.5 W
Power consumption (max)	64 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Gold
Weight & dimensions
Width (with stand)	539.8 mm
Depth (with stand)	190 mm
Height (with stand)	540.2 mm
Weight (with stand)	5.3 kg
Width (without stand)	539.8 mm
Depth (without stand)	50 mm
Height (without stand)	362.7 mm
Weight (without stand)	3.2 kg
Bezel width (side)	2 mm
Bezel width (top)	2 mm
Bezel width (bottom)	4.08 cm

---
