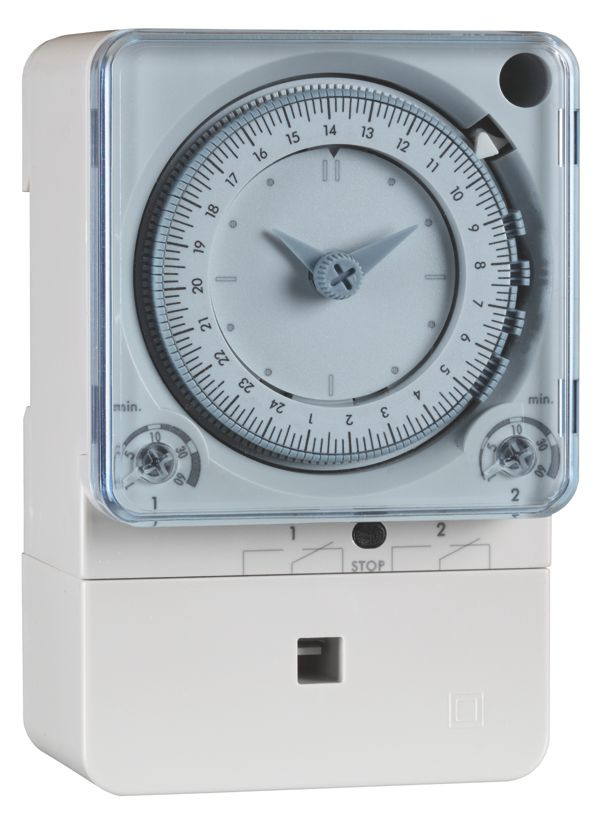

Legrand 049926 Analog time switch 49926 POLARREX KKT

Your rating:
Average rating
product review for Legrand 049926 Analog time switch 49926 POLARREX KKT
( 4.4 / 5 ) 38 ratings
Legrand 049926
This image may differ from the desired article.
121,55 EUR
( 144,64 EUR incl. VAT )
≈ £101.74  |  ≈ $133.58
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 1 pieces
1x Legrand 049926 Analog time switch 49926 POLARREX KKT
Lieske Part No.:114149
Mfg Part No: 049926
UPC/EAN: 4010957499266
Weight:0.241 kg
Type:49926
Graduated prices net
From piecesPrice per pieces
5116,99 EUR
10112,43 EUR
15107,88 EUR
20103,32 EUR

Product information for Legrand 049926:

The Legrand PolaRex KKT, type 49926, is an analogue time switch for use in electrical installations. It features a synchronous motor, ensuring network-synchronised timing accuracy, and is designed for operation at 230 V, 50 Hz. The time switch is designed for two channels and enables time-controlled operation of two independent loads. It is suitable for applications requiring a daily, repeating switching sequence, for example in lighting systems, heating controls, or industrial automation.

Applications

The time switch is intended for indoor use and can be mounted on a support rail in accordance with EN 60715 or installed surface-mounted. Dimensions are 113.7 mm in height and 72 mm in width, making it suitable for standard installation enclosure configurations. The daily disc allows visual programming of switching times over a 24-hour cycle. The time switch is designed for operation in electrical systems with a supply voltage of 230 V 50 Hz.

Functions and Equipment in Detail

The time switch features adjustable short-time programmes, with switching times adjustable between 1 and 60 minutes. The shortest switching sequence, i.e. the time interval between the start of one switching time and the start of the next, is 30 minutes. This enables flexible, yet non-continuous, control of loads. The switching outputs consist of two changeover contacts, each enabling a switching operation for one load. The daily disc serves for visual representation and programming of switching times.

Technology Explained Simply

The synchronous motor of the time switch is connected to the power grid and synchronises with the 50 Hz frequency. This achieves high timing accuracy, independent of external time sources. The analogue time switching is performed via mechanical components that move the daily disc in a 24-hour rhythm. Switching operations are triggered by the position of the daily disc and the set switching times. The time switch is not battery-operated and requires no additional power supply other than the operating voltage of 230 V.

Compatibility and Accessories

The time switch is designed for mounting on a support rail in accordance with EN 60715, enabling standard installation in electrical enclosures. Alternatively, it can also be installed surface-mounted. The switching outputs (2 changeover contacts) are designed for controlling loads in the electrical network.

Installation and Mounting

Mounting is either on a support rail in accordance with EN 60715 or in a surface-mounted installation. Dimensions of 113.7 mm (height) and 72 mm (width) correspond to common size standards for modular installation devices. The time switch must be connected to a 230 V 50 Hz mains supply. The switching outputs are configured as changeover contacts, enabling flexible wiring of loads.

Operational Advantages

The time switch provides reliable, mechanical time control without dependence on electronic or battery-operated components. The network-synchronised timing accuracy ensures high precision of switching times. Simple operation via the daily disc and adjustable short-time programmes allow flexible adaptation to various applications. The time switch is designed for use in electrical systems with 230 V 50 Hz and requires no additional power supply.

General
Operating voltage230 V
Frequency50 Hz
Number of channels2
Switching time1 to 60 minutes
Shortest switching sequence30 minutes
Switching output2 change-over contacts
Mounting methodEN 60715 rail or surface mounting
Motor typeSynchronous motor
Gear accuracysynchronous with mains


Questions & answers

What is the delivery time of Legrand 049926 Analog time switch 49926 POLARREX KKT?

The article Legrand 049926 Analog time switch 49926 POLARREX KKT is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Legrand 049926 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Legrand 049926 Analog time switch 49926 POLARREX KKT always at the best possible price. We can give you a discount of 2% on Legrand 049926 Analog time switch 49926 POLARREX KKT if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Legrand 049926 Analog time switch 49926 POLARREX KKT we can offer you a price of 116,99 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
