Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure

Your rating:
Average rating
product review for Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure
( 4.5 / 5 ) 66 ratings
Lapp 4571198

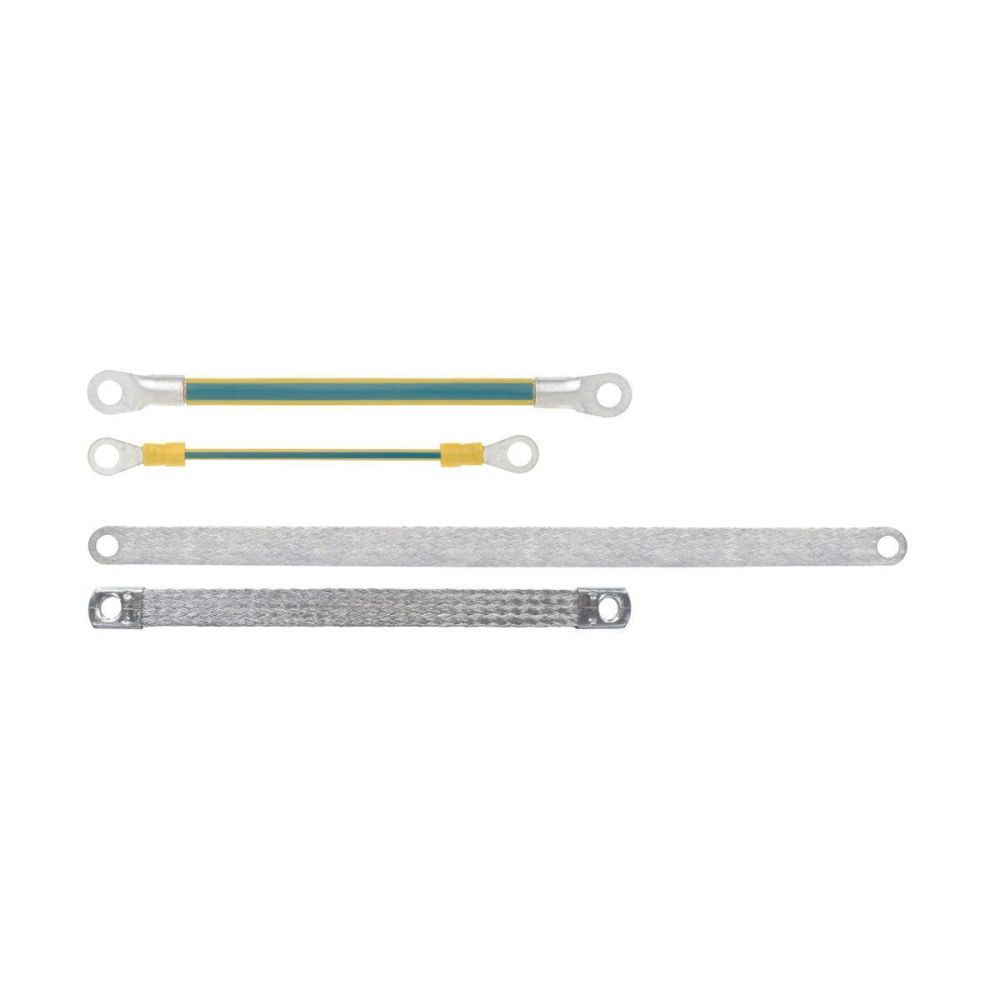

This image may differ from the desired article.
Lapp 4571198Lapp 4571198
237,46 EUR
incl. 20,86 EUR copper surcharge
( 282,58 EUR incl. VAT )
≈ £198.75  |  ≈ $260.97
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 25 pieces
1x Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure
Lieske Part No.:554885
Mfg Part No: 4571198
UPC/EAN: 4044777317363
Weight:2.325 kg
Type:Erdungsband 1x16/M6/500mm GN/YE
Graduated prices net
From piecesPrice per pieces
5235,84 EUR
10234,21 EUR
15232,59 EUR
20230,96 EUR

Product information for Lapp 4571198:

The earthing strap of the brand Lapp, type 1x16/M6/500mm GN/YE, is a component specifically designed for use in enclosure construction for safe protective earthing. It serves as a connecting element between electrical devices, enclosures, and the earthing system, ensuring a safe discharge path for fault currents in the event of a fault. Protective earthing is a mandatory measure according to applicable standards to prevent electrical hazards. The strap is finished in green-yellow, which according to DIN VDE 0100-510 is the designated marking for protective conductors, enabling clear identification in plant construction.

Applications

The earthing strap is primarily used in the field of enclosure construction, where reliable and durable earthing of electrical components is required. It is suitable for connecting enclosure housings, power electronics, control systems, and other electrical assemblies to the plant’s earthing system. Its use in industrial environments, such as manufacturing automation or power supply, is typical, as these areas demand high safety requirements for electrical installations.

Functions and Equipment in Detail

The earthing strap features a cross-sectional area of 16 mm², ensuring sufficient current discharge for fault currents. The total length is 500 mm, allowing flexible use in various enclosure configurations. At both ends, the strap is fitted with M6 threads, enabling secure mechanical fastening to corresponding screw connection points. The green-yellow colouring corresponds to the international marking for protective conductors and supports compliance with safety regulations.

Technology Explained Simply

The function of the earthing strap is based on discharging fault currents via a low-impedance conductor path to earth. In the event of an insulation fault in the electrical system, the fault current flows through the earthing strap, minimizing the risk of electric shock to personnel or damage to equipment. The cross-sectional area of 16 mm² ensures that even under high fault currents, no overheating or mechanical damage to the strap occurs. The M6 threaded connections allow for a secure and durable connection that remains stable even under mechanical stress.

Compatibility and Accessories

The earthing strap is designed for use in enclosures equipped with corresponding M6 screw connection points. It can be combined with other earthing elements, such as earthing rails or earthing terminals, to create a complete earthing system. The standardized green-yellow colouring enables clear identification with the protective conductor, supporting compliance with standards such as DIN VDE 0100-510.

Installation and Mounting

Installation is carried out by screw connection at the designated earthing points within the enclosure. The M6 threaded connections require a suitable screwdriver or electric screwdriver. The fastening must be tight and without play to ensure a low-impedance connection. The total length of 500 mm allows flexible positioning within the enclosure, with the connection path ideally kept as short and straight as possible to minimize impedance.

Advantages in Operation

The earthing strap provides a reliable and durable earthing solution that enhances operational safety. The standardized green-yellow colouring facilitates identification and maintenance. The robust construction with a 16 mm² cross-section and M6 threads ensures long service life and high mechanical stability. Compliance with protective earthing standards is supported by the colouring and technical specifications, ensuring the plant’s conformity with legal requirements.

The item price shown refers to 25 pieces Lapp 4571198
General
Cross section16 mm²
Total length500 mm
ThreadM6
ColourGreen-yellow
ApplicationSwitchgear construction


Please note...
This article contains a copper surcharge of 20,86 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990

Questions & answers

What is the delivery time of Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure ?

The article Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 4571198 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure always at the best possible price. We can give you a discount of 2% on Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure we can offer you a price of 235,84 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Lapp 4571198 Earthing strap 1x16/M6/500 mm GN/YE green-yellow for enclosure is offered by us in a sales unit of 25 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
