Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2

Your rating:
Average rating
product review for Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2
( 4.6 / 5 ) 14 ratings
Lapp 26609996/4000

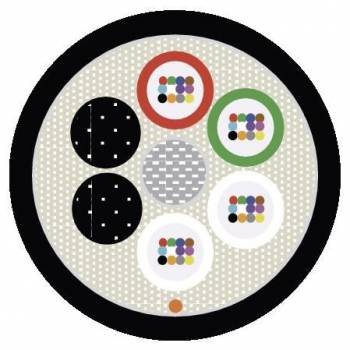

This image may differ from the desired article.
Lapp 26609996/4000Lapp 26609996/4000
15.874,12 EUR
( 18.890,20 EUR incl. VAT )
≈ £13,286.64  |  ≈ $17,445.66
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 4000 meters
1x Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2
Datasheet:file_download Download
Lieske Part No.:1328584
Mfg Part No: 26609996/4000
UPC/EAN: 4044776778769
Weight:0.123 kg
Type:HITRONIC HVN-Micro1200 8x12E 9/125 OS2
Graduated prices net
From piecesPrice per meters
215.755,06 EUR
415.636,01 EUR
615.516,95 EUR
815.397,90 EUR

Product information for Lapp 26609996/4000:

LWL cable HITRONIC® HVN-Mini1200 8x12E 9/125 OS2 4000 M, GOF, 96x OS2, A-Optical outdoor cable: A-DQ(ZN)2Y, fixed installation, glass yarns, polyethylene, black, Application areas: Installation type: for pulling and blowing into empty pipe systems (ducts), backbone area, FTTH applications, telecommunications network, for installations by blowing in, WAN connections, Benefits: Compact dimensions, suitable for blowing into empty pipe systems, UV-resistant, longitudinally and transversely watertight, no electromagnetic interference due to the metal-free cable

The item price shown refers to 4000 meters Lapp 26609996/4000
Certifications
Product standard according to IECIEC 60794
Flame retardance tested according to UN/ECE-R118no
Electrical characteristics
Wavelength informationfor 1310 nm applies 0.4 dB / km, for 1550 nm applies 0.4 dB / km
General information
BrandHITRONIC®
Product typeFibre optic cable
Weight42 kg/km
Fibre optic cable typeGOF
Fibre optic cable type, long designationGlass fibre
Product characteristics
Application areaFixed installation
Installation typeBlowing into empty pipe systems
Suitable for underground installationdirect
Minimum bending radius, stationary15 x outer diameter
Minimum bending radius in mm, fixed installation108 mm
Minimum bending radius, occasionally flexing20 x outer diameter
Minimum bending radius in mm, occasionally flexing144 mm
Tensile force fixed installation1,200 N
Temperature, fixed installation-30 °C to 70 °C max. conductor temperature
Temperature, fixed installation min-30 °C
Temperature, fixed installation max70 °C
Temperature, occasionally moved-5 °C to 50 °C max. conductor temperature
Temperature, occasionally moved min-5 °C
Temperature, occasionally moved max50 °C
Installation temperature min.-5 °C
Max. assembly temperature50 °C
Halogen-free according toIEC 60754-1
Maximum lateral pressure300 N/dm
Fibre optic cable, core typeLoose tube
Optical cable, insertOutdoor application
Optical cable, fibre categoryOS2
For permanent bendingno
For torsional loadno
Reelableno
For use in hazardous areasno
Flame-retardantno
UV-resistantyes
Halogen-freeyes
Oil-resistantno
PWIS-freeno
Longitudinally watertightyes
Laterally watertightyes
Fast Connect (FC) cableno
Product design
A optical outdoor cableA-DQ(ZN)2Y
Classification of fibre optic cableCable with stranded, gel-filled loose tubes
Number of cores8
Strain relief due toGlass yarns
Fibre typeSingle-mode fibre
Number of fibres96
Number of fibres per core12
Nominal outer diameter7.2 mm
Cable shapeRound
Fibre core diameter9 µm
Fibre sheath diameter125 µm
Diameter of primary coating242 µm
Basic material of the fibre coreGlass
Basic material of the fibre sheathGlass
Basic material of outer sheathPolyethylene
Basic material of outer sheath, short formPE
Outer sheath colourblack
Cable sheath RAL colourRAL 9005
Core identificationColours
With a solid-core sheathno


Product data sheet
Datasheet for Lapp 26609996/4000, EAN: 4044776778769

Questions & answers

What is the delivery time of Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2 ?

The article Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 26609996/4000 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2 always at the best possible price. We can give you a discount of 2% on Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 meters of Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2 we can offer you a price of 15.755,06 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Lapp 26609996/4000 HITRONIC HVN-Micro1200 8x12E 9/125 OS2 is offered by us in a sales unit of 4000 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
