Lapp 2210707/500 H01N2-D 1X150 welding cable

Your rating:
Average rating
product review for Lapp 2210707/500 H01N2-D 1X150 welding cable
( 4.2 / 5 ) 13 ratings
Lapp 2210707/500

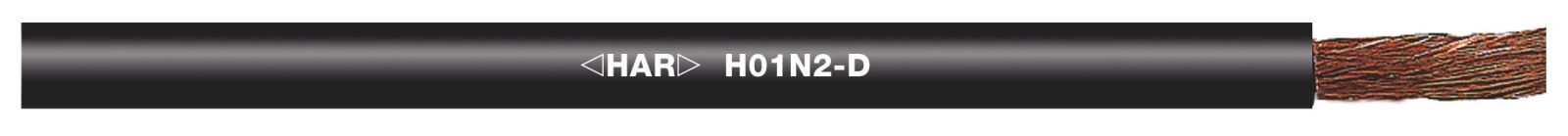

This image may differ from the desired article.
Lapp 2210707/500Lapp 2210707/500
16.599,70 EUR
incl. 7.645,81 EUR copper surcharge
( 19.753,64 EUR incl. VAT )
≈ £13,893.95  |  ≈ $18,243.07
Made to order · Delivery time approx. 20 workdaysinfo_outline
Sales unit: 500 meters
1x Lapp 2210707/500 H01N2-D 1X150 welding cable
Datasheet:file_download Download
Lieske Part No.:106948
Mfg Part No: 2210707/500
UPC/EAN: 4044774652610
Weight:1159.2 kg
Type:H01N2-D 1X150 SCHWEIßLEITUNG
Graduated prices net
From piecesPrice per meters
215.928,16 EUR
415.256,62 EUR
614.585,07 EUR
813.913,53 EUR

Product information for Lapp 2210707/500:

Connecting cable H01N2-D 1X150 500 M, connecting cable, 1X150, HAR-certified, U0/U: 100/100 V, rubber, flexible, areas of application: Can be used outdoors for a limited time, For connecting arc welding equipment and hand-held electrode holders up to 100 V nominal voltage, Flexible use possible at temperatures as low as -25 °C, Can be used in dry, damp and especially in rough and oily environments, Withstands high mechanical loads, For flexible use, free in the air, without tensile stress, Benefits: Manufactured according to the harmonized European design H01N2-D, with the HAR" marking for tested safety and quality, "HAR cables are widely accepted and used in Europe, Safe transmission of high currents thanks to flexible and robust cable construction

The item price shown refers to 500 meters Lapp 2210707/500
Certifications
EAC certification numberЕАЭС N RU Д-DE.АЮ64.В.00130/20, ЕАЭС N RU Д-DE.АЮ64.В.00142/20
Product standard DIN / ENEN 50525-2-81
CE markingyes
EAC-certifiedYes
UL recognizedno
UL listedno
cUR recognisedno
cUL listedno
CSA certifiedno
VDE certifiedno
HAR certifiedyes
Flame retardance tested according to UN/ECE-R118no
Electrical characteristics
Nominal voltageU0/U: 100/100 V AC rms according to IEC
Test voltage1 kV
Current rating according toVDE 0298-4
Max. conductor resistance at 20°C0.129 Ω/km
General information
Product typePower and control cable
Weight1590 kg/km
Copper index1440 kg/km
Industry segmentAgricultural & Farm Machinery, Automotive, Construction Machinery, Intralogistics, Lifts & Elevators, Machine tools, Processing Industries, Robotics
Product characteristics
Application areaFlexible, Fixed installation
Minimum bending radius, stationary6 x outer diameter
Minimum bending radius in mm, fixed installation139.2 mm
Minimum bending radius, occasionally flexing6 x outer diameter
Minimum bending radius in mm, occasionally flexing139.2 mm
Temperature, fixed installation-40 °C to 85 °C max. conductor temperature
Temperature, fixed installation min-40 °C
Temperature, fixed installation max85 °C
Temperature, occasionally moved-25 °C to 85 °C max. conductor temperature
Temperature, occasionally moved min-25 °C
Temperature, occasionally moved max85 °C
Installation temperature min.-20 °C
Storage temperature min.-20 °C
Max. storage temperature40 °C
Flame retardance according toIEC 60332-1-2
UV-resistant according toEN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
For torsional loadno
Flame-retardantyes
UV-resistantyes
Halogen-freeno
Oil-resistantyes
PWIS-freeno
Permanently immersible in waterno
Product design
Harmonised designH01N2-D
Cable dimensions1X150
Nominal conductor cross-section (metric)150 mm²
Conductor materialBare copper
Conductor designEN 50525-2-81 H01N2-D
Number of cores1
Min. outer diameter21.1 mm
Max. outer diameter23.2 mm
Cable shapeRound
Basic material of outer sheathRubber
Outer sheath colourblack
Including protective earthno
Shieldedno


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
This article contains a copper surcharge of 7.645,81 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Lapp 2210707/500, EAN: 4044774652610

Questions & answers

What is the delivery time of Lapp 2210707/500 H01N2-D 1X150 welding cable ?

The article Lapp 2210707/500 H01N2-D 1X150 welding cable is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Lapp 2210707/500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Lapp 2210707/500 H01N2-D 1X150 welding cable always at the best possible price. We can give you a discount of 2% on Lapp 2210707/500 H01N2-D 1X150 welding cable if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 meters of Lapp 2210707/500 H01N2-D 1X150 welding cable we can offer you a price of 15.928,16 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Lapp 2210707/500 H01N2-D 1X150 welding cable is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
