KOPP 141916019 angled plug PRCD-S IP44 230 V 16 A 30 mA 15 cm 300 cm H07RN-F 3 G 1.5 mm²

Your rating:
Average rating
product review for KOPP 141916019 angled plug PRCD-S IP44 230 V 16 A 30 mA 15 cm 300 cm H07RN-F 3 G 1.5 mm²
( 4.5 / 5 ) 73 ratings
KOPP 141916019
This image may differ from the desired article.
KOPP 141916019KOPP 141916019
385,17 EUR 401,39 EUR
( 458,35 EUR incl. VAT )
≈ £320.85  |  ≈ $422.53
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x KOPP 141916019 angled plug PRCD-S IP44 230 V 16 A 30 mA 15 cm 300 cm H07RN-F 3 G 1.5 mm²
Lieske Part No.:816132
Mfg Part No: 141916019
UPC/EAN: 4008224372251
Weight:2.38 kg
Type:141916019
Graduated prices net
From piecesPrice per pieces
4364,95 EUR
8344,73 EUR
12324,51 EUR
16304,28 EUR

Product information for KOPP 141916019:

The KOPP PRCD-S, type 141916019, is a 3-pole switching residual current circuit breaker with integrated protective conductor monitoring, specifically designed for use in areas with increased humidity or splashing water influence. The device features a protection rating of IP44, meaning it is dust- and splash-proof, making it suitable for indoor use as well as in damp environments such as workshops, garages, or outdoor areas. The PRCD-S is designed for an operating voltage of 230 V, a rated current of 16 A, and a frequency of 50 Hz. The rated residual current is 0.03 A (30 mA), corresponding to type A, ensuring rapid disconnection upon detection of a dangerous residual current.

Residual current circuit breaker with protective conductor monitoring
The PRCD-S continuously monitors the protective conductor (PE conductor) and disconnects the circuit if an interruption or high resistance in the protective conductor is detected. This increases operational safety, as a defective protective conductor can lead to dangerous touch voltages. The 3-pole switching ensures that all three conductors (L, N, PE) are disconnected simultaneously, guaranteeing a safe disconnection of the circuit.

Applications
The device is suitable for industrial, commercial, and private applications, particularly in environments with increased humidity or splashing water exposure. The IP44 protection rating makes it suitable for use in outdoor areas, workshops, garages, or kitchens where a certain degree of weather resistance is required. The integrated protective conductor monitoring is especially important in installations where safety depends on an intact earthing system.

Functions and equipment in detail

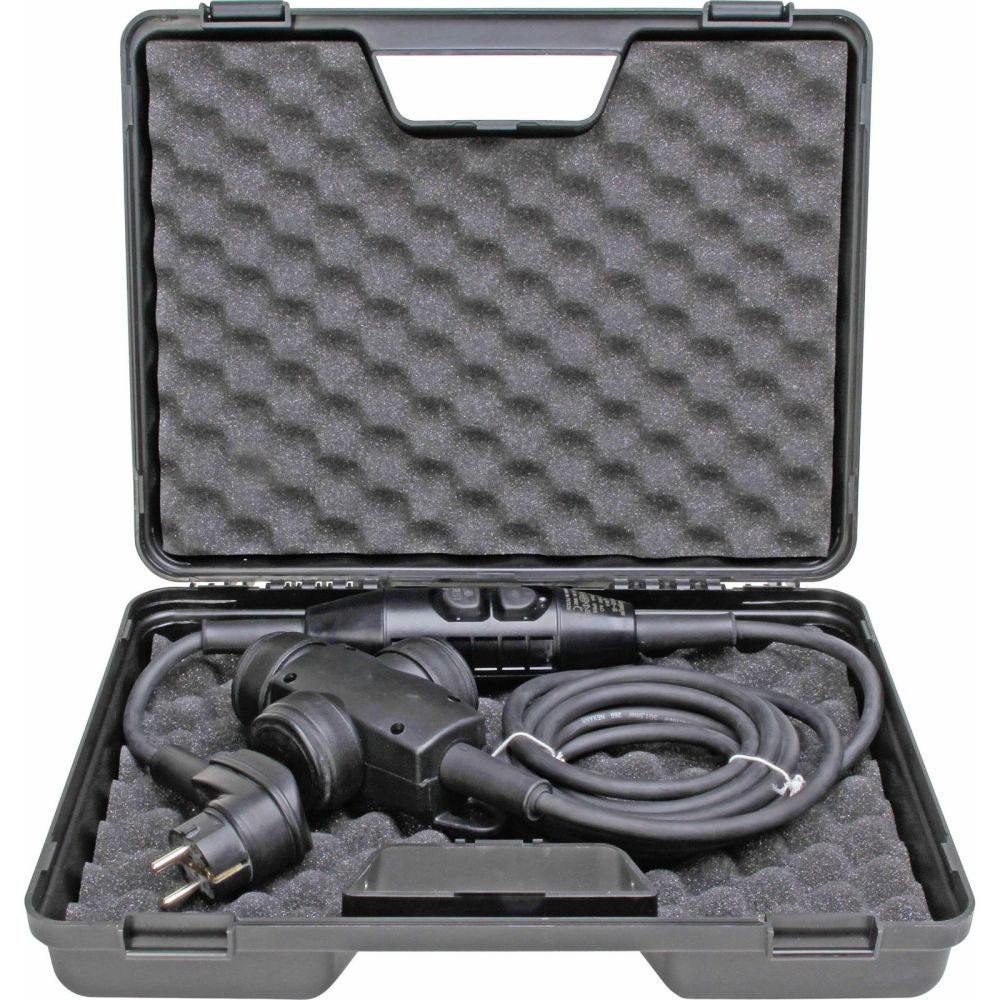

The PRCD-S is delivered in a robust case that protects the switch from mechanical damage. The connection side features a solid rubber angle plug, enabling a secure and weather-resistant connection. The coupling side includes a 3-way solid rubber coupling with caps that protect the plug connections from dust and moisture. The caps can be removed to access the plug connections and reseal tightly afterwards.

Technology explained simply
The cable on the plug side has a length of 15 cm, while the cable on the coupling side is 300 cm long. This allows for flexible positioning of the switch, with the longer side suitable for connecting to multiple consumers or devices. The cable used is type H07RN-F3G1,5 mm², indicating a flexible, oil- and heat-resistant cable type with three conductors (L, N, PE) and a cross-section of 1.5 mm² per conductor. This cable type is suitable for indoor and outdoor use and offers high mechanical and thermal load capacity.

Compatibility and accessories
The PRCD-S is compatible with standard Schuko sockets and plugs. The 3-way coupling allows simultaneous power supply to up to three devices. The use of solid rubber plugs and couplings ensures high mechanical stability and weather resistance. The IP44 protection rating allows use in environments that do not need to be fully waterproof but require protection against splashing water and dust.

Installation and mounting
Installation is carried out by simply inserting the angle plug into a suitable socket. The coupling side can be connected to any Schuko socket, with the 300 cm long cable enabling flexible positioning. The coupling caps are removable to access the plug connections and reseal tightly afterwards. The protective conductor monitoring operates automatically as soon as the switch is turned on.

Advantages in operation
The PRCD-S offers high safety through integrated protective conductor monitoring and 3-pole switching. The IP44 protection rating enables use in damp environments, and the robust design with solid rubber plugs and couplings ensures a long service life. The combination of a short plug cable (15 cm) and a long coupling cable (300 cm) provides flexibility in positioning and cabling. The use of H07RN-F3G1,5 mm² cables ensures reliable power supply even under demanding conditions.

General
Degree of protectionIP44
Operating voltage230 V
Nominal current16 A
Frequency50 Hz
Rated residual current0,03 A
Switching type3-pole switching
Cable plug side15 cm
Cable coupling side300 cm
Cable typeH07RN-F3G1,5 mm²
Connector typefull rubber angled plug
Coupling typeFull rubber coupling 3-way with caps
Shipping packagingrobust case
Earth conductor monitoringYes


Questions & answers

What is the delivery time of KOPP 141916019 angled plug PRCD-S IP44 230 V 16 A 30 mA 15 cm 300 cm H07RN-F 3 G 1.5 mm²?

The article KOPP 141916019 angled plug PRCD-S IP44 230 V 16 A 30 mA 15 cm 300 cm H07RN-F 3 G 1.5 mm² is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of KOPP 141916019 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you KOPP 141916019 angled plug PRCD-S IP44 230 V 16 A 30 mA 15 cm 300 cm H07RN-F 3 G 1.5 mm² always at the best possible price. We can give you a discount of 2% on KOPP 141916019 angled plug PRCD-S IP44 230 V 16 A 30 mA 15 cm 300 cm H07RN-F 3 G 1.5 mm² if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of KOPP 141916019 angled plug PRCD-S IP44 230 V 16 A 30 mA 15 cm 300 cm H07RN-F 3 G 1.5 mm² we can offer you a price of 364,95 EUR per piece. The more you buy, the cheaper the article will be.
