Klauke HD13185 crimping die HK13er 185 mm² for crimp cable lugs/connectors 6-sided

Your rating:
Average rating
product review for Klauke HD13185 crimping die HK13er 185 mm² for crimp cable lugs/connectors 6-sided
( 4.4 / 5 ) 17 ratings

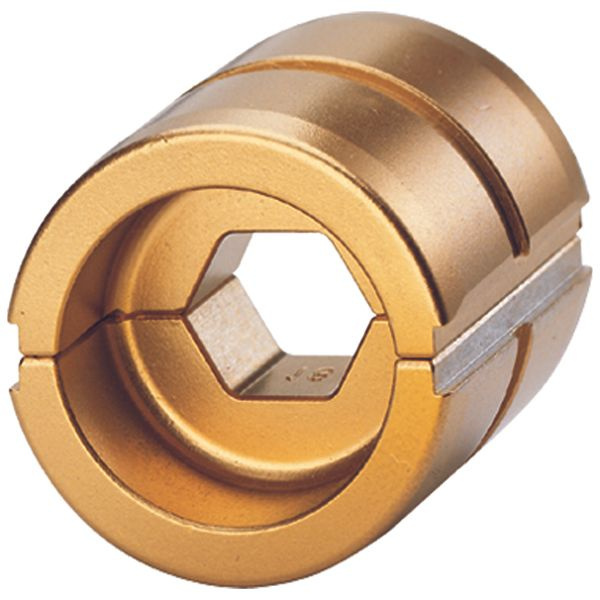

Klauke HD13185
This image may differ from the desired article.
Klauke HD13185Klauke HD13185Klauke HD13185
170,05 EUR 171,74 EUR
( 202,36 EUR incl. VAT )
≈ £142.33  |  ≈ $186.88
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Klauke HD13185 crimping die HK13er 185 mm² for crimp cable lugs/connectors 6-sided
Lieske Part No.:110444
Mfg Part No: HD13185
UPC/EAN: 4012078031479
Weight:0.2 kg
Type:HD13185
Graduated prices net
From piecesPrice per pieces
5168,77 EUR
10167,50 EUR
15166,22 EUR
20164,95 EUR

Product information for Klauke HD13185:

The HD13185 crimping die from Klauke belongs to series 13 and is specifically designed for processing cable lugs and connector components in the field of electrical installation. It serves as tool accessory for crimping tools and enables precise and secure crimping of cable lugs as well as crimp connectors made of copper (Cu), manufactured according to standards DIN 46235 and DIN 46267, part 1. The application is particularly used during the assembly of electrical connections in industry, building technology, or during the installation of high-current lines, where a reliable mechanical and electrical connection is required.

Applications

The crimping die is designed for use with crimp cable lugs according to DIN 46235 and crimp connectors according to DIN 46267, part 1. These standards define the geometric and mechanical requirements for cable lugs and connectors used for secure connections of cables and lines in electrical installations. The application is primarily used for cable cross-sections of 185 mm², which is typical for high-performance systems, industrial machinery, or larger distribution systems. Crimping is performed using a suitable crimping tool, where the die precisely adapts the shape and pressure point to the geometry of the component being crimped.

Functions and Equipment in Detail

The HD13185 crimping die is designed for use with hexagonal crimp cable lugs and connectors, ensuring optimal fit and even pressure distribution. The die's shape ensures that crimping occurs without cracks or deformations, thereby increasing the electrical conductivity and mechanical strength of the connection.

Technology Explained Simply

The die operates on the principle of mechanical crimping, where the tube of the cable lug or connector is compressed under controlled pressure to create a secure connection between the cable and the lug. The die's shape (hexagonal) matches the typical geometry of the components being crimped, ensuring even pressure distribution. Crimping occurs under high pressure, causing the metallic surfaces to be in close contact, achieving high electrical conductivity and mechanical stability. The use of copper (Cu) as the material for the components being crimped is common, as copper offers high conductivity and mechanical strength.

Compatibility and Accessories

The crimping die is specifically designed for crimp cable lugs according to DIN 46235 and crimp connectors according to DIN 46267, part 1. These standards define the dimensions and technical requirements for the components being crimped. The die is used with crimping tools compatible with series 13.

Installation and Mounting

Installation is performed by inserting the crimping die into the appropriate crimping tool, with the tool set to the desired pressure. The cable lug or connector is placed onto the cable and inserted into the die. The crimping tool is then activated, causing the die to deform the lug or connector and create a secure connection. The exact operation of the tool follows the manufacturer's instructions for the tool, with crimping force and number of crimping operations varying depending on the tool model.

Operational Advantages

The die provides precise and reproducible crimping, enhancing the quality of the electrical connection. The use of standard components (DIN 46235, DIN 46267, part 1) ensures interoperability with other system components. The hexagonal shape ensures even pressure distribution, extending the connection's lifespan and reducing the risk of loosening or oxidation. Crimping is performed quickly and efficiently, reducing installation time and improving work quality.

General
Series13
Cable cross-section185 mm²
Suitable forcrimp cable lugs according to DIN 46235, crimp connectors according to DIN 46267, part 1


Questions & answers

What is the delivery time of Klauke HD13185 crimping die HK13er 185 mm² for crimp cable lugs/connectors 6-sided?

The article Klauke HD13185 crimping die HK13er 185 mm² for crimp cable lugs/connectors 6-sided is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Klauke HD13185 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Klauke HD13185 crimping die HK13er 185 mm² for crimp cable lugs/connectors 6-sided always at the best possible price. We can give you a discount of 2% on Klauke HD13185 crimping die HK13er 185 mm² for crimp cable lugs/connectors 6-sided if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Klauke HD13185 crimping die HK13er 185 mm² for crimp cable lugs/connectors 6-sided we can offer you a price of 168,77 EUR per piece. The more you buy, the cheaper the article will be.
