SSD 256GB Kingston 6,3 cm ( 2,5 inch ) (6.4 cm) SATA III KC600 retail content_copy

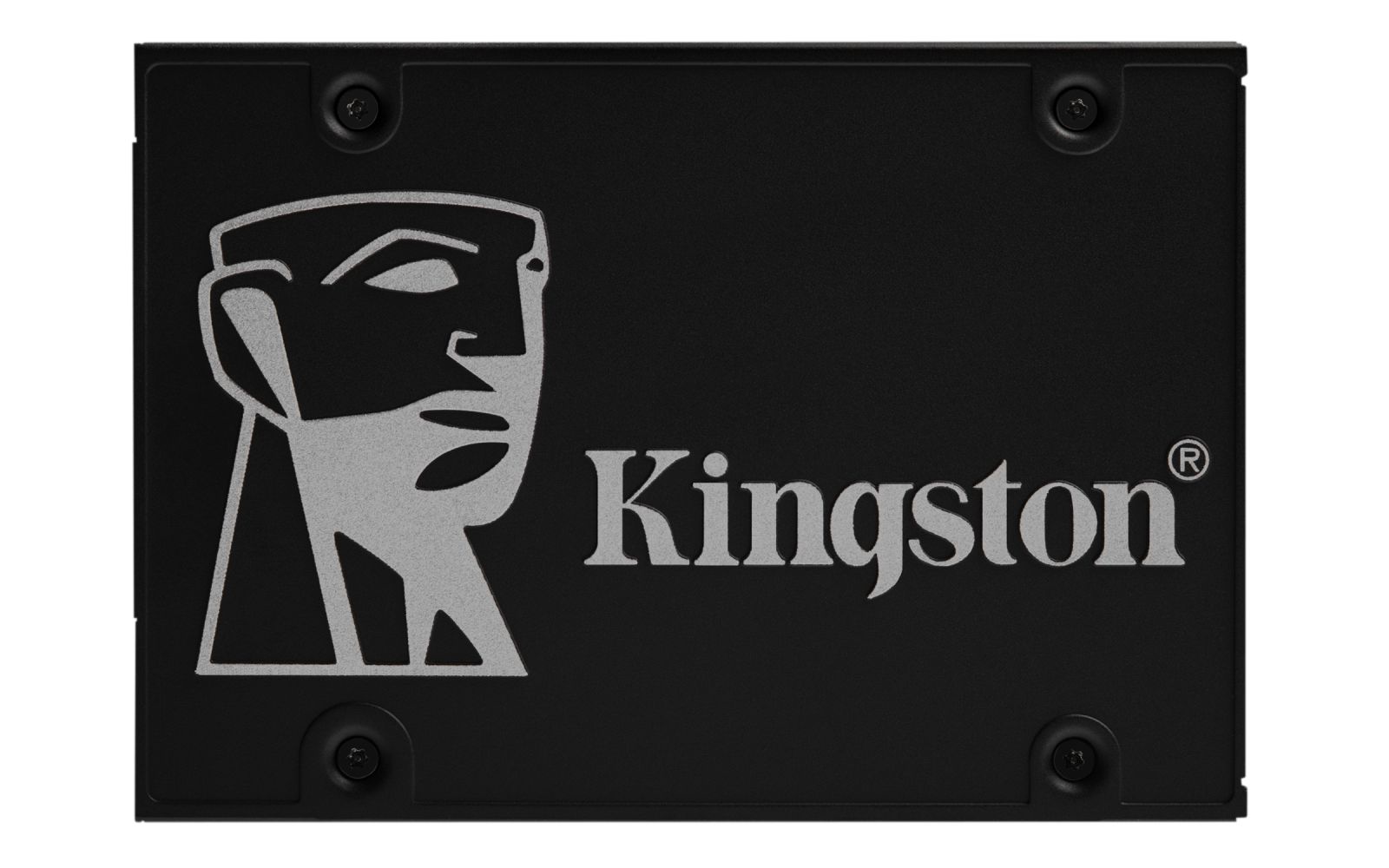

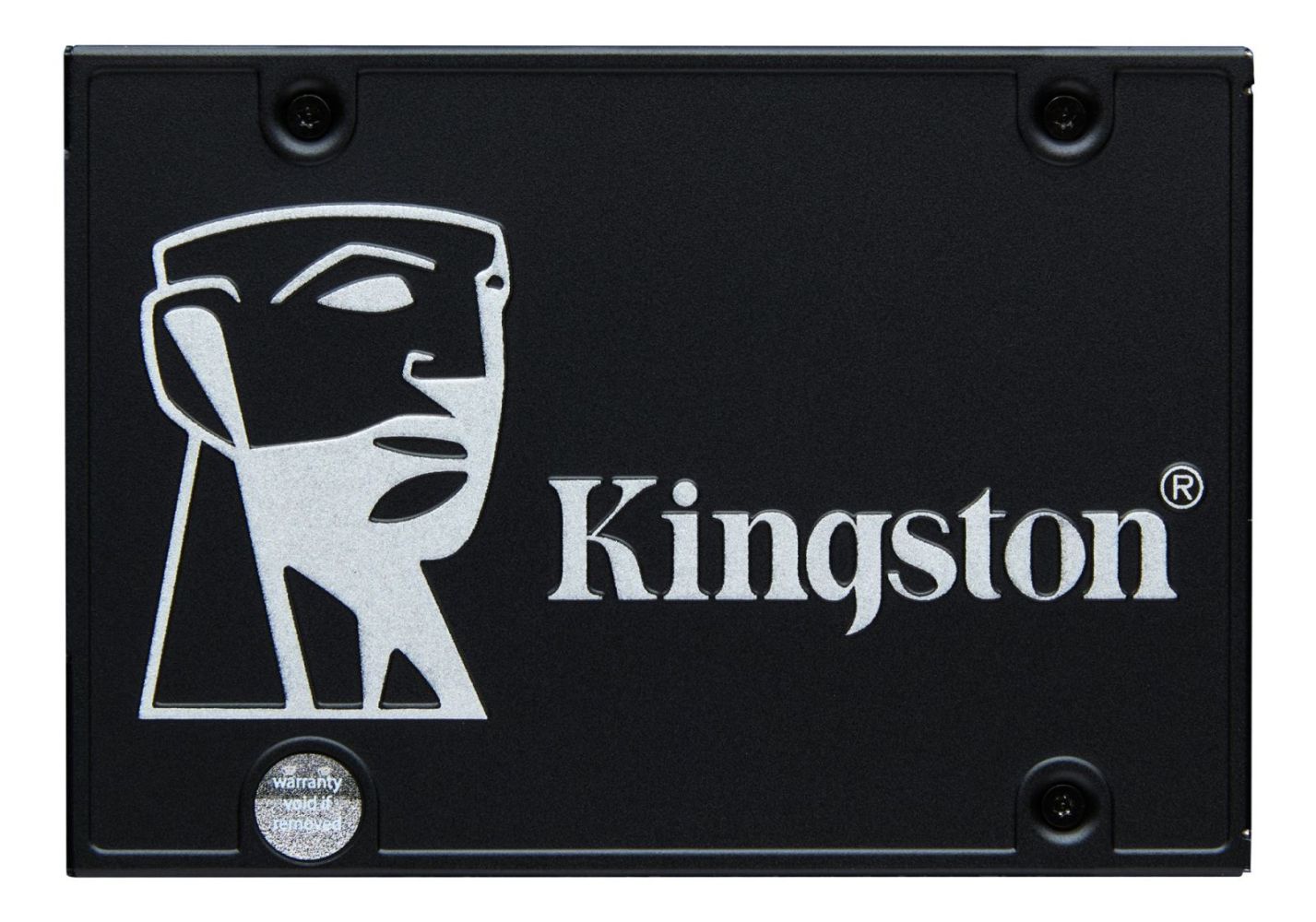

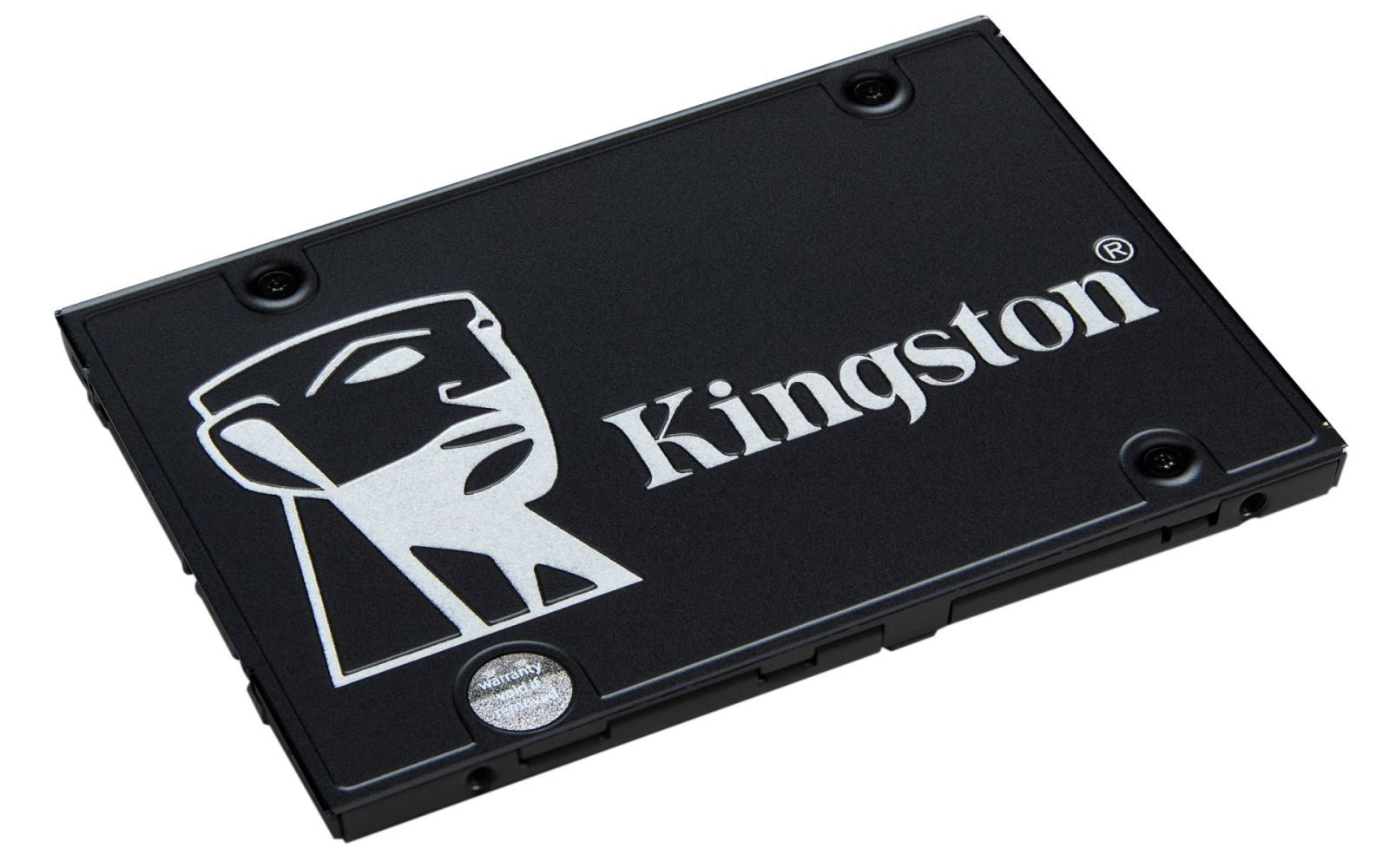

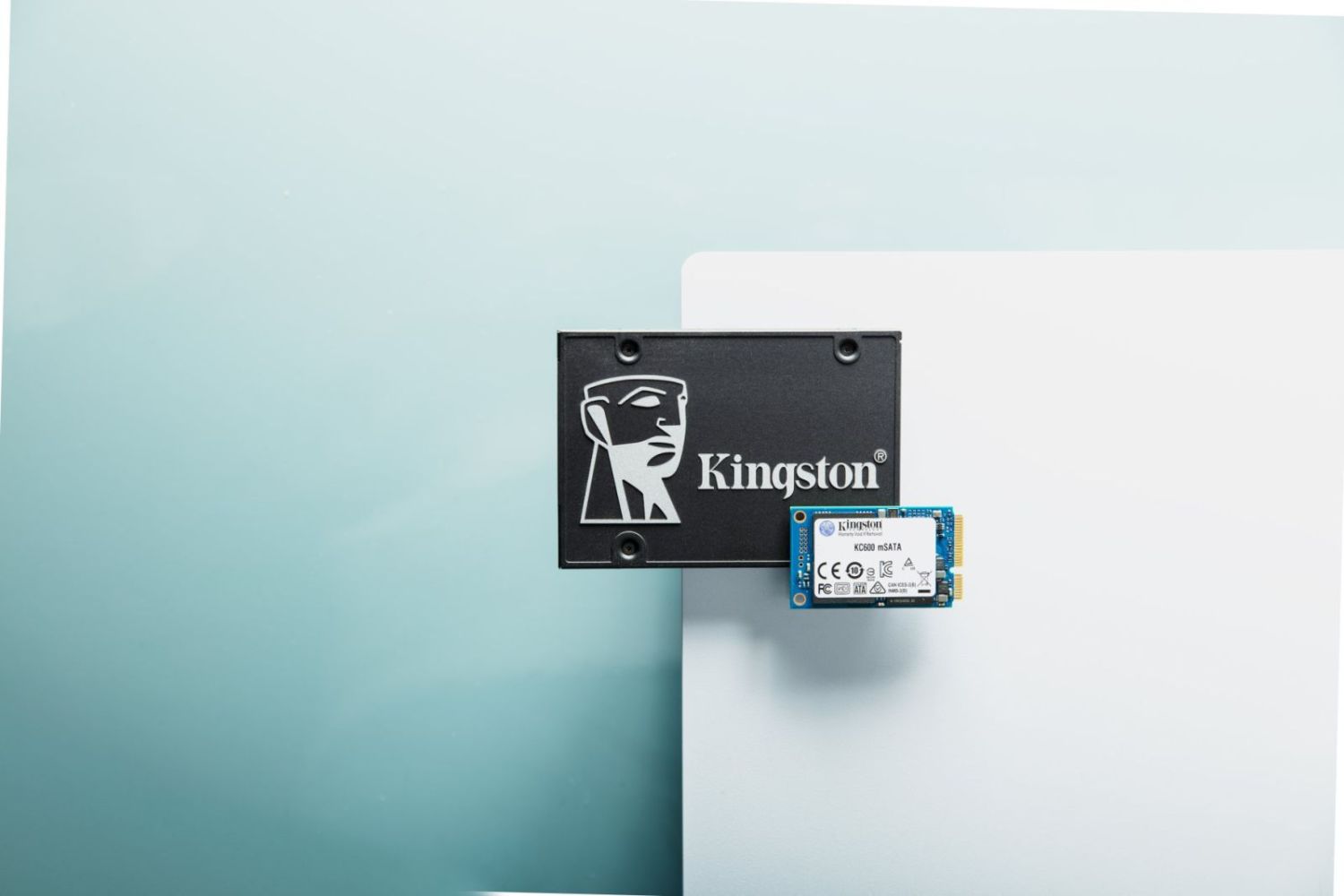

The Kingston KC600 SSD with 256 GB storage capacity is a Solid-State-Drive in 6,3 cm ( 2,5 inch )-form factor, specifically designed for use in PCs and laptops. The device uses 3D TLC NAND technology and features a SATA III interface with a maximum data transfer rate of 6 Gbit/s, ensuring high bandwidth for data transfer. The read speed reaches up to 550 MB/s, and the write speed up to 500 MB/s, enabling fast system responses during booting, program launching, and file transfers. The random 4KB read and write accesses are rated at 90,000 IOPS and 80,000 IOPS respectively, ensuring efficient performance during numerous small file operations.

Applications
This SSD is designed for use in desktop and notebook systems requiring high performance with low power consumption. It is not intended for server environments. The operating temperature ranges from 0 °C to 70 °C, while the storage temperature of -40 °C to 85 °C allows for safe storage under various conditions. The vibration tolerance is 2.17 G during operation and 20 G when not in use, ensuring stability under normal operating conditions.

Features and Specifications in Detail
A key feature of the KC600 is hardware encryption using 256-bit AES in XTS mode, ensuring secure data management. The encryption is firmware-integrated and cannot be modified by the user. Additionally, the device supports security standards TCG Opal 2.0 and eDrive, enabling use in environments with high security requirements. The mean time between failures (MTBF) is 1,000,000 hours, indicating high reliability. The total bytes written (TBW) for the 256 GB version is 150 TB, defining its lifespan under normal usage.

Technology Explained Simply
The 3D TLC NAND technology enables higher storage density and improved performance compared to older NAND generations. The SM2259 controller ensures efficient data transfer and processing control. The SATA III interface is backward compatible with SATA II (3 Gbit/s), allowing the drive to function in older systems with compatible interfaces. The power consumption is 0.06 W in idle, 0.2 W on average, 1.3 W maximum during reading, and 3.2 W maximum during writing, enabling energy-efficient operation.

Compatibility and Accessories
The SSD is designed for systems supporting a 6,3 cm ( 2,5 inch ) drive bay and a SATA interface. The dimensions are 100.1 mm (length) × 69.9 mm (width) × 7 mm (height), and the weight is 40 g. The SSD is available as a single unit without additional installation aids or accessories. Installation is performed by the user according to the installation instructions included in the package.

Mounting and Installation

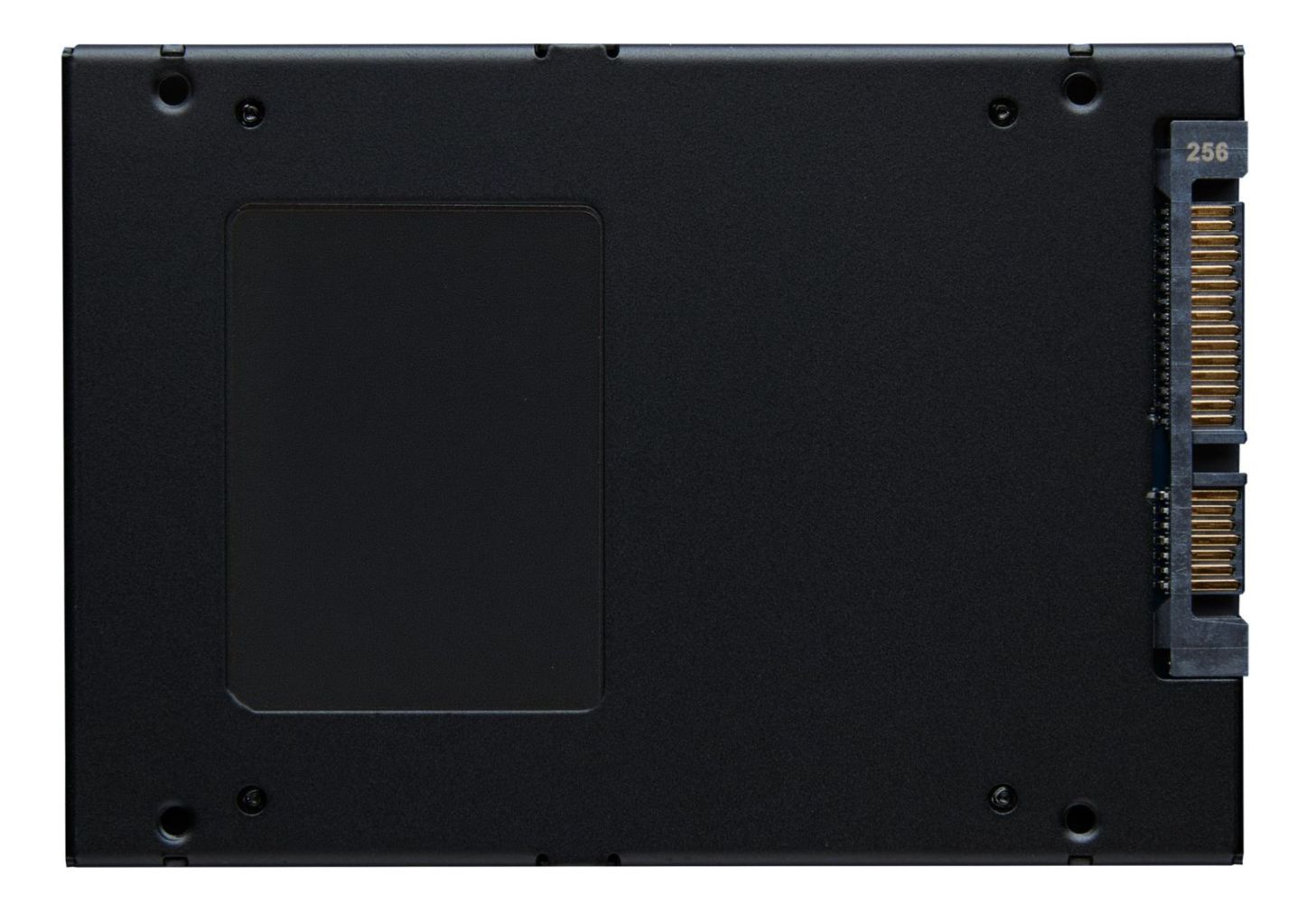

Mounting is done via mechanical fixation in the 6,3 cm ( 2,5 inch ) drive bay of the computer. The SATA connection is made using the SATA data cable and the power cable (12 V/5 V) from the computer. The SSD is designed for user installation and can be used without further support from the supplier.

Operational Advantages
The combination of high speed, low power consumption, and integrated hardware encryption makes the KC600 a powerful solution for use in workstations and mobile devices. The long lifespan and high reliability ensure stable operation over an extended period. The security features provide high protection for sensitive data, especially in environments where data privacy and data security are important. The compatibility with standard SATA systems simplifies replacement and upgrading of existing systems.

Features
Security algorithms	256-bit AES
SSD capacity	256 GB
SSD form factor	2.5"
Interface	Serial ATA III
Memory type	3D TLC
Component for	PC/Laptop
Data transfer rate	6 Gbit/s
Read speed	550 MB/s
Write speed	500 MB/s
Random read (4KB)	90000 IOPS
Random write (4KB)	80000 IOPS
Controller type	SMI SM2259
Mean time between failures (MTBF)	1000000 h
Hardware encryption
Logistics data
Country of origin	China
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Harmonized System (HS) code	84717070
Master (outer) case height	69.8 mm
Master (outer) case gross weight	699.95 g
Products per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
Packaging data
Package width	129.5 mm
Package depth	9.14 mm
Package height	184.2 mm
Package weight	62.19 g
Power
Power consumption (read)	1.3 W
Power consumption (write)	3.2 W
Power consumption (average)	0.2 W
Power consumption (idle)	0.06 W
Weight & dimensions
Width	69.9 mm
Depth	100.1 mm
Height	7 mm
Weight	40 g

---
