SSD 960GB Kingston 6,3 cm ( 2,5 inch ) (6.3 cm) SATA III A400 retail content_copy

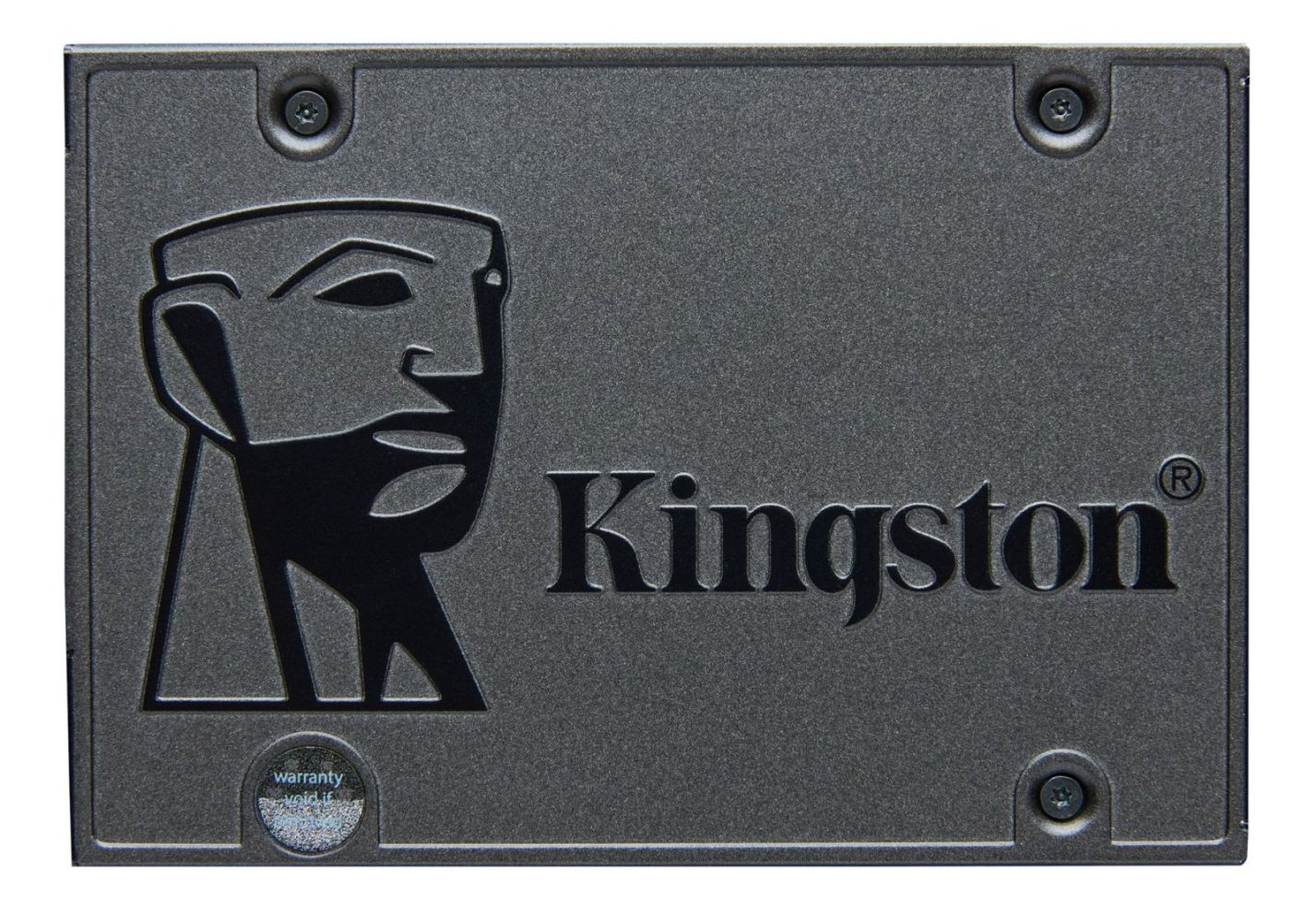

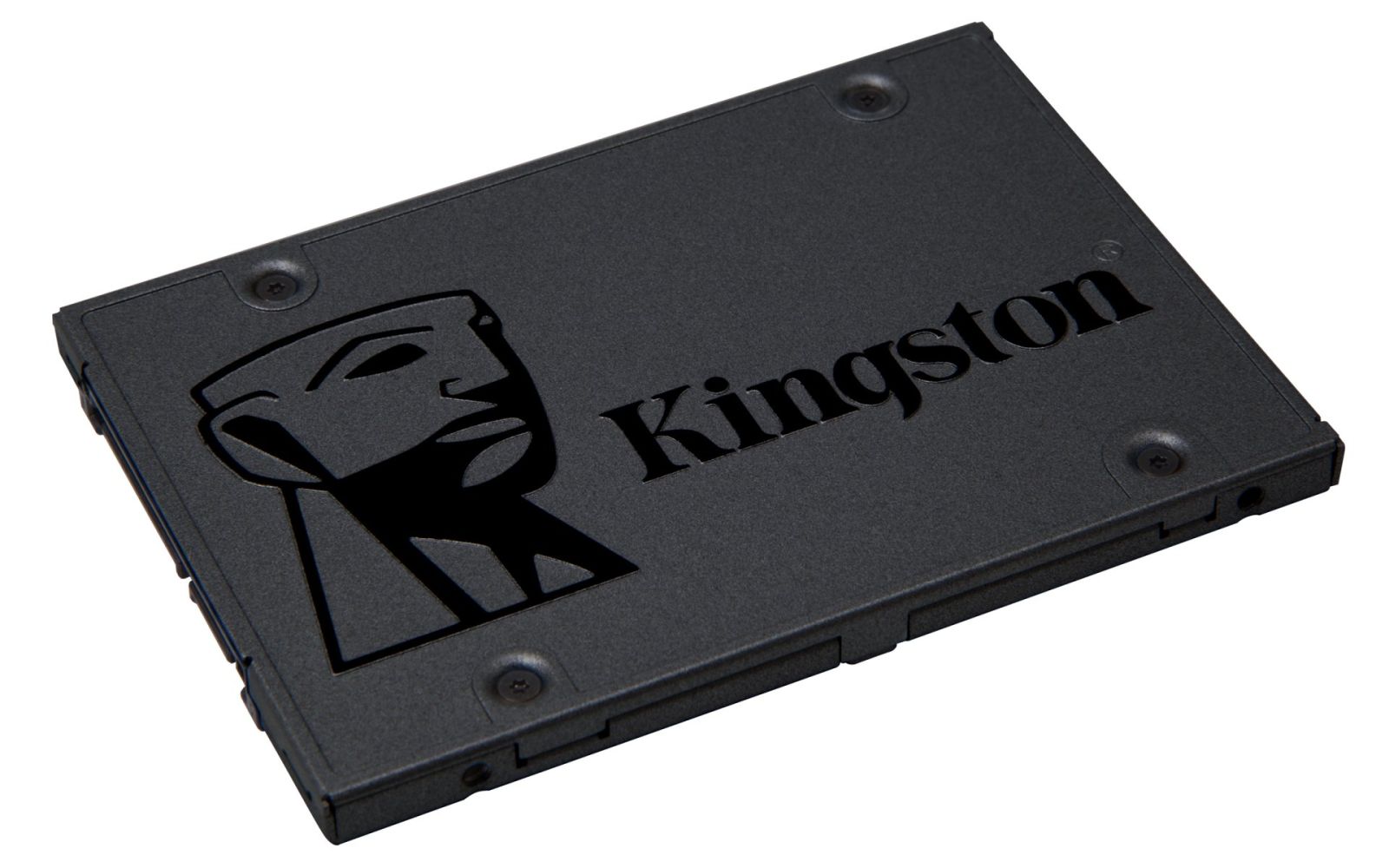

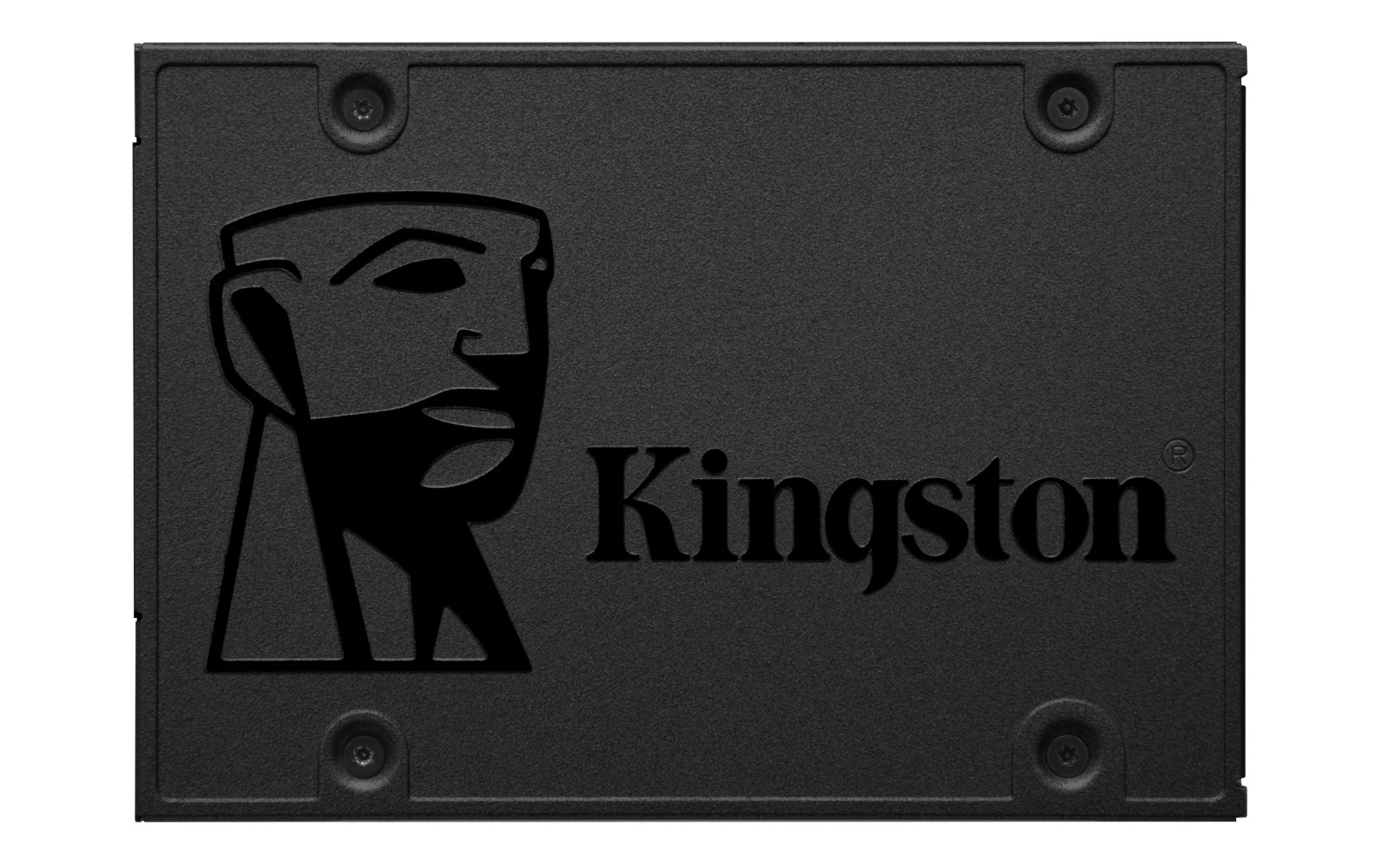

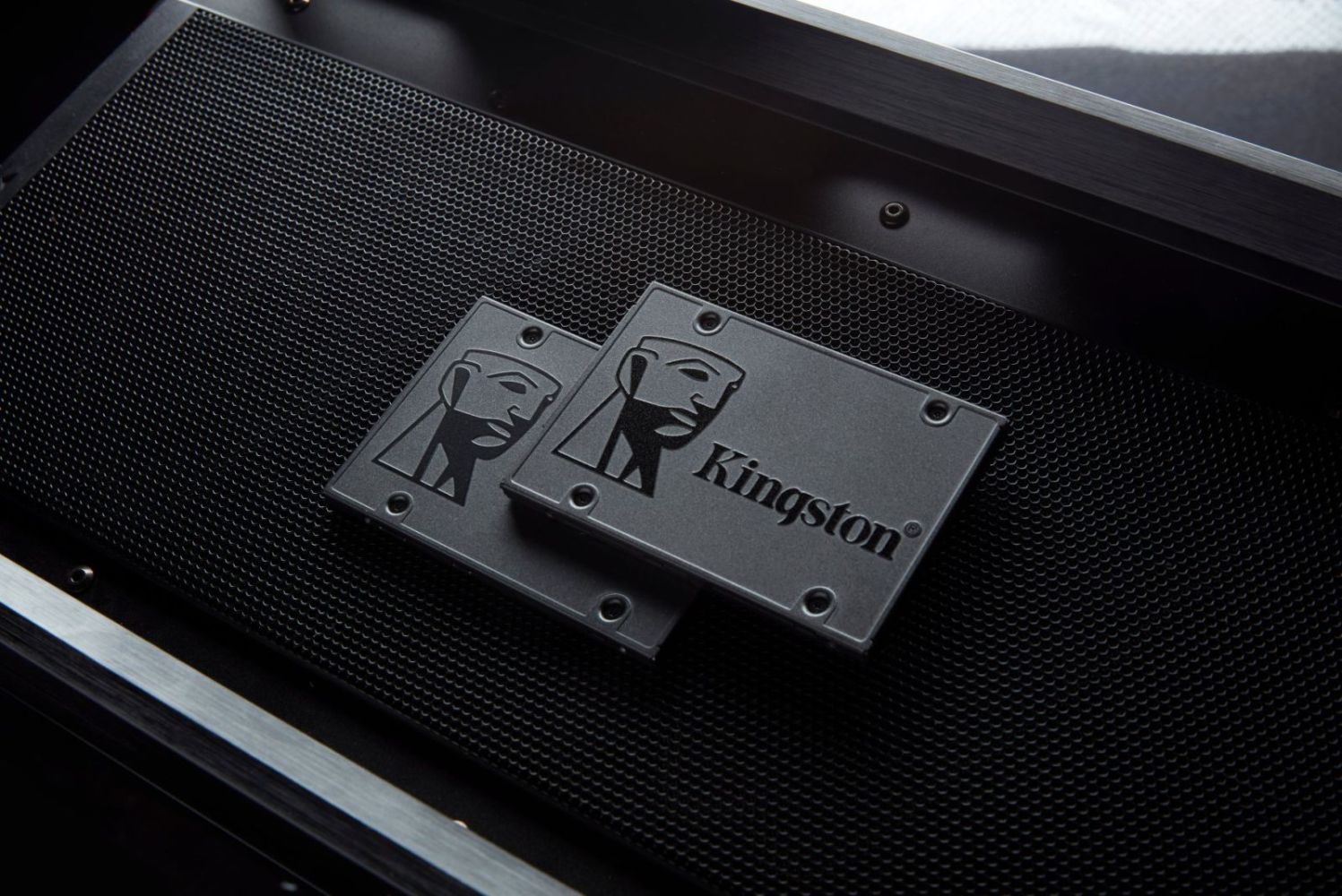

The Kingston SSD A400 with a storage capacity of 960 GB is a Solid-State-Drive in 2.5-inch form factor, specifically designed for use in desktop and notebook computers. The drive uses the SATA III interface with a maximum data transfer rate of 6 Gbit/s, enabling fast and reliable connection to the system bus. As TLC-Flash memory, it offers a balanced combination of performance, capacity, and lifespan, suitable for everyday use in office and home computers.

Applications
The SSD is ideal for use in PC and laptop systems where fast system boot times, short application load times, and high data transfer rates are required. Due to its shock resistance and vibration resistance, it is particularly well-suited for mobile devices where mechanical stress may occur. The compact design in 2.5-inch format with a height of 7 mm allows for easy installation in notebooks and slim-design desktops.

Functions and Features in Detail
The drive achieves read and write speeds of up to 500 MB/s and 450 MB/s, representing a significant improvement over conventional mechanical hard drives. The use of a modern controller ensures stable and efficient data processing. The SSD is flash memory-based, meaning it has no moving parts – this results in lower failure rates, lower power consumption, and quieter operation compared to mechanical hard drives.

Technology Explained Simply
The SATA III interface supports a maximum bandwidth of 6 Gbit/s, sufficient to achieve the specified speeds of 500 MB/s (read) and 450 MB/s (write). The TLC technology (Triple-Level Cell) enables higher storage density per memory cell, allowing the 960 GB capacity to be achieved. Lifespan is indicated by an MTBF (Mean Time Between Failures) of 1,000,000 hours, indicating high reliability. Power consumption values are 0.195 W in idle, 0.279 W average, 0.642 W during reading, and 1.535 W during writing – this corresponds to efficient power consumption for typical use.

Compatibility and Accessories
The SSD is designed for systems equipped with a SATA III or compatible SATA II interface. It is not intended for server environments, but for use in desktop and notebook computers. The A400 is available in various capacities and form factors (6,3 cm ( 2,5 inch ) and M.2), with the model described here using the 2.5-inch standard with 7 mm height. Compatibility with SATA-3.0 motherboards is assumed, although actual speed depends on the hardware and software environment.

Installation and Mounting

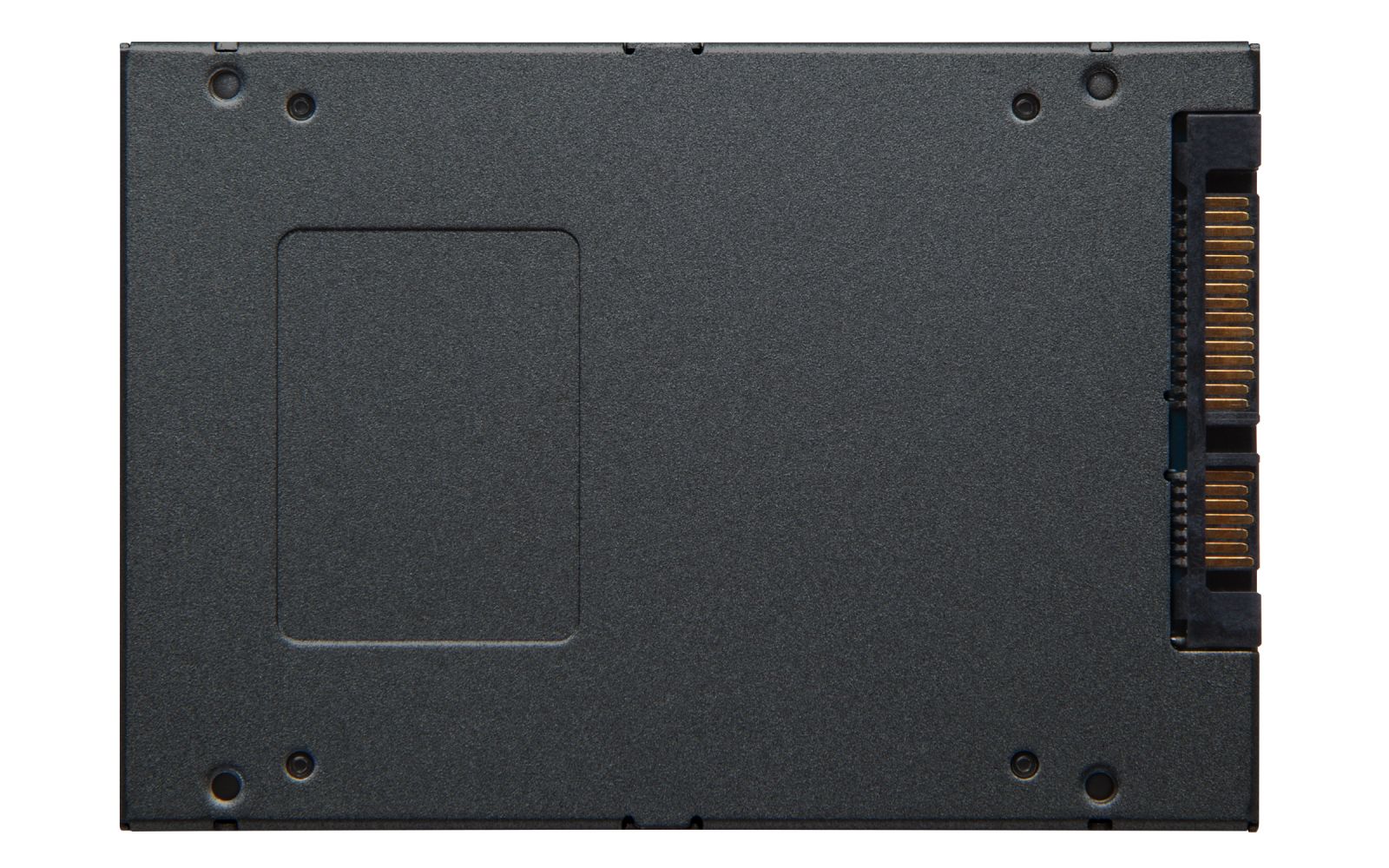

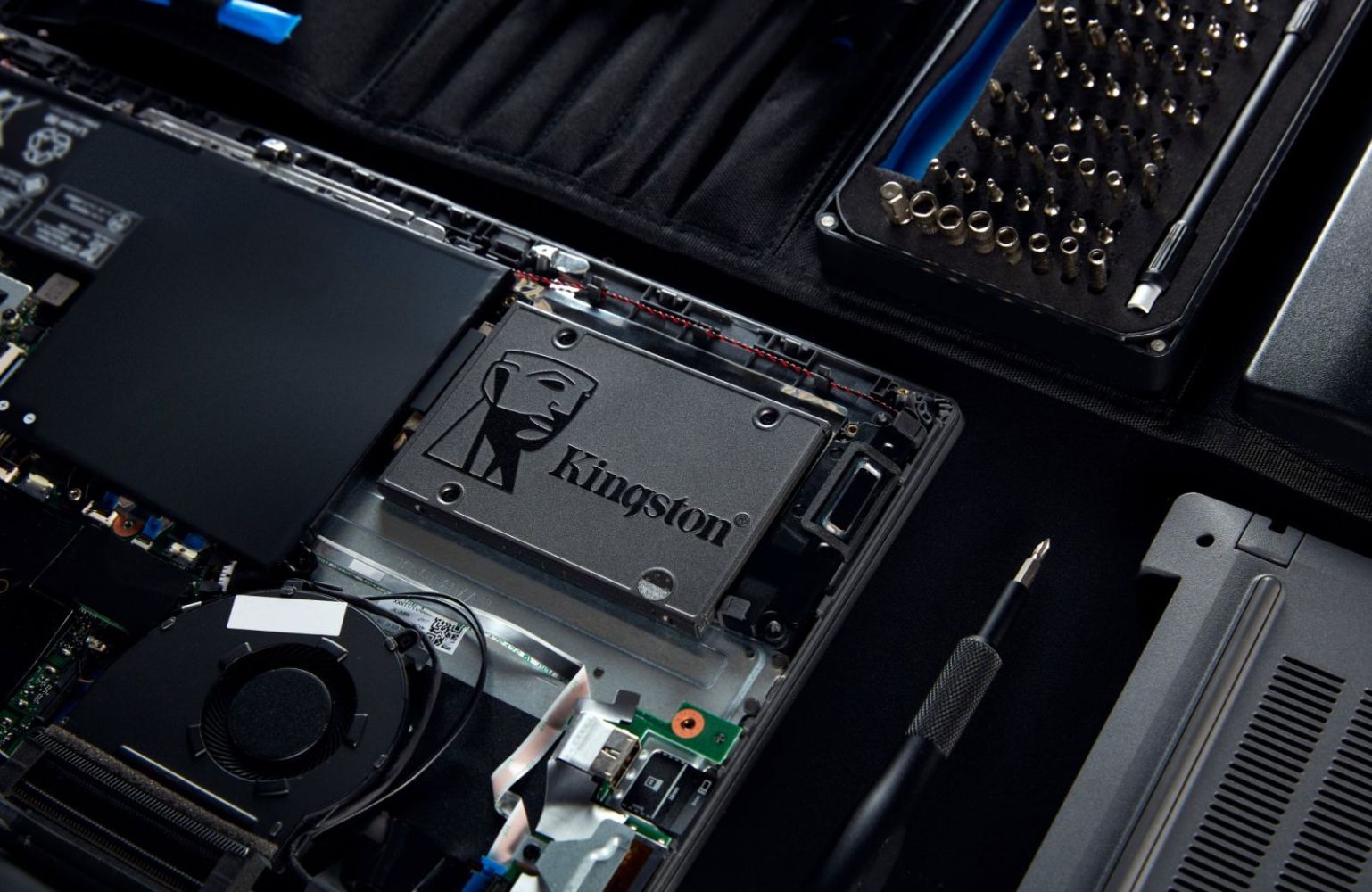

Installation is performed by inserting into a 2.5-inch slot in the computer chassis, with power supplied via the SATA power cable. Connection to the motherboard is made via the SATA data cable. The SSD requires no additional drivers or software – it is automatically recognized and initialized by the operating system.

Operational Advantages
The SSD offers significant performance improvement over conventional hard drives, especially in system boot, application loading, and file transfers. The shock resistance and vibration resistance increase reliability, particularly in mobile devices. Low power consumption and quiet operation contribute to efficient use. The 960 GB capacity provides sufficient storage space for operating system, applications, media content, and documents.

Features
SSD capacity	960 GB
SSD form factor	2.5"
Interface	Serial ATA III
Memory type	TLC
Component for	PC/Laptop
Data transfer rate	6 Gbit/s
Read speed	500 MB/s
Write speed	450 MB/s
Mean time between failures (MTBF)	1000000 h
Protection features	Shock resistant, Vibration proof
Certification	CE, FCC
NVMe
Logistics data
Master (outer) case width	135.9 mm
Master (outer) case length	203.2 mm
Harmonized System (HS) code	84717070
Master (outer) case height	69.8 mm
Master (outer) case gross weight	718.96 g
Products per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
Other features
Product colour	Black
Packaging data
Package width	129.5 mm
Package depth	9.14 mm
Package height	184.2 mm
Package weight	64.09 g
Package type	Blister
Power
Power consumption (write)	1.535 W
Power consumption (max)	0.642 W
Power consumption (average)	0.279 W
Power consumption (idle)	0.195 W
Weight & dimensions
Width	69.8 mm
Depth	100.1 mm
Height	7 mm
Weight	41.9 g

---
