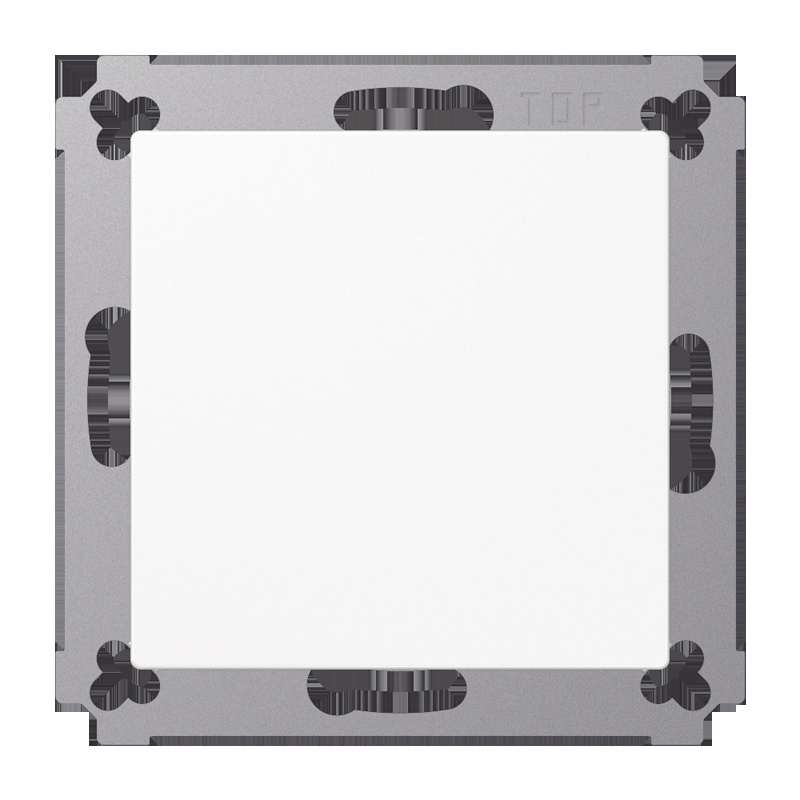

JUNG NRSAS0834USVWW UPS module Series A/AS alpin white
|
262,61 EUR 273,67 EUR |
|||||||||||
|
( 312,51 EUR incl. VAT ) ≈ £219.80 | ≈ $288.61 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 532698 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | NRSAS0834USVWW | ||||||||||
| UPC/EAN: | 4011377130746 | ||||||||||
| Weight: | 0.129 kg | ||||||||||
| Type: | NRSAS0834USVWW | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG NRSAS0834USVWW:
Applications
The module is intended for use in emergency call systems, particularly in buildings with increased requirements for the availability of safety functions. It is operated in conjunction with a power supply unit from the NRS series (part no. NRS .. 0834 NT ..), which provides an input voltage of DC 24 V. The UPS function ensures that in the event of a mains power failure, the supply to connected components is temporarily maintained, preventing interruption of critical functions such as alarm transmission or emergency call connection.
Functions and Equipment in Detail
The module supplies power via an integrated battery pack, which is automatically activated when the mains voltage is interrupted. The output voltage during battery operation is DC 22.8 V with a tolerance of ±10 %. This voltage is sufficient to continue operating connected devices in an emergency. The rated load is 130 mA and can be drawn for a duration of one hour during battery operation. For short-term load peaks, a maximum load of 300 mA for 15 minutes is possible. In mains operation, the module can deliver a maximum load of 250 mA.
Technology Explained Simply
The integrated UPS function enables a seamless transfer of power supply from the mains to the internal battery. This occurs automatically, without requiring additional switching operations. The voltage values are designed to cover the operating voltage of most emergency call components. The ±10 % tolerance on output voltage during battery operation is sufficient for most applications, as emergency call systems often allow for some voltage tolerance. The specification of load values (rated and maximum) enables targeted sizing of connected loads to optimize operating time during battery operation.
Compatibility and Accessories
The module is specifically designed for use with power supplies from the NRS series (part no. NRS .. 0834 NT ..). The input voltage of DC 24 V must be supplied by this power supply unit. It is not designed for other voltage sources. Installation is carried out in a flush-mounted back box, requiring a sufficiently deep box to fully accommodate the module.
Installation and Mounting
Installation is performed by screw fastening into a flush-mounted back box. Since no mounting claws are provided, precise alignment and secure fastening using screws is required. The back box must be sufficiently deep to fully accommodate the module, ensuring a secure and stable installation. Wiring is carried out via the designated terminal clamps, intended for connection to the power supply unit and connected devices.
Operational Advantages
The integrated UPS function provides reliable power supply for emergency call systems, even during short-term power outages. The automatic transfer from mains to battery operation occurs without interruption, ensuring the functionality of connected devices. The defined load values enable precise planning of system loads to maximize operating time during battery operation. Use in conjunction with a power supply unit from the NRS series ensures a compatible and reliable system environment.
| General | |
| Input voltage | 24 V DC |
| Output voltage in battery operation | 22,8 V DC |
| Output voltage tolerance | ±10 % |
| Rated load in battery operation | 130 mA |
| Operating time at rated load | 1 Hour |
| Maximum load in battery operation | 300 mA |
| Maximum operating time in battery operation | 15 minutes |
| Maximum load in mains operation | 250 mA |
| Mounting method | Screw mounting |
| Mounting claws | None |
| Frame | None |
| Colour | alpine white |
| Compatibility | Power supply NRS .. 0834 NT .. |
Questions & answers
What is the delivery time of JUNG NRSAS0834USVWW UPS module Series A/AS alpin white?
The article JUNG NRSAS0834USVWW UPS module Series A/AS alpin white is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG NRSAS0834USVWW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you JUNG NRSAS0834USVWW UPS module Series A/AS alpin white always at the best possible price. We can give you a discount of 2% on JUNG NRSAS0834USVWW UPS module Series A/AS alpin white if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of JUNG NRSAS0834USVWW UPS module Series A/AS alpin white we can offer you a price of 252,76 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
