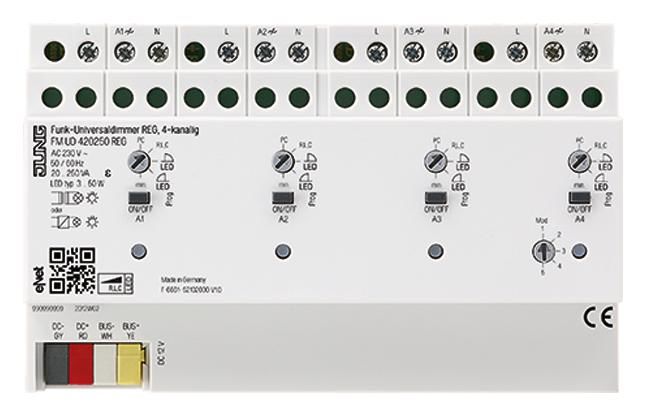

JUNG FMUD420250REG wireless dimming actuator, MDRC Universal 4-channel

REG housing 8 HP
new system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps
Operation with power supply 12 V REG (item no. NT 1220 REG VDC) and eNet radio receiver module REG (item no. FM FK 32 REG) or eNet server
Operation with suitable eNet radio transmitters
Installation on top hat rail according to DIN EN 60715 in sub-distribution board
Product features
Switching on by means of lamp-friendly soft start
Switch-on brightness can be permanently saved for each output
Minimum brightness can be permanently saved for each output
Scene operation possible
Status display of the outputs via LED
Status feedback to radio transmitter
outputs Can be switched with the Prog button
Increase in output power possible by connecting several outputs in parallel
Electronic short-circuit protection with permanent shutdown after 7 seconds at the latest
Electronic overtemperature protection
Automatic or manual setting of the dimming principle suitable for the load
Power extension through power additives (item no. ULZ 1755 REG) possible
Optional accessories: LED compensation module, item no.: KM LED 230 U
Can be set with eNet server:
Maximum
brightness Dimming speed
Switch-on/off delay Dimming
up/down ramp
Switch-off warning
Operating locks
Permanently on, permanently off
Hotel function
Run-on time
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of device software
Read error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Power loss: max. 8 W
Standby power: max. 1.2 W
Ambient temperature: ?5 ... +45 °C
Connected load per output at 45 °C
Performance data including transformer power loss.
Operate inductive transformers with at least 85 % nominal load.
With ohmic-inductive mixed load, max. 50 % share of ohmic load. Otherwise the dimmer may be incorrectly measured.
Load outputs connected in parallel can only be used up to 95% capacity.
The minimum load when connecting load outputs in parallel is 250 VA.
Incandescent lamps: 20 ... 250 W
HV halogen lamps: 20 ... 250 W
Electronic transformers: 20 ... 250 W
Electronic transformers with NV LED: typically 20 ... 100 W
Inductive transformers: 20 ... 250 VA
Inductive transformers with NV LED: typically 20 ... 100 VA
Dimmable HV LED lamps: typically 3 ... 50 W
Dimmable compact fluorescent lamps: typically 3 ... 50 W
When the 'LED trailing edge' setting is selected, the maximum connected load for HV LED lamps and electronic transformers with NV LED is doubled.
Ohmic-inductive: 20 ... 250 VA
Ohmic-capacitive: 20 ... 250 VA
Capacitive-inductive: not permitted
Power supplements: see instructions for power supplements
Connection outputs
Connection type: screw terminals
single-wire: 1 x 1.5 ... 4 mm2
fine-stranded without wire end ferrule: 1 x 0.75 ... 4 mm2
fine-stranded with wire end ferrule: 1 x 0.5 ... 2.5 mm2
Contact type: ?
Length of load cable per channel: max. 100 m
Installation width: 144 mm (8 HP)
Bus cable
Nominal voltage: DC 12 V SELV
Current consumption: 10 mA
Bus connection: connection terminal
Cable length: max. 3 m
