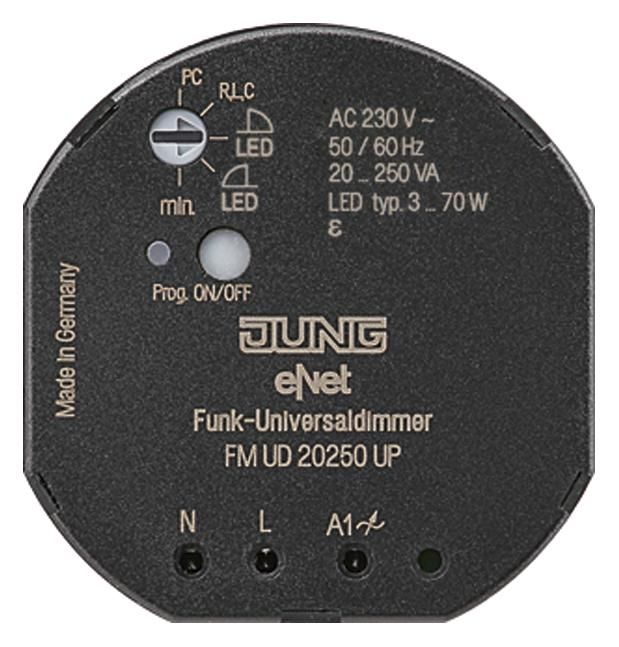

JUNG FMUD20250UP radio universal dimmer content_copy

new system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps
Operation with suitable eNet radio transmitters
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for false ceilings
Product features
Switching on via lamp-friendly soft start
Switch-on brightness can be permanently saved
Minimum brightness can be permanently saved
Scene operation possible
Status display with LED
Status feedback to radio transmitter Can
be switched with the Prog button
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic overtemperature protection
Automatic or manual setting of the dimming principle that suits the load
Power extension using power additives (item no. ULZ 1755 REG) possible
Optional accessories: LED compensation module, item no.: KM LED 230 U
Can be set with eNet server:
Maximum
brightness Dimming speed
Switch-on/off delay Dimming
up/down ramp
Switch-off advance warning
Operating locks
Permanently on, permanently off
Hotel function
Run-on time
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of device software
Repeater function
Read error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Power loss: max. 1.5 W
Standby power: max. 0.5 W
Ambient temperature: ?25 ... +70 °C
Connected load at 45 °C
Power specifications including transformer power loss.
Operate inductive transformers with at least 85 % nominal load.
With mixed ohmic-inductive load, max. 50 % share of ohmic load. Otherwise, the dimmer may be incorrectly calibrated.
Incandescent lamps: 20 ... 250 W
HV halogen lamps: 20 ... 250 W
Electronic transformers: 20 ... 250 W
Electronic transformers with LV LED: typically 20 ... 100 W
Inductive transformers: 20 ... 250 VA
Inductive transformers with LV LED: typically 20 ... 100 VA
HV LED lamps dimmable: typically 3 ... 70 W
Compact fluorescent lamps dimmable: typically 3 ... 70 W
Ohmic-inductive: 20 ... 250 VA
Ohmic-capacitive: 20 ... 250 W
Capacitive-inductive: not permitted
Ohmic and HV LED: typically 3 ... 70 W Ohmic and compact fluorescent: typically 3 ... 70 W Power reduction per 5 °C over 45 °C: -5 % when installed in wood or drywall: ?15 % when installed in multiple combinations: ?20 % Power supplements: see power supplement instructions Connection type: screw terminals single-wire: 1 x
0.75 ... 4 mm2 fine-wire with wire end ferrule: 1 x 0.75 ... 2.5 mm2 Contact type: ? Total length of load cable: max. 100 m Dimensions (Ø x H): 53 x 28 mm Radio frequency: 868.0 ... 868.6 MHz Transmission power: max. 20 mW Transmission range in free field: typically 100 m Receiver category: 2
