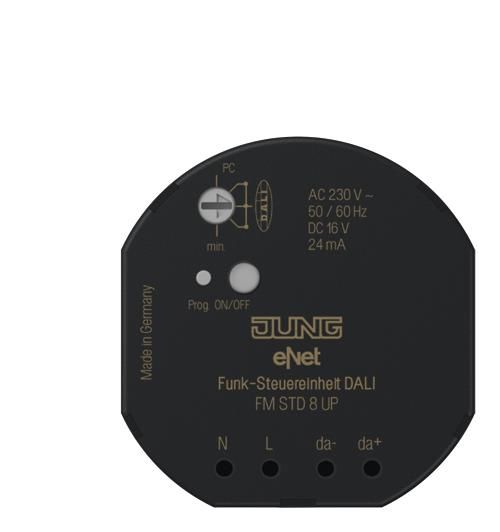

JUNG FMSTD8UP radio control unit DALI,
|
143,65 EUR 149,70 EUR |
|
|
( 170,94 EUR incl. VAT ) ≈ £122.82 | ≈ $163.19 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |
| In Stock: 5 pieces | |
| Lieske Part No.: | 859142 |
|---|---|
| Mfg Part No: | FMSTD8UP |
| UPC/EAN: | 4011377086715 |
| Weight: | 0.897 kg |
| Type: | FMSTD8UP |
Product information for JUNG FMSTD8UP:
New system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching and brightness adjustment for lights with DALI interface
Operation with suitable eNet radio transmitters
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for false ceilings
Product features
Joint operation of all connected DALI ballasts, broadcast
Electronic short-circuit protection of the DALI supply with permanent shutdown after 8 seconds
Electronic overtemperature protection of the DALI supply with self-holding
DALI supply for a maximum of 12 participants
Parallel switching of up to 6 DALI control devices with the option of supplying up to 72 participants
Switch-on brightness can be permanently saved
Minimum brightness can be permanently saved
Scene operation possible
Status display with LED
Status feedback to radio transmitter
DALI ballasts can be switched with Prog button
Can be set with eNet server:
Maximum brightness
Dimming speed
Switch-on/switch-off delay Dimming ramp
up/down
Switch-off warning
Operating locks
Permanently on, permanently off
Hotel function
Run-on time
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0
Update of device software
Repeater function
Read error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Power consumption: max. 2 W
Ambient temperature: ?25 ... +70 °C
DALI system voltage: DC 16 V
Output current: max. 24 mA
Number of DALI participants: max. 12
Power reduction
Number of DALI participants above 45 °C: max. 8
Number of parallel control devices: max. 6
Connection type: Screw terminals
single-wire: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.75 ... 2.5 mm2
Dimensions (Ø x H): 53 x 28 mm
Radio frequency: 868.0 ... 868.6 MHz
Transmission power: max. 20 mW
Transmission range in free field: typ. 100 m
Receiver category: 2
Intended use
Switching and brightness adjustment for lights with DALI interface
Operation with suitable eNet radio transmitters
Installation in device box according to EN 60670-1 in combination with a suitable cover
Installation in surface-mounted housing or installation adapter (item no. FM-EBG) for false ceilings
Product features
Joint operation of all connected DALI ballasts, broadcast
Electronic short-circuit protection of the DALI supply with permanent shutdown after 8 seconds
Electronic overtemperature protection of the DALI supply with self-holding
DALI supply for a maximum of 12 participants
Parallel switching of up to 6 DALI control devices with the option of supplying up to 72 participants
Switch-on brightness can be permanently saved
Minimum brightness can be permanently saved
Scene operation possible
Status display with LED
Status feedback to radio transmitter
DALI ballasts can be switched with Prog button
Can be set with eNet server:
Maximum brightness
Dimming speed
Switch-on/switch-off delay Dimming ramp
up/down
Switch-off warning
Operating locks
Permanently on, permanently off
Hotel function
Run-on time
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0
Update of device software
Repeater function
Read error memory
Nominal voltage: AC 230 V ~, 50/60 Hz
Power consumption: max. 2 W
Ambient temperature: ?25 ... +70 °C
DALI system voltage: DC 16 V
Output current: max. 24 mA
Number of DALI participants: max. 12
Power reduction
Number of DALI participants above 45 °C: max. 8
Number of parallel control devices: max. 6
Connection type: Screw terminals
single-wire: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.75 ... 2.5 mm2
Dimensions (Ø x H): 53 x 28 mm
Radio frequency: 868.0 ... 868.6 MHz
Transmission power: max. 20 mW
Transmission range in free field: typ. 100 m
Receiver category: 2
