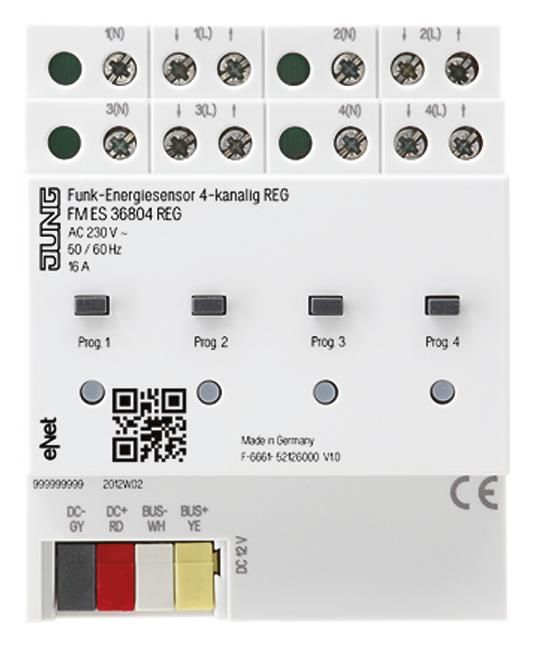

JUNG FMES36804REG radio Energiesenso, 4-channel REG
|
307,73 EUR |
|||||||||||
|
( 366,20 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 876232 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | FMES36804REG | ||||||||||
| UPC/EAN: | 4011377086692 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG FMES36804REG:
Intended use
Energy sensor for determining energy values
Sensor for load-dependent control of eNet actuators with eNet server
Transmission of measured values to the eNet server
Operation with power supply 12 V REG (item no. NT 1220 REG VDC) and eNet radio receiver module REG (item no. FM FK 32 REG) or eNet server
Installation on top hat rail according to DIN EN 60715 in sub-distribution board
Product features
Calculation of the active power and active energy separately for each measuring channel
Event- or time-controlled sending of measured value telegrams to the eNet server
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Nominal voltage: AC 230 V ~, 50/60 Hz
Nominal load current: 16 A
Peak current (1 s): 80 A
Peak current (1 min): 24 A
Power consumption per channel: 225 mW
Ambient temperature: ?5 ... +45 °C
Transmission interval: 1 ... 60 min
Load terminal connection: screw terminals,
single-wire: 1 x 1.5 ... 4 mm2,
fine-wire without ferrule: 1 x 0.75 ... 4 mm2,
fine-wire with ferrule: 1 x 0.5 ... 2.5 mm2
Installation width: 72 mm (4 HP)
Bus cable
Nominal voltage: DC 12 V SELV
Current consumption: 10 mA
Bus connection: connection terminal
Cable length: max. 3 m
Measuring ranges per channel
Current: 0 mA ... 16 A
Accuracy (current): ± 0.5 % of the current value and ± 8 mA
Voltage: 207 ... 250 V
Accuracy (voltage): ± 0.5 % of the current Value
Transmitted power and energy values
Active power: ?4,000 ... 4,000 W
Apparent power: 0 ... 4,000 VA
Reactive power: ?4,000 ... 4,000 var
Accuracy (power): ± 0.5 % of the current value and ± 2 W/VA/var
Active energy: ?99,999 ... 99,999 kWh
Questions & answers
What is the delivery time of JUNG FMES36804REG radio Energiesenso, 4-channel REG?
The article JUNG FMES36804REG radio Energiesenso, 4-channel REG is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG FMES36804REG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you JUNG FMES36804REG radio Energiesenso, 4-channel REG always at the best possible price. We can give you a discount of 2% on JUNG FMES36804REG radio Energiesenso, 4-channel REG if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of JUNG FMES36804REG radio Energiesenso, 4-channel REG we can offer you a price of 293,88 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of JUNG FMES36804REG radio Energiesenso, 4-channel REG via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
