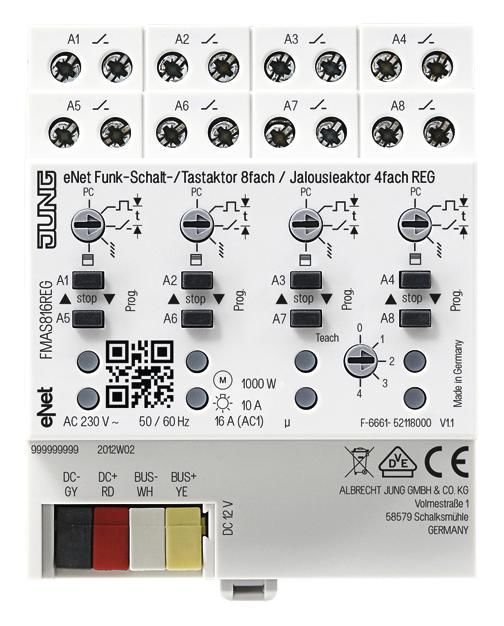

JUNG FMAS816REG wireless switch /, blinds actuator 8/4 REG

REG housing 4 TE
new system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching lighting
Switching single-phase fan motors
Controlling electrically operated curtains, such as blinds, roller shutters and awnings
Operation with suitable eNet radio transmitters
Operation with power supply 12 V REG (item no. NT 1220 REG VDC) and eNet radio receiver module REG (item no. FM FK 32 REG) or eNet server
Installation on top hat rail according to DIN EN 60715 in sub-distribution board
Product features
Operating mode switch for pairwise switching of switching actuator, touch actuator, blind actuator, roller shutter actuator or parameterization via eNet server
Status feedback to radio transmitter
Scene operation possible
Outputs can be switched with Prog button
Status display of outputs via LED
Switching mode:
Switch-on telegram: Device switches on
Switch-off telegram: Device switches off
Touch operation:
The relay contact remains closed as long as switch-on or switch-off telegrams are received
The maximum switch-on time is 60 seconds
'Blinds/roller shutter' operating mode:
Positioning of blinds and slats via scene call
Position for sun protection and twilight can be saved
Curtain running time can be saved
Slat reversal time can be saved
Fabric tightening for awnings
Can be set with eNet server in switch/touch mode:
Operating mode can be set individually for each output
Flashing function
Follow-up time
Switch-on/off delay Normally
open or normally closed operation
Switch-off warning
Minimum switching repetition time
Operating locks Permanently
on, permanently off
Can be set with eNet server in 'Blinds/roller shutter' operating mode:
Reversal time when changing direction
Direction of travel can be inverted
Position for sun protection, twilight, lock-out protection and wind alarm
Additional functions with eNet server:
Fully encrypted radio transmission (AES-CCM) from eNet server software version 2.0
Update of device software
Error memory read
Nominal voltage: AC 230 V ~, 50/60 Hz
Ambient temperature: ?5 ... +45 °C
Switching voltage: AC 250 V ~
Minimum control time in operating mode
Blind: 0.1 s
Roller shutter: 0.3 s
Running time: 1 ... 600 s
Factory setting running time: 120 s
Slat adjustment time: 0 ... 10 s
Switching current per output at AC 230 V ~
Ohmic: 16 A (AC1)
For switching current

10 A connecting cable 2.5 mm2

Fluorescent lamps: 4 AX
Switching current of adjacent load outputs: ? 20 A
Current carrying capacity device: max. 80 A
Contact type: µ
Standby power: max. 0.5 W
Connected load per output:
Motors: 1000 W
Incandescent lamps: 2300 W
HV halogen lamps: 2000 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 500 W
Compact fluorescent lamps: typically 500 W
Fluorescent lamps uncompensated: 920 VA
Capacitive load: 690 VA (560 µF)
Connection outputs
Connection type: Screw terminals
single-wire: 1 x 1.5 ... 4 mm2
fine-wire without wire end ferrule: 1 x 0.75 ... 4 mm2
fine-wire with wire end ferrule: 1 x 0.5 ... 2.5 mm2
Installation width: 72 mm (4 HP)
Bus line
Nominal voltage: DC 12 V SELV
Current consumption: 60 mA
Bus connection: Connection terminal
Cable length: max. 3 m
