JUNG ENET-SERVER ,
|
578,80 EUR |
|||||||||||
|
( 688,77 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 878503 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ENET-SERVER | ||||||||||
| UPC/EAN: | 4011377115927 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

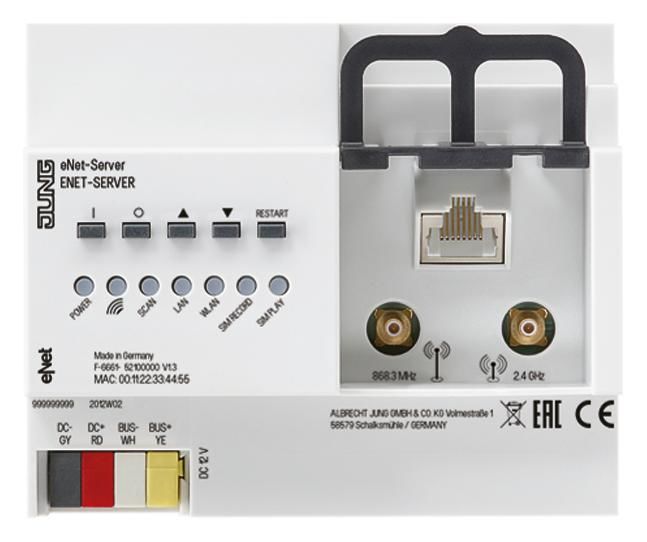

Product information for JUNG ENET-SERVER:
including plug-in power supply (item no. ST NT 12 VDC) for on-site commissioning
new system function: fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Commissioning, diagnosis and maintenance of an eNet installation via PC, tablet and laptop
Operation of an eNet installation via smartphone (iOS and Android) with eNet SMART HOME app
Radio receiver for eNet REG modules
Operation only with approved power supply
Installation on top hat rail according to DIN EN 60715 in sub-distribution board with power supply REG (item no. NT 1220 REG VDC)
Mobile use of the eNet server with power supply plug-in power supply (item no. ST NT 12 VDC)
Product features
Internal eNet radio and WLAN antenna
External eNet radio and WLAN antennas to extend the radio ranges additionally can be connected
LEDs for signaling
Buttons for construction site operation and restart of the eNet server
Galvanic isolation between the connections of the external antennas and the Ethernet connection
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Nominal voltage: DC 12 V SELV
Current consumption: 400 mA
Power consumption
Operation: max. 6 W
Standby: max. 2 W
Ambient temperature: ?5 ... +45 °C
Storage/transport temperature: ?20 ... +70 °C
Relative humidity: 20 ... 70 % (no condensation)
Protection class: III
Installation width: 108 mm (6 HP)
Connection supply:
LAN connection terminal: RJ45 socket 8-pin
WLAN antenna, external: SMB socket
Bus line
Cable length: max. 3 m
Number of REG modules: max. 32
IP communication
LAN: 10/100 Mbit/s Ethernet
WLAN: 2.4 GHz, IEEE 802.11g
IP connections: max. 8
eNet communication
Radio frequency: 868.0 ... 868.6 MHz
Transmission range in the open field: typically 100 m
Transmission power: max. 20 mW
Receiver category: 2
Questions & answers
What is the delivery time of JUNG ENET-SERVER , ?
The article JUNG ENET-SERVER , is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG ENET-SERVER to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you JUNG ENET-SERVER , always at the best possible price. We can give you a discount of 2% on JUNG ENET-SERVER , if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of JUNG ENET-SERVER , we can offer you a price of 570,12 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
