Jung BTLS1521SWW JUNG HOME SCHUKO socket
|
66,22 EUR |
|||||||||||
|
( 78,80 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2023698 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | BTLS1521SWW | ||||||||||
| UPC/EAN: | 4011377211926 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG BTLS1521SWW:
JUNG HOME SCHUKO® socket
Thermoplastic (break-proof) high gloss
Intended use
¦ Manual or automatic switching of lighting and standard household appliances
¦ Wireless connection to devices from the JUNG HOME system
¦ Use in dry indoor areas
¦ Installation in device box with dimensions in accordance with DIN 49073
¦ Depth of device box (internal dimensions): min. 53 mm
Product features
¦ Commissioning and operation via JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
¦ Button for switching
¦ Multi-colored status display with optional night mode
¦ Locking of local operation
¦ Up to 16 time programs
¦ On/off delay
¦ Integration of the load in areas (groups), central functions and scenes
¦ Activate/deactivate automatic functions via JUNG HOME app
¦ Automatic date and time update when connected to smartphone
¦ Integrated switching actuator with 16 A
¦ Bluetooth® Mesh for fully encrypted wireless communication and repeater function
¦ Can be updated via JUNG HOME app
Available in the future via update:
(Information on updates and dates can be found at jung.group/junghome)
¦ Locking and forced operation: Permanent ON/OFF or ON/OFF for a fixed time
¦ Time programs with sunrise or sunset (astrotimer)
¦ Time programs with random time
Technical data
Nominal voltage: AC 220 ... 250 V ~
Mains frequency: 50/60 Hz
Standby power: max. 0.25 W
Ambient temperature: -5 ... +45 °C
Transport temperature: -25 ... +70 °C
Storage temperature: -5 ... +45 °C
Relative humidity: 20 ... 70 % (no condensation)
Accuracy per month: ± 13 s
Power reserve: at least 4 h
Ohmic: 16 A
Motors: 4.3 A (@ cos ¿ 0.6)
Incandescent lamps: 2300 W
HV halogen lamps: 2300 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 400 W
Compact fluorescent lamps: typically 400 W
Fluorescent lamps uncompensated: 920 VA
Installation depth: 45 mm
Radio frequency: 2402.0 ... 2480.0 MHz
Transmission power: max. 10 mW (class 1.5)
in buildings: approx. 30 m

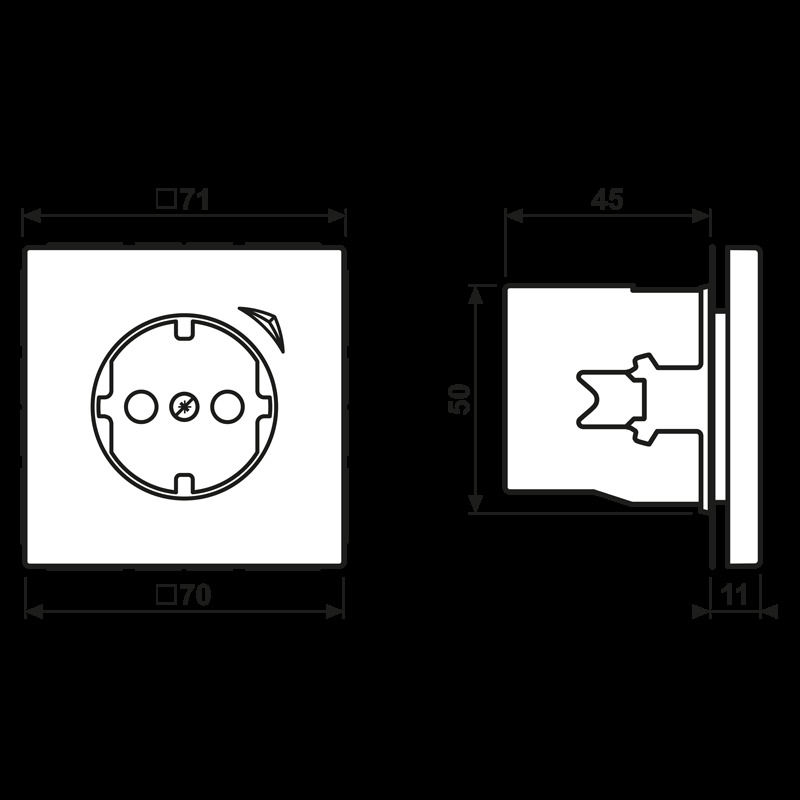

Dimensions: 70 x 70 mm
Material: Thermoplastic
Individual laser engraving possible
Colour: alpine white
Manufacturer: JUNG
Type: BTLS1521SWW
