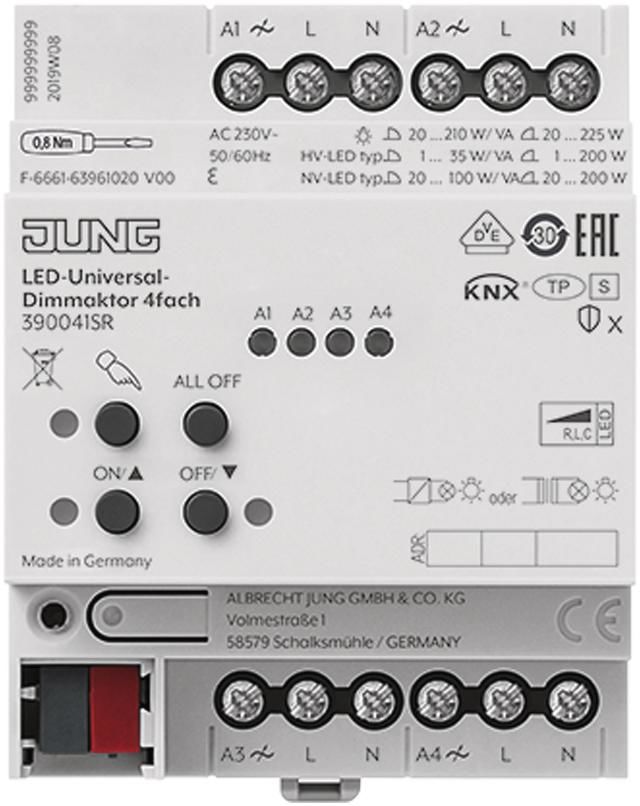

Jung 390041SR KNX LED universal dimming actuator 4-fold
|
402,03 EUR |
|||||||||||
|
( 478,42 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 1866997 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 390041SR | ||||||||||
| UPC/EAN: | 4011377179103 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG 390041SR:
1 x 855 W
REG housing 4 HP
with electronic manual operation and LED status display
Planning and commissioning with ETS5 or newer
ETS product family Lighting
Product type Dimmer
The device is KNX Data Secure compatible. KNX Data Secure offers protection against manipulation in building automation. A dedicated application is required for secure operation. Further information is available at: KNX Secure
Intended use
Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps
Installation on top hat rail in accordance with DIN EN 60715 in sub-distribution boards
Product features
Outputs can be operated manually, construction site operation
Feedback in manual mode and in bus mode
Locking of individual outputs manually or via bus
Status feedback
KNX Data Secure compatible from ETS 5.7.3
Can be updated with ETS service app
Properties Dimming operation
Automatic or manual setting of the dimming principle that suits the load
Idle, short-circuit and overtemperature proof
Message in the event of a short circuit, power failure and overload
Feedback on the switching state and the dimming value
Configurable switch-on and dimming behavior
Time functions: switch-on, switch-off delay, Staircase light switch with advance warning function
Light scene operation
Status display of the outputs via LED
Operating hours counter
A power failure lasting longer than approx. 5 seconds switches off the dimmer actuator. Depending on the parameter setting, the connected load is re-measured after the power is restored.
Increase in output power possible by connecting several outputs in parallel Power can
be increased using power add-ons (item no. ULZ 1755 REG)
Optional accessories: LED compensation module, item no.: KM LED 230 U
Properties Logic
Logic gate
Converter (conversion)
Blocking
element Comparator
Limit switch
Nominal voltage: AC 110 ... 230 V ~
Mains frequency: 50/60 Hz
Power loss: max. 7 W
Standby power: approx. 0.16 W per channel
Ambient temperature: ?5 ... +45 °C
Storage/transport temperature: ?25 ... +70 °C
Lamp loads
Connected load 230 V per output
If the connected load is reduced to 110 V, the lamp loads are halved.
Leading edge
incandescent / HV halogen lamps 20 ... 210 W
Inductive transformers: 20 ... 210 VA
Electronic transformers: 20 ... 210 W
Dimmable LV LED lamps: 20 ... 100 VA
Dimmable HV LED lamps: 1 ... 35 W
Dimmable compact fluorescent lamps: 20 ... 80 W
Trailing edge
incandescent / HV halogen lamps 20 ... 225 W
Electronic transformers: 20 ... 225 W
Dimmable LV LED lamps: 20 ... 200 VA Dimmable
HV LED lamps: 1 ... 200 W
Dimmable compact fluorescent lamps: 20 ... 150 W
Mixed loads
Capacitive-inductive: not permitted
Installation width: 72 mm (4 HP)
KNX
KNX medium: TP 256
Commissioning mode: S-mode
Nominal voltage KNX: DC 21 ... 32 V SELV
Current consumption KNX: 15 mA
Connection
Connection type: Connection terminal
single-wire: 1 x 0.5 ... 4 mm2
fine-stranded without wire end ferrule: 1 x 0.5 ... 4 mm2
fine-stranded with wire end ferrule: 1 x 0.5 ... 2.5 mm2
Type: 390041SR
