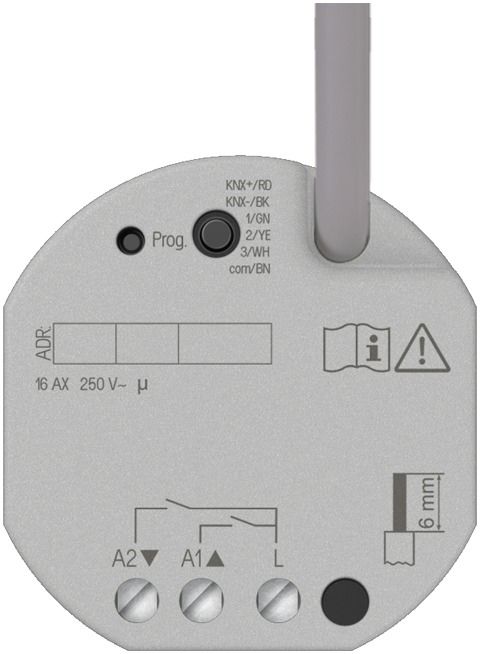

Jung 230021SU KNX switching actuator 2-fold KNX blind actuator 1-fold UP Secure

ETS product family Output
Product type Binary output 2-way
The device is KNX Data Secure compatible. KNX Data Secure offers protection against manipulation in building automation. A dedicated application is required for secure operation. Further information is available at: KNX Secure
Intended use
Switching electrical consumers via relay contacts with a common reference potential
Switching electrically operated blinds, roller shutters, awnings and similar hangings
Reading in switching states of installation switches or buttons and other potential-free contacts at inputs 1...3
Signal evaluation of condensation sensors (item no.: BTS 01) and leakage sensors (item no.: LES 01) at inputs 1...3
Recording temperature values via NTC temperature sensors (item no.: FF 7.8) at input 3
Installation in device box in accordance with EN 60670-1
Product features
Output can be operated via KNX telegrams or extension inputs
Three extension inputs for connecting potential-free contacts or condensation/leakage sensors. NTC temperature sensors can be connected to input 3.
Supply via bus, no additional supply voltage required
KNX Data Secure compatible from ETS 5.7.3
Updateable with ETS service app
Properties Switch operation
Normally open or normally closed operation
Feedback function
Linking and forced operation function
Central switching function with collective feedback
Time functions: On, off delay, staircase light switch with advance warning function
Scene function
Operating hour counter
Properties Blind operation
Suitable for AC motors 110 ... 230 V
Operating modes 'Blind with slats', 'Roller shutter/awning', 'Ventilation flap/skylight' Blind
position can be controlled directly
Slat position can be controlled directly
Feedback on driving status, blind position and slat position
Forced position by higher-level control
Safety function: Rain alarm, frost alarm, 3 independent wind alarms
Sun protection function with automatic heating/
cooling Locking function (lock-out protection)
Properties Extension input
Operating functions Switching, dimming (incl. color temperature dimming), blind control, value transmitter (1-byte, 2-byte, 3-byte and 6-byte incl. RGBW and color temperature settings), scene extension etc.
Lock function
Debounce time adjustable
Properties Logic
Logic gate
Converter (conversion)
Blocking element
Comparator
Limit switch
Type: 230021SU
