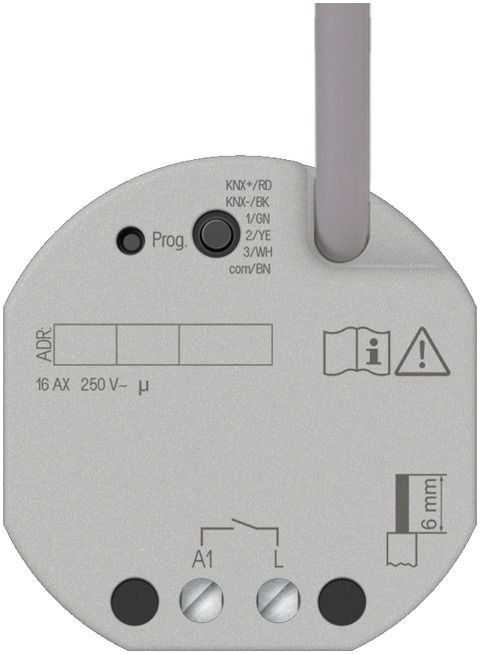

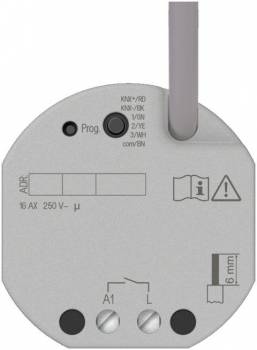

Jung 23001 1S U KNX switching actuator 1-gang UP Secure

ETS product family Output
Product type Binary output 1-way
The device is KNX Data Secure compatible. KNX Data Secure offers protection against manipulation in building automation. A dedicated application is required for Secure operation. Further information is available at: KNX Secure
Intended use
Switching electrical consumers via relay contact
Reading in switching states of installation switches or buttons and other potential-free contacts at inputs 1...3
Signal evaluation of condensation sensors (item no.: BTS 01) and leakage sensors (item no.: LES 01) at inputs 1...3
Recording temperature values via NTC temperature sensor (item no.: FF 7.8) at input 3
Installation in device box in accordance with EN 60670-1
Product features
Output can be operated via KNX telegrams or extension inputs
Three extension inputs for connecting potential-free contacts or condensation/leakage sensors. NTC temperature sensor can be connected to input 3.
Supply via bus, no additional supply voltage required
KNX Data Secure compatible from ETS 5.7.3
Can be updated with ETS service app
Properties Switch operation Normally
open or normally closed
operation Feedback function
Linking and forced operation function
Central switching function
Time functions: On, off delay, staircase light switch with advance warning function
Scene function
Operating hours
counter Properties extension input
Operating functions Switching, dimming (including color temperature dimming), blind control, value transmitter (1-byte, 2-byte, 3-byte and 6-byte including RGBW and color temperature specifications), scene extension, etc.
Locking function
Debounce time adjustable
Properties Logic
Logic gate
Converter (conversion)
Locking element
Comparator
Limit switch
Type: 23001 1S U
