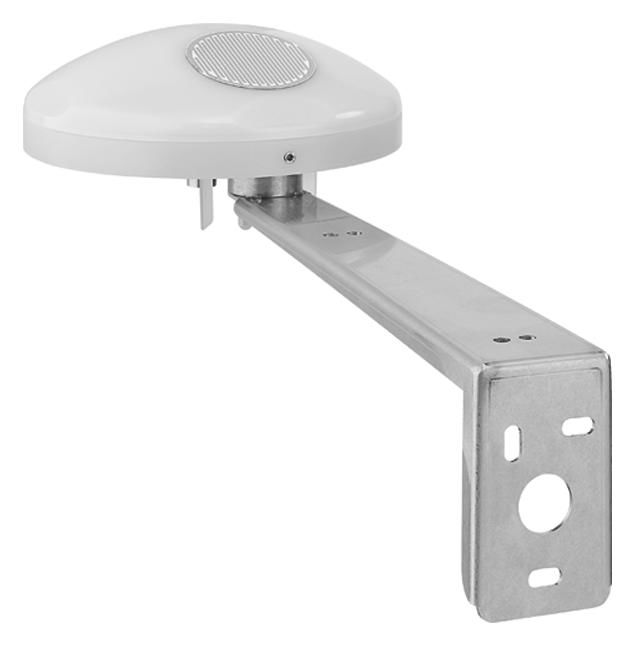

JUNG 2225WSU KNX weather station universal

Your rating:
Average rating
product review for JUNG 2225WSU KNX weather station universal
( 4.7 / 5 ) 9 ratings
JUNG 2225WSU
This image may differ from the desired article.
JUNG 2225WSUJUNG 2225WSU
947,69 EUR 987,59 EUR
( 1.127,75 EUR incl. VAT )
≈ £793.22  |  ≈ $1,041.51
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 1 workdaysinfo_outline
In Stock: 5 pieces
1x JUNG 2225WSU KNX weather station universal
Lieske Part No.:186201
Mfg Part No: 2225WSU
UPC/EAN: 4011377127562
Weight:0.995 kg
Type:2225WSU

Product information for JUNG 2225WSU:

The JUNG 2225WSU is a KNX weather station for outdoor use on buildings, particularly on roofs and facades. It is designed for measuring and evaluating various meteorological parameters and integrates into KNX-based home automation systems. The device features a compact housing and is designed for outdoor mounting, providing the necessary sensors for comprehensive weather data acquisition.

Applications

The weather station is designed for integration into intelligent building automation systems, particularly in installations operating on KNX protocols. It is suitable for buildings with automated ventilation, heating, shading, and lighting systems, where environmental conditions are used to control technical installations. The measurement data can be used, for example, to automatically adjust blinds, ventilation units, or heating systems according to current weather conditions.

Functions and Equipment in Detail

The 2225WSU measures basic weather parameters such as wind speed, wind direction, precipitation, brightness, global radiation, dusk, temperature, relative humidity, and air pressure. Additionally, the device calculates further meteorological values from the measured data, including absolute humidity, feels-like temperature, and comfort level. An integrated GPS/GLONASS receiver enables automated position determination, which is relevant for accurate sensor calibration and geographical assignment of measurement data. The station features an integrated heater that protects the sensors at low temperatures and ensures measurement accuracy.

Technology Explained Simply

The weather station is equipped with an integrated bus coupler that enables direct communication with the KNX bus. This bus serves as the data and control line for networking home automation systems. The measurement values are continuously recorded and can be linked and processed via software logic modules in the ETS platform (Engineering Tool Software). The shading control function allows blinds or awnings to be automatically adjusted according to brightness and solar radiation. The measurement data acquisition and threshold monitoring enables the definition of limit values, and when these are exceeded, specific actions can be triggered, for example, shutting off ventilation systems during heavy rain.

Compatibility and Accessories

The weather station is part of the ETS product family Phys. Sensors and requires an additional power supply for reliable operation, available under article number WSSV10. This power supply delivers 24 VAC and is specifically designed for the weather station and analog inputs. Replacement parts include the mounting arm (art. no. 2225 BFA) and the connection cable (art. no. 2225 CAB), which are used for maintenance or component replacement.

Installation and Mounting

Installation takes place outdoors, preferably on roof or facade surfaces, to ensure representative acquisition of environmental conditions. The device is installed using the included mounting arm and connection cable. Connection to the KNX bus is made via the integrated bus coupler.

Operational Advantages

The 2225WSU provides comprehensive data acquisition for controlling building functions. The integrated heater ensures reliable measurement even at low temperatures. Automatic position determination via GPS/GLONASS reduces manual entry of location data and increases the accuracy of weather data. Integration with software logic modules in the ETS platform enables flexible and application-specific use of measurement values in building automation.

Batteries are not included in the delivery scope.

General
ETS product familyPhys. Sensors
Product typeWeather station
Measurement parameterswind speed, wind direction, precipitation, brightness, global radiation, twilight, temperature, relative humidity, air pressure
Calculated weather dataAbsolute humidity, perceived temperature, comfort
Integrated technologyGPS/GLONASS receiver, bus coupler, integrated heater
FunctionsShading control, measurement data acquisition, limit value monitoring, software logic modules
Operating voltage24 VAC
Accessoriespower supply WSSV10, mounting arm 2225 BFA, connection cable 2225 CAB
