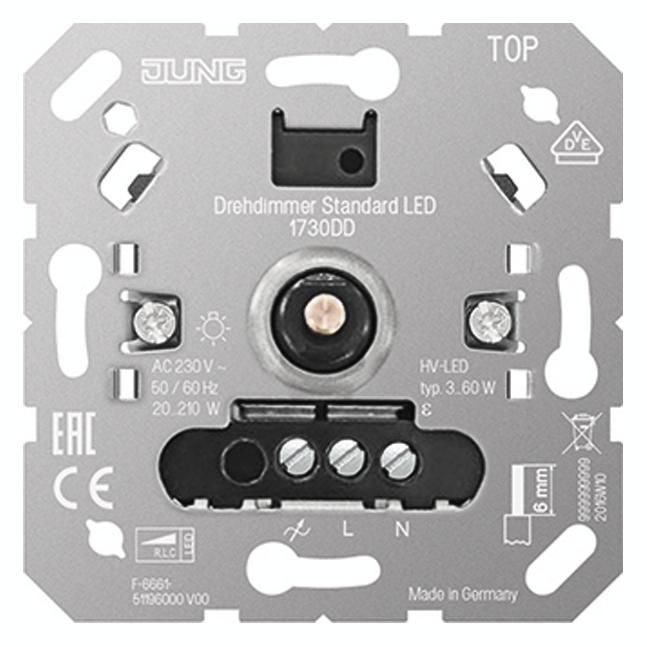

Jung 1730DD rotary dimmer Std.LED
|
84,45 EUR 88,00 EUR |
|||||||||||
|
( 100,50 EUR incl. VAT ) ≈ £72.20 | ≈ $95.94 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Lieske Part No.: | 1349760 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 1730DD | ||||||||||
| UPC/EAN: | 4011377166974 | ||||||||||
| Weight: | 1.222 kg | ||||||||||
| Type: | 1730DD | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for JUNG 1730DD:
Switching and dimming of lighting
Operation with suitable cover
Installation in device box according to EN 60670-1
Product features
Device works according to the leading or trailing edge phase control principle
Automatic setting of the dimming principle suitable for the load
Device can be operated without a neutral conductor
Switching on using a lamp-protecting soft start
Switching on with the last set brightness or saved switch-on brightness
Switch-on brightness can be permanently saved
Minimum brightness can be permanently saved
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic overtemperature protection
Power can be expanded using power add-ons (item no. ULZ 1755 REG)
Optional accessories: LED compensation module, item no.: KM LED 230 U
with incremental encoder
without extension input
Nominal voltage: AC 230 V ~
Mains frequency: 50/60 Hz
Standby power: approx. 0.35 W
Power loss: approx. 2 W
Ambient temperature: ?5 ... +45 °C
Connected load at 25 °C
Incandescent lamps: 20 ... 210 W
HV halogen lamps: 20 ... 210 W
Electronic transformers: 20 ... 210 W
Electronic transformers with LV LED: typically 20 ... 60 W
Inductive transformers: 20 ... 210 VA
Inductive transformers with LV LED: typically 20 ... 60 VA
Dimmable HV LED lamps: typically 3 ... 60 W
Dimmable compact fluorescent lamps: typically 3 ... 60 W
Ohmic-capacitive: 20 ... 210 W
Capacitive-inductive: not permitted
Ohmic-inductive: 20 ... 210 VA
Ohmic and HV LED: typically 3 ... 60 W
Ohmic and compact fluorescent: typically 3 ... 60 W
Operation without neutral conductor: Minimum load 50 W. Does not apply to loads with HV LED and Compact fluorescent lamps.
Power additions: see instructions for power additions
Connection: screw terminals
single-wire: 1 x 0.5 ... 4.0 mm2 2 x 0.5 ... 2.5 mm2
fine-wire without wire end ferrule: 1 x 0.5 ... 4.0 mm2 2 x 0.5 ... 2.5 mm2
fine-wire with wire end ferrule: 1 x 0.5 ... 4.0 mm22 x 0.5 ... 1.5 mm2
Total length of load cable: max. 100 m
Questions & answers
What is the delivery time of Jung 1730DD rotary dimmer Std.LED?
The article Jung 1730DD rotary dimmer Std.LED is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of JUNG 1730DD to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Jung 1730DD rotary dimmer Std.LED always at the best possible price. We can give you a discount of 2% on Jung 1730DD rotary dimmer Std.LED if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Jung 1730DD rotary dimmer Std.LED we can offer you a price of 81,28 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
