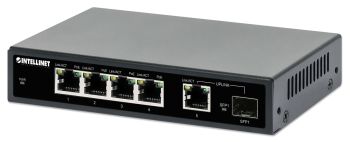

Intellinet 561822
5-port Gigabit Ethernet PoE+ switch with SFP port Four PSE PoE ports, IEEE 802.3at/af (PoE+/PoE) compliant, PoE power budget 91 W, desktop format, optional wall mounting content_copy

Desktop 5-port PoE switch with Gigabit uplink - supports 10/100/1000 Mbit/s and Power over Ethernet 802.3at
The 5-port Gigabit Ethernet PoE+ switch with SFP port from Intellinet Network Solutions delivers data and power to PoE-compatible devices via Cat5e or Cat6 network cable. Equipped with five Gigabit Ethernet ports – four of which have high-power PoE+ PSE ports — This switch can power WLAN access points, bridges, VoIP phones, IP cameras and more and deliver network speeds of up to 1000 Mbit/s.
High-power PoE+ with up to 30 watts of output power per port
This switch supports the IEEE 802.3at protocol, which allows up to 30W output power per port. IEEE802.3af or IEEE802.3at compliant devices connected to the switch do not require additional power supply, saving time and money on electrical installations. In addition, power supplies and separate power cables, which cause unsightly tangles of cables, especially when installing end devices on ceilings and walls, are no longer necessary. Any combination of PoE and non-PoE devices is supported; The PoE protection function against short circuits, overcharging and overvoltage protects your network equipment.
Gigabit uplinks
The equipment of this switch includes a Gigabit RJ45 uplink port and an SFP -Slot for transceiver modules. These gigabit uplinks are ideal for connecting to your network backbone such as a server or video capture solution (NVR).
Wall mount option
For maximum deployment flexibility This switch can also be attached to the wall using its four mounting holes. Alternatively, its four rubber feet ensure non-slip stability in desktop applications.
- Power and data connection for up to four PoE network devices

• Four RJ45 PoE ports with 10/100/1000 Mbit/s, IEEE 802.3at/af compliant as well as a Gigabit RJ45 port and a Gigabit SFP port
• PoE power budget 91 watts
• Output power up to 30 watts per port
• Saves time and installation costs thanks to the Transmission of data and power over the existing network cables
• Supports IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit protection ,Overload and overvoltage
• 12Gbps switching capacity
• 10/100/1000 auto-sensing ports automatically detect the optimal network speed
• Auto-MDI-X and NWay auto-negotiation on all RJ45 ports
• Store-and-forward architecture
• IEEE 802.3x flow control for full duplex
• Supports 2,000 MAC address entries
• Compact desktop format with robust metal housing
• Ground point for protection from external electrical voltage spikes
• Wall mounting via rear mounting holes
• Rubber feet for non-slip use on all surfaces
• Fan-free design for quiet operation
• Fully NDAA compliant
• 3 year warranty Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (Flow Control for full duplex mode)
General

• Supported media:
• 10Base-T Cat5e UTP/STP RJ45, 8-pin.
• 100Base-TX Cat5e UTP/STP RJ45, 8-pin.
• 1000Base-T Cat5e UTP/STP RJ45, 8-pin.
• Forwarding rate: 8,928 Mpps
• Switching capacity: 12 Gbit/s
• Switch architecture: Store and Forward
• Certificates: FCC Class A, CE, RoHS
LEDs

• Power
• Connection/Activity
• PoE
Pinout RJ45 output ports

• Pin 1 : DC (+)
• Pin 2: DC (+)
• Pin 3: DC (-)
• Pin 6: DC (-)
Power

• Power supply included:
• Input: 100.0 - 240.0 VAC, 50 - 60 Hz, 2.5 A
• Output: DC, 48.0 V, 2.0 A
• PoE power budget: 91.0 watts (max.)
• Power consumption: 96.0 watts (max.)
Physical details

• Metal housing
• Dimensions (L x W x H): 86 x 153 x 29 mm
• Net weight: 800 g
• Gross weight: 925 g
• Ambient temperature during operation: 0 - 40°C
• Ambient temperature during storage: -10 - 70°C
• Humidity during operation: 20 - 85% RH, non-condensing
• Storage humidity: 5 - 90% RH, non-condensing
Scope of delivery

• 5-port Gigabit Ethernet PoE+ switch with SFP port
• Power supply
• Power cable
• Four rubber feet
• Quick guide Color: Black Product dimensions: 86 (L) x 153 (W) x 29 (H) [mm]
