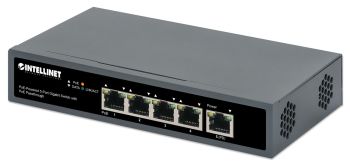

INTELLINET 561808
PoE-Powered 5-Port Gigabit Switch with PoE Passthrough One PoE++ IEEE 802.3bt (4PPoE) PD PoE port with 95W input power

four PSE PoE ports, PoE power budget up to 65 W, IEEE 802.3at/af compliant, desktop format, optional wall mounting
Power over Ethernet with added value thanks to PoE passthrough:
The PoE-Powered 5-Port Gigabit Switch with PoE Passthrough from Intellinet Network Solutions is flexible in its power supply: either via the included power supply or via a Cat5e/Cat6 network cable from a PoE switch/PoE injector, the latter even with PoE++ support. This allows you to conveniently bring data and power to PoE devices such as WLAN access points, VoIP phones and IP cameras, even over long distances.
Can be used as a PoE extender:
Thanks to its PoE passthrough technology, this switch doubles the range between the PoE source and the end device from 100 m to 200 m. This means you remain independent of sockets along this route, save power cables and deliver up to 30 W each Port to compatible devices, with a total power budget of up to 65 W.
Power over Ethernet 802.3bt Compliant:
This switch supports the IEEE 802.3bt protocol over four wire pairs (4PPoE), which allows input power up to 95 W. Together with data at gigabit speeds, it supplies IEEE 802.3at or IEEE 802.3af-compliant devices.
The perfect workgroup switch:
When you connect the PD port (Port 5) to the PSE port of a PoE injector or switch, the power is used to power the product and the excess is passed on to end devices such as VoIP phones. This allows you to exploit the full potential of the PSE ports in your data center.
Gigabit speed instead of a bottleneck:
Five 10/100/1000 auto-sensing Gigabit Ethernet RJ45 ports automatically detect the optimal network speed and, in combination with the 10 Gbit/s switching capacity, deliver plenty of performance to your PCs and other network devices.
Wall mounting option:
For maximum flexibility of use, this switch can also be mounted on the wall using its four mounting holes. Alternatively, its four rubber feet ensure non-slip stability in desktop applications.

• Supports up to 95 W input power from a PoE injector or PoE switch
• PoE power budget up to 65 watts via power supply or with IEEE 802.3bt connection via PD input port
• Power and data connection for up to four PoE network devices
• Doubles the connection range between PoE source and device from 100 m to 200 m
• Power supply via PoE or included power supply
• PoE power budget of 25 watts for IEEE 802.3at connection and 10 watts for IEEE 802.3af connection
• IEEE 802.3at/af -Compliant RJ45 PoE/PoE+ outputs
• Output current up to 30 watts per port
• Saves time and installation costs by transmitting data and power over existing network cables
• Supports IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection as well as short-circuit, overload and over-voltage protection
• Ground point to protect against external electrical voltage surges
• 10 Gbit/s switching capacity
• 10/100/1000 auto-sensing ports automatically detect the optimal network speed
• All RJ45 ports support Auto-MDIX (Auto Uplink)
• Supports jumbo frames up to 9 KB
• Store-and-forward architecture
• IEEE 802.3x flow control for full duplex
• Supports up to 2048 MAC address entries
• 1024 KB cache
• For wall mounting suitable
• Rubber feet for non-slip use on all surfaces
• Fan-free design for quiet operation
• Fully NDAA compliant
• 3 year warranty Standards
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3bt (PoE++/4PPoE Power over Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (Flow Control for full duplex mode)
General

• Supported media:
• 10Base-T Cat3, 4, 5 UTP/STP RJ45
• 100Base-TX Cat5 UTP/STP RJ45
• 1000Base-T Cat5e UTP/STP RJ45
• Packet filter/forwarding rate:
• 1,488,000 pps (1000 Mbit/s)
• 148,800 pps (100 Mbit/s)
• 14,880 pps (10 Mbit/s)
• MAC address table: 2048 entries
• Cache: 1024 kB
• Switching capacity: 10 Gbit/s
• Switch architecture: Store and Forward
• Certificates: FCC Class A, CE, RoHS, UKCA
LEDs

• Power
• Connection/Activity
• PoE
PoE pins

• Pin 1: DC (-)
• Pin 2: DC (-)
• Pin 3: DC (+ )
• Pin 6: DC (+)
power

• Power supply included:
• Input: 100.0 - 240.0 VAC, 50 - 60 Hz, 2.0 A
• Output: DC, 54.5 V, 1.32 A
• PoE power budget: 65.0 watts (max.)
• Power consumption: 72.0 watts (max.)
• Via PD port (port 5)
• Input: IEEE802.3af/at/bt compliant
• PoE power budget: 65.0 watts (max) with IEEE802.3bt input; 25.0 watts with IEEE802.3at input; 10.0 watts with IEEE802.3af input
• Power consumption: 71.0 watts (max.)
Physical details

• Metal body
• Dimensions (L x W x H): 93 x 168 x 32 mm
• Net weight: 400 g
• Gross weight: 900 g
• Operating temperature: 0 - 40°C
• Storage temperature: 0 - 70°C
• Humidity: 10 - 90% RH, non-condensing
Scope of delivery

• 5-port PoE Gigabit switch with PoE passthrough
• Power supply
• Power cable
• Four rubber feet
• Quick guide
Please note: The total PoE power budget of this switch is 65 watts when powered with the included power adapter or via IEEE 802.3bt. If all four output ports are used, the output power per port is 16 watts. The maximum output power of a single port cannot exceed 30 watts. Color: Black Product dimensions: 93 (L) x 168 (W) x 32 (H) [mm]
