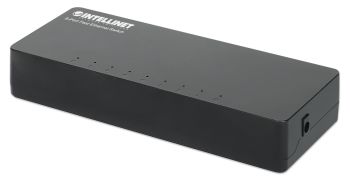

INTELLINET 561730
8-port Fast Ethernet Switch desktop format, plastic housing, IEEE 802.3az (Energy Efficient Ethernet), black
|
-16% 13,90 EUR 16,47 EUR |
|
|
( 16,54 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 1921368 |
|---|---|
| Mfg Part No: | 561730 |
| UPC/EAN: | 766623561730 |
| Weight: | 0.15 kg |
Product information for INTELLINET 561730:
The 8-Port Fast Ethernet Switch from Intellinet Network Solutions is a reliable and easy to install Solution for small office environments and home networks.
Versatile
This switch connects up to eight computers, servers, printers, switches and much more via network cables at speeds of up to up to 10 or 100 Mbit/s.
Easy installation
The installation and configuration of this switch is fully automatic and therefore as easy as classic plug < play devices. The energy-saving Green Ethernet technology deactivates unused ports - Compact switch with eight Fast Ethernet ports expands your network in no time
- Plug < Play installation - simply switch it on and use immediately
- The energy-saving Green Ethernet technology deactivates unused ports
- Eight 10/100 auto-sensing ports automatically detect optimal network speeds
- Supports any combination of 10 Mbps and 100 Mbps devices
- 1.6 Gbps switching capacity
- Supports 1,000 MAC addresses with auto-learning and auto-aging
- 448 KByte cache
- Supports jumbo frames up to 1.6 KByte
- Extremely compact design
- Fan-free design for quiet operation
- Store-and-forward architecture
- Fully NDAA compliant
- 3-year warranty Standards
- IEEE 802.3 10Base- T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE802.3x Flow Control and Back Pressure
- IEEE 802.3az (Energy Efficient Ethernet) General:
- Ports: Eight 10/100 Mbit/s RJ45
- Cable: Cat3, 4, 5 , 6 UTP/STP
- Duplex mode: All ports (up to 200 Mbit/s)
- Uplink: Auto MDI/MDX (Auto Uplink) on all ports
- Switch architecture: Store and Forward
- Forwarding rate: 1,190,000 pps
- Cache: 448 KByte
- MAC address table: 1,000 entries
- Backplane speed / switching capacity: 1.6 Gbit/s
- Jumbo frames up to 1.6 kB
- Certificates: FCC Class B, CE, RoHS LEDs
- Power
- Link/ Activity
- Speed Power
- External power supply: 5.0 V DC, 0,55A
- Power consumption: 1.26W (max.) Physical Details
- Dimensions (L x W x H): 51 x 124 x 21 mm
- Weight: 150 g Environmental Conditions
- Operating Ambient Temperature: 0 - 40°C
- Storage Ambient Temperature: -40 - 70°C
- Operating Humidity: 10 - 90% (non-condensing)
- Humidity during storage: 5 - 90% Scope of delivery
- 8-port Fast Ethernet Switch
- Power supply
- Quick guide Color: Black Product dimensions: 51 (L) x 124 (W) x 21 (H) [mm ]
