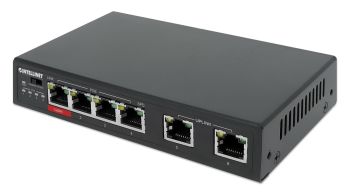

INTELLINET 561686
6-port Fast Ethernet switch with 4 PoE ports (1 x high-power PoE)

One high-power 60W PSE PoE port, three IEEE 802.3at/af PSE PoE ports, PoE power budget 65W, PoE extender mode, two RJ45 uplink ports, VLAN
A Fast Ethernet PoE switch with extender mode and Lots of PoE performance - ideal for IP camera installations:
The 6-port Fast Ethernet switch with 4 PoE ports from Intellinet Network Solutions is particularly suitable for IP camera installations thanks to its special features. A manual PoE extender mode - activated via a switch on the front panel - reduces the network speed and extends the PoE range up to 250 m, ideal for distant IP cameras and other PoE devices.
Save time and money with Power over Ethernet:
Three of the four PoE ports deliver data and power with up to 30 W each to IEEE 802.3at or IEEE 802.3af compatible PoE devices such as WLAN access points, VoIP phones and IP -Cameras. A high-power PoE port even delivers up to 60 W with a total PoE power budget of 65 watts. Connected end devices do not require any additional power supply, eliminating the time and costs of cabling. Fewer power cables and power supplies ensure a reduced, tidy look on ceilings and walls. Any combination of PoE and non-PoE devices is supported, and thanks to the short circuit, overload and overvoltage protection functions, your devices are reliably protected. For devices that are not 802.3at/af compliant (older WiFi access points or network cameras), we recommend using a PoE/PoE+ splitter from Intellinet Network Solutions.

• Power and data connection for up to four PoE network devices
• Optional PoE extender mode (reduces network speed and increases PoE range to 250 m)
• PoE extender mode ideal for IP camera installations
• A high-power PSE PoE port with output power up to up to 60 W, three IEEE 802.3at/af PSE-PoE ports with up to 30 W each
• PoE power budget 65 watts
• Two RJ45 Fast Ethernet uplink ports
• On/Off switch to activate VLAN
• Saves time and installation costs the transmission of data and power over the existing network cables
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and protection against Short circuit, overload and overvoltage
• Ground point to protect against external electrical voltage spikes
• 10/100 auto-sensing ports automatically detect the optimal network speed
• Switch Fabric 1.2 Gbit/s
• Supports 1,000 MAC addresses with auto-learning and auto-aging
• Store-and-forward architecture
• Supports IEEE 802.3x flow control at full duplex and backpressure at half duplex
• LEDs for power, link/activity and PoE
• Fan-free design for quiet operation
• Fully NDAA compliant
• 3-year warranty Standards
• IEEE 802.3 af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (Flow Control for full duplex mode)
General

• Supported media
• 10Base-T Cat5e UTP/STP RJ45, 8-pin.
• 100Base-TX Cat5e UTP/STP RJ45, 8-pin.
• Packet filter/forwarding rate:
• 148,800 pps (100 Mbit/s)
• 14,880 pps (10 Mbit/s)
• MAC address table: 1,000 entries
• Backplane speed: 1.2 Gbit/s
• Store-and-forward architecture
• Certificates: FCC Class B, CE, RoHS
LEDs

• Power
• PoE
• Link/Activity/Speed
PoE pins

• IEEE 802.3af/at
• Pin 1: DC (+)
• Pin 2: DC (+)
• Pin 3: DC (-)
• Pin 6: DC (-)
PoE pins

• Port 1 (60W)
• Pin 3: DC (+)
• Pin 4: DC (+)
• Pin 5: DC (+)
• Pin 6: DC (+)
• Pin 1: DC (-)
• Pin 2: DC (-)
• Pin 7: DC (-)
• Pin 8: DC (-)
Power supply

• Input: 100.0 - 240.0 VAC, 50 - 60Hz; DC In: 44.0 - 57.0 V
• PoE power budget: 65.0 watts
Physical details

• Metal housing
• Dimensions: 87 x 153 x 29 mm
• Weight: 410 g
• Operating temperature 0 - 40?
• Storage temperature: -10 - 70°C
• Humidity during operation: 5 - 95% RH, non-condensing
Scope of delivery

• 6-port Fast Ethernet switch with 4 PoE ports (1 x high-power PoE)
• Power supply
• Instructions Color: Black Product dimensions: 87 (L) x 153 (W) x 29 (H) [mm]
