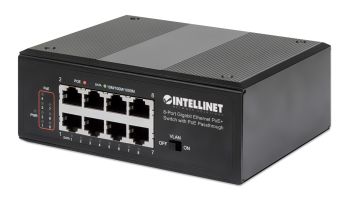

INTELLINET 561624
PoE-Powered 8-Port PoE+ Gigabit Industrial Switch with PoE Passthrough
|
-5% 151,13 EUR 159,42 EUR |
|
|
( 179,84 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |
| Lieske Part No.: | 1600331 |
|---|---|
| Mfg Part No: | 561624 |
| UPC/EAN: | 766623561624 |
| Weight: | 0.66 kg |
Further up to 8 ports from INTELLINETFurther products in category up to 8 ports
All products of INTELLINET
Product information for INTELLINET 561624:
One PD PoE port with 95W input power, seven PSE PoE ports, PoE power budget up to 120W, IEEE 802.3at/af compliant, DIN rail mounting
- Supports up to 95W input power from a PoE injector or PoE Switch
- Power and data connection for up to seven PoE network devices
- Doubles the connection range between PoE source and device from 100 m to 200 m
- Powered via PoE, power supply or industrial power supply (no power supply is included)
- PoE -Power budget up to 120 watts (depending on the power supply used)
- Saves time and installation costs by transmitting data and power over the existing network cables
- IEEE 802.3at/af-compliant RJ45 PoE/PoE+ outputs
- Output power up to 30 watts per port
- Ground point for protection against external electrical voltage surges
- Redundant power supply with two inputs (48 - 57 V) and I/O terminal block
- Port surge protection up to 6 kV
- Supports IEEE 802.3at and IEEE 802.3af compliant PoE (Wireless Access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection as well as short circuit, overcharge and overvoltage protection
- DIN rail mountable
- Tested for shock resistance (IEC 60068-2-27), free fall ( IEC 60068-2-32) and vibration (IEC 60068-2-6)
- For ambient temperatures from -20 to 75?
- On/off switch to activate VLAN
- 10/100/1000 auto-sensing ports automatically detect the optimal one Network Speed
- 16Gbps Switch Fabric
- Low power Green Ethernet technology disables unused ports and adjusts power level according to cable length
- All RJ45 ports support Auto-MDIX (Auto Uplink)
- Supports 4,000 MAC addresses with auto-learning and auto-aging
- Supports jumbo frames up to 9.2 kBytes
- Store-and-forward architecture
- Supports IEEE 802.3x flow control at full duplex and back pressure at half duplex
- LEDs for power, link/activity and PoE
- Fan-free design for quiet Operation
- Fully NDAA Compliant
- 3 Year Warranty Standards
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3af (Power over Ethernet 802.3 at Type 1)
- IEEE 802.3at (Power over Ethernet 802.3at Type 2)
- IEEE 802.3az (Energy Efficient Ethernet [EEE])
- IEEE 802.3x (Flow Control for full duplex mode) General
- Supported media:
- 10Base-T Cat5e UTP/STP RJ45, 8-pin.
- 100Base-TX Cat5e UTP/STP RJ45, 8-pin.
- 1000Base-T Cat5e UTP/STP RJ45, 8-pin.
- Packet Filter/Forwarding Rate:
- 1,488,000 pps (1,000 Mbit/s)
- 148,800 pps (100 Mbit/s)
- 14,880 pps (10 Mbit/s)
- MAC address table: 4,000 entries
- Backplane speed: 16 Gbit/s
- Store -and-forward architecture
- MTBF: >50,000 hours
- Certificates: FCC Class A, CE, RoHS LEDs
- PoE
- Power supply
- Link/Activity PoE pins
- IEEE 802.3af/at standard mode A
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-) power supply
- Via PD port (Port 8)
- Input: Ultra PoE or IEEE802.3af/at compliant
- PoE Power budget: 95 watts (max.)
- Via DC power supply
- Input: 55 V, up to 2.3 A
- DC barrel connector: outer/inner diameter 5.5 x 2.1 mm, length 9.5 mm, inner conductor ( +), phase conductor (-)
- PoE power budget: 120 watts (max.)
- Via industrial power supply
- Input: 48 - 57 V, up to 2.3 A
- PoE power budget: 120 watts (max.)
- Power consumption
- Max . 125.0 W (with external power supply)
- When powered via PoE, consumption varies according to the input power Physical details
- Metal housing
- Dimensions: 138 x 108 x 50 mm
- Weight: 673 g
- Operating temperature: -20 – 75?
- Storage temperature: -40 - 75°C
- Humidity during operation: 10% - 90% RH, non-condensing
- Humidity during storage: 5% - 90% RH, non-condensing Scope of delivery
- 8-port PoE+ Gigabit industrial switch with PoE passthrough
- DIN -DIN rail mounting bracket
- Quick guide PLEASE NOTE: There is no power supply included. Color: Black Product dimensions: 108 (L) x 138 (W) x 50 (H) [mm]
