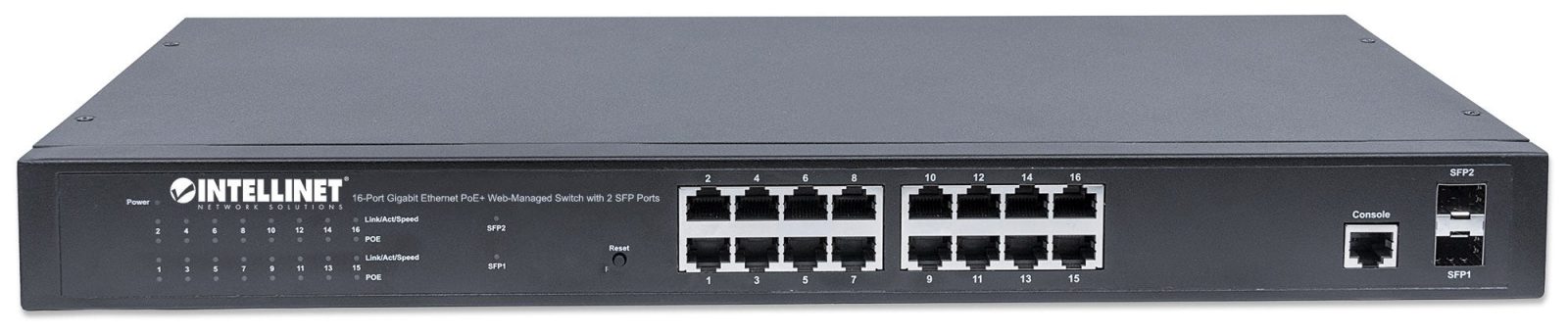

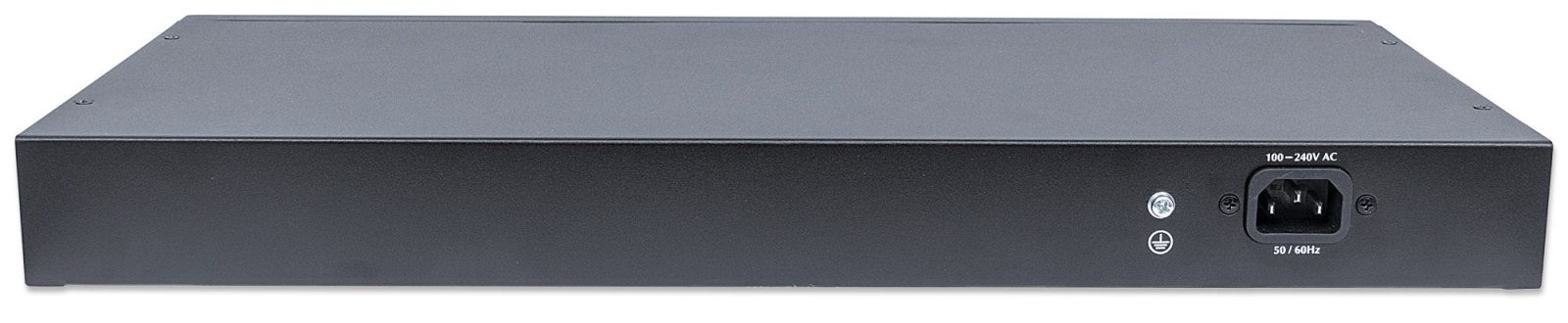

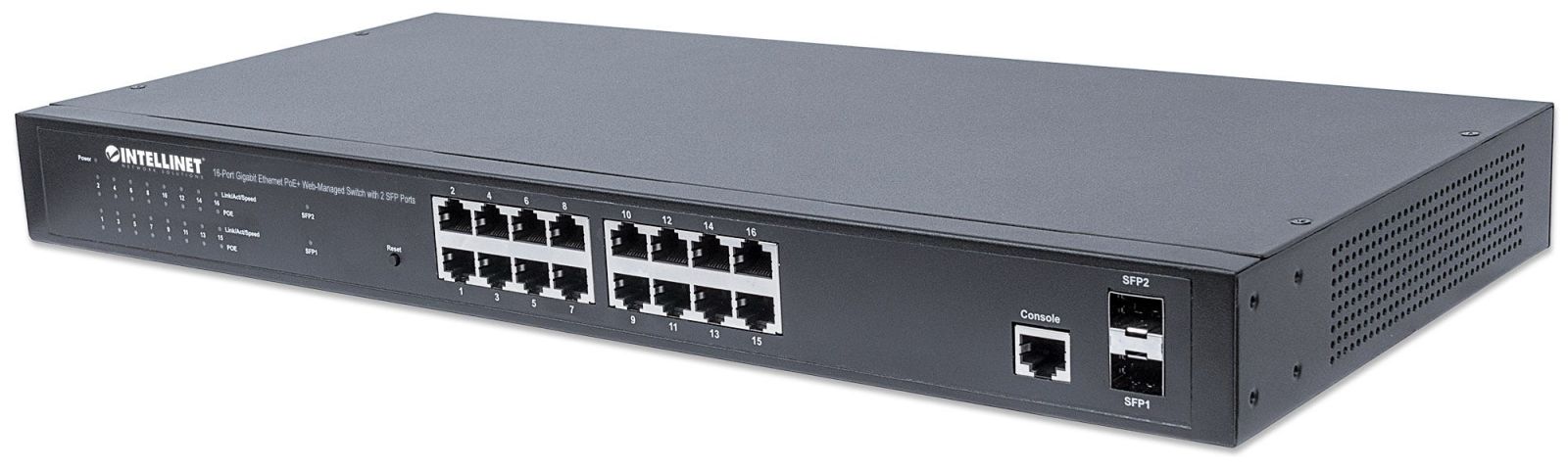

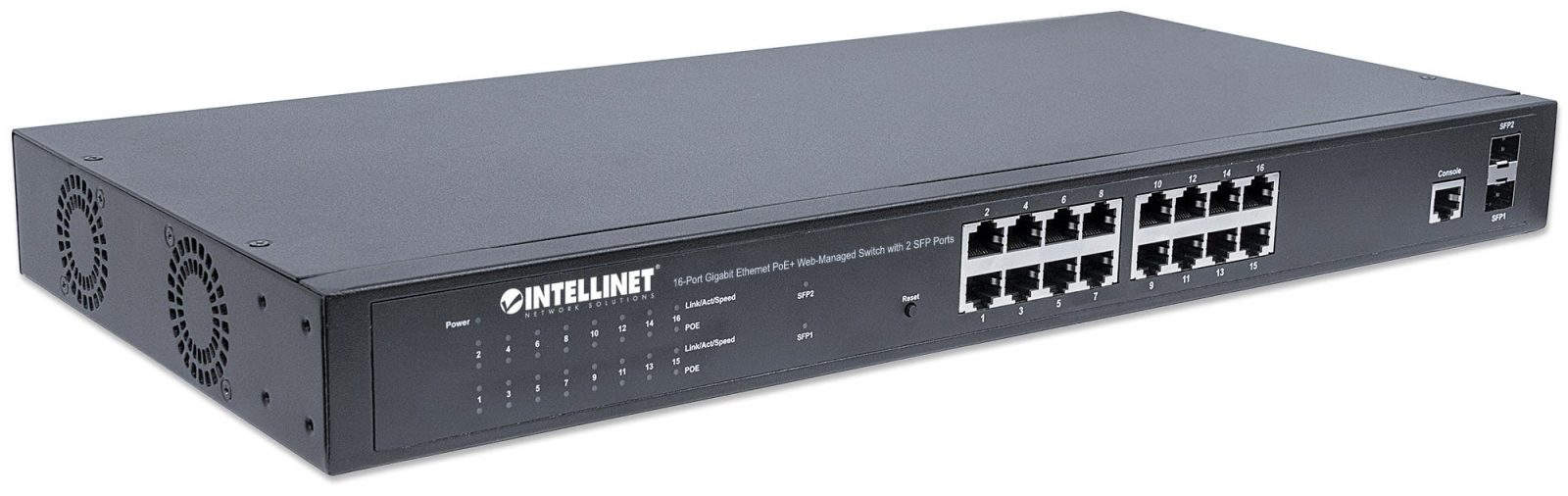

INTELLINET 16 Port Gigabit PoE+ Switch Web-Managed with 2 SFP-Ports IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Endspan Rackmount
|
248,01 EUR |
|
|
( 295,13 EUR incl. VAT ) ≈ £208.82 | ≈ $278.51 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 10 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 118415 |
| Mfg Part No: | 561341 |
| UPC/EAN: | 0766623561341 |
| Weight: | 3.822 kg |
| Certificates | |
| Certification | FCC Class A, CE |
| Data transmission | |
| Switching capacity | 36 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.512 MB |
| Store-and-forward | |
| Jumbo frames support | |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| Number of fans | 2 fan(s) |
| Rack mounting | |
| LED indicators | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | |
| Web-based management | |
| Multicast features | |
| Multicast support | |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
| Number of VLANs | 4096 |
| 10G support | |
| Port mirroring | |
| Full duplex | |
| Flow control support | |
| Link aggregation | |
| Broadcast storm control | |
| Rate limiting | |
| Auto MDI/MDI-X | |
| Spanning tree protocol | |
| Auto-sensing | |
| VLAN support | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | AC |
| Manual | |
| Rack mount kit | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 2 |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 260 W |
| Power protection features | Over voltage, Overload, Short circuit |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 220 W |
| Power over Ethernet (PoE) | |
| Protocols | |
| Management protocols | SNMP, Telnet, SSH |
| Security | |
| Security algorithms | 802.1x RADIUS, HTTPS, SSH, SSH-2 |
| Authentication | Port-based authentication |
| Access Control List (ACL) | |
| IGMP snooping | |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 208 mm |
| Height | 44 mm |
| Weight | 3.86 kg |
Questions & answers
What is the delivery time of INTELLINET 16 Port Gigabit PoE+ Switch Web-Managed with 2 SFP-Ports IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Endspan Rackmount?
The article INTELLINET 16 Port Gigabit PoE+ Switch Web-Managed with 2 SFP-Ports IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Endspan Rackmount is currently in stock
According to our experience the article is ready for dispatch within 10 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Intellinet 561341 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you INTELLINET 16 Port Gigabit PoE+ Switch Web-Managed with 2 SFP-Ports IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Endspan Rackmount always at the best possible price. We can give you a discount of 2% on INTELLINET 16 Port Gigabit PoE+ Switch Web-Managed with 2 SFP-Ports IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Endspan Rackmount if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
