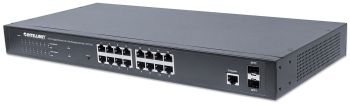

INTELLINET 561341
16-port Gigabit Ethernet PoE+ web-managed switch with 2 SFP ports IEEE 802.3at/af Power over Ethernet (PoE+/PoE) compliant, 220 W, end span, PDM function, 48,3 cm ( 19 inch ) rackmount

Save time and money with Power over Ethernet
The Intellinet 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP ports (561341) is an excellent solution for the ;Transfer data and power to PoE-compatible devices via Cat5e or Cat6 network cable. Equipped with 16 Gigabit ports (all with support for 802.3at/af PoE/PoE+), this switch provides power to access points and bridges, VoIP phones, IP cameras and much more, while also providing power. delivers transmission speeds of up to 1000 Mbit/s.
Power over Ethernet 802.3at
This switch supports the IEEE 802.3at protocol and thus delivers up to 30 watts of power per port* . IEEE802.3af or IEEE802.3at compliant devices that connect to the switch do not require additional power supply, saving significant cost and time on laying power lines and a lot of clutter of cables and adapters Exposed areas such as walls and ceilings are no longer required. Any combination of PoE and non-PoE devices is supported and your equipment is well protected thanks to protection against short circuits, overloads and surges. For devices that do not support the 802.3at/af standard (older access points or network cameras), we recommend using an Intellinet PoE/PoE+ splitter.
Gigabit speed instead of a bottleneck
Equipped with 16 auto-sensing 10/100/1000 Mbit/s RJ45 Gigabit Ethernet ports, the 16-port PoE Web-Managed Desktop Gigabit Switch offers huge performance for computers, servers and others Network devices.
Full Layer 2+ management features
The software features of this switch include 4k 802.1Q VLAN, Advanced Protocol VLAN and private VLAN. In addition, eight physical quality of service queues, multicast filtering, rapid spanning tree protocol, multiple spanning tree protocol (MSTP), LACP, port mirroring and advanced security features are part of the generous equipment package.
< >Advanced security features
To ensure secure management, this switch supports both protocols HTTPS and SSH. The login password and the configuration packages are additionally secured. Port binding allows a specified MAC address to be bound to a port and thus have sole access to the network.Through port-based access control via 802.1X, every user must be authorized before access. With the Layer 2+ Access Control List (ACL), this can be done either by IP or port number.
* The total PoE budget is 220 watts. The average power allocation per port is 16.6 watts, the maximum usage on a port is 30 watts. - Power and data connection for up to 16 PoE network devices

• Saves installation costs by transferring data and power over the existing network cables
• Domotz compatible for cloud management (may require firmware upgrade)
• 10/100/1000 auto-sensing ports automatically detect the optimal network speed
• Two GBIC module slots (SFP)
• IEEE 802.3at/af-k compliant RJ45 PoE /PoE+ outputs
• Output power up to 30 watts per port*
• PoE power budget 220 watts
• 36 Gbit/s Switch Fabric
• Supports IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection as well as short-circuit, overload and over-voltage protection
• All RJ45 ports support Auto-MDI/MDI-X and NWay Auto-Negotiation
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification )
• IEEE 802.3az (Energy Efficient Ethernet EEE) can be disabled
• PoE management includes PoE port settings, priority, power-on delay, PoE device restart schedule and PoE device monitoring
• The Powered Device Monitor feature (PDM) monitors all connected PoE devices and restarts them if inactive
• SNMP Management and Remote Monitoring (RMON)
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 < 9
• IPv4/v6 Dual Protocol
• Supports VLAN (Tag- and port-based)
• Provides IEEE 802.1x port-based security
• Supports link aggregation (trunking)
• Supports port-based bandwidth control
• Supports port mirroring
• Supports two types of QoS: port-based and DSCP
• Broadcast storm control with multicast packet rate settings
• 512 Kbyte cache
• Supports 8,000 MAC address entries
• Supports jumbo frames up to 9 KByte
• Supports Rapid Spanning Tree/Spanning Tree Protocol
• Store-and-forward architecture
• Full/half duplex operation
• IEEE 802.3x flow control at full duplex
• Configuration via web browser, Telnet or SSH
• Reboot/restart via remote control
• LEDs for power, link/activity and PoE
• Two high-performance fans ensure perfect cooling and air circulation
• Fully NDAA compliant
• 3-year warranty Standards
• IEEE 802.1d (Spanning Tree Protocol)
• IEEE 802.1p (Traffic Prioritization)
• IEEE 802.1q (VLAN Tagging)
• IEEE 802.1w (Rapid Spanning Tree Protocol)
• IEEE 802.3ad (Link Aggregation)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
• IEEE 802.3ad (Link Aggregation Control Protocol LACP)
• IEEE 802.3az (Energy Efficient Ethernet EEE)
• IEEE 802.3af (Power over Ethernet 802.3at Type 1)
• IEEE 802.3at (Power over Ethernet 802.3at Type 2)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (flow control, in full duplex mode )
General

• Supported media:
• 10Base-T Cat3, 4, 5 UTP/STP RJ45
• 100Base-TX Cat5 UTP/STP RJ45
• 1000Base-T Cat5e UTP/STP RJ45
• Packet Filter/Forwarding Rate:
• 1,488,000 pps ( 1,000 Mbps)
• 148,800 pps (100 bps))
• 14,880 pps (10 Mbps))
• MAC addresses: 8,000
• Cache: 512 kBytes
• Backplane speed: 36 Gbit/s
• Store-and-forward architecture
• Configuration options:
• Port connection speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation
• PoE on/off per port
• PoE max. output power per port
• PoE mode per port
• PoE port priority
• PoE Device monitoring
• flow control on/off per port
• VLAN
• rate limiting (ingress rate and egress rate)
• port mirroring
• port isolation
• port aggregation/LACP: 8 groups
• broadcast storm configuration with broadcast rate, multicast rate, and flooded unicast Rate
• Quality of Service (QoS): port-basiet or DSCP
• Link Layer Discovery Protocol (LLDP) - Station and Media Access Control Connectivity Discovery
• Integrated ICMP Ping client sends ping requests to other network nodes
• SNMPv1/v2c/v3 (Simple Network Management Protocol)
• RMON (1,2,3 < 9 groups)
• LAN settings (IP address, gateway, etc.)
• SSHv2
• TACAS+
• Pin assignment RJ45 output ports (data + power)
• IEEE Alternative B
• Requires 8-pin RJ45 network cable
• Pin 1: Rx+ (data reception)
• Pin 2: Rx- (data reception)
• Pin 3: Tx+ (data transmission)
• Pin 4: -Vdc_return (+) (Power [ +])
• Pin 5: -Vdc_return (+) (Power [+])
• Pin 6: Tx- (data sending)
• Pin 7: -Vdc (Power [-])
• Pin 8: -Vdc (Power [ -])
• Certificates: FCC Class A, CE
LEDs

• PoE
• Power
• Connection/Activity
Power

• Input: 100 - 240 VAC, 50 - 60 Hz
• Power consumption: 260 watts (max.)
General

• Metal housing
• Dimensions: 440 ( W) x 208 (L) x 44 (H) mm
• Weight: 2.5 kg
• Operating temperature: 0 - 40°C
• Humidity: 10 - 90% RH, non-condensing
• Storage temperature: -20 - 90°C
Scope of delivery

• 16 -Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP ports
• Power cable
• Manual
• 48,3 cm ( 19 inch ) mounting bracket Color: Black Product dimensions: 208 (L) x 440 (W) x 44 (H) [mm]
