INTELLINET 561266
2-Port Gigabit High-Power PoE+ Extender IEEE 802.3at/af PoE+/PoE, extends the range of a PoE connection by an additional 100 meters, 2 PSE ports, metal
|
52,25 EUR 53,15 EUR |
|
|
( 62,18 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1138221 |
|---|---|
| Mfg Part No: | 561266 |
| UPC/EAN: | 766623561266 |
| Weight: | 0.24 kg |
Product information for INTELLINET 561266:

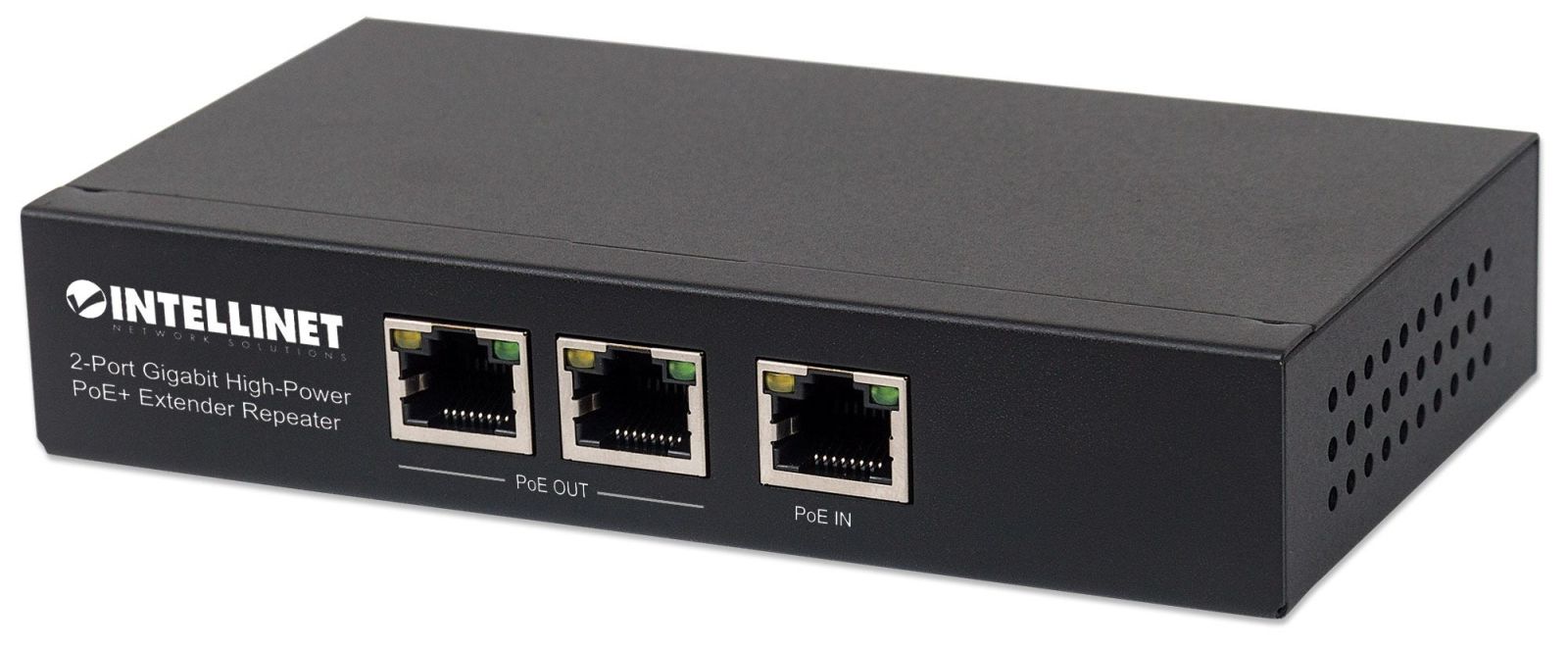

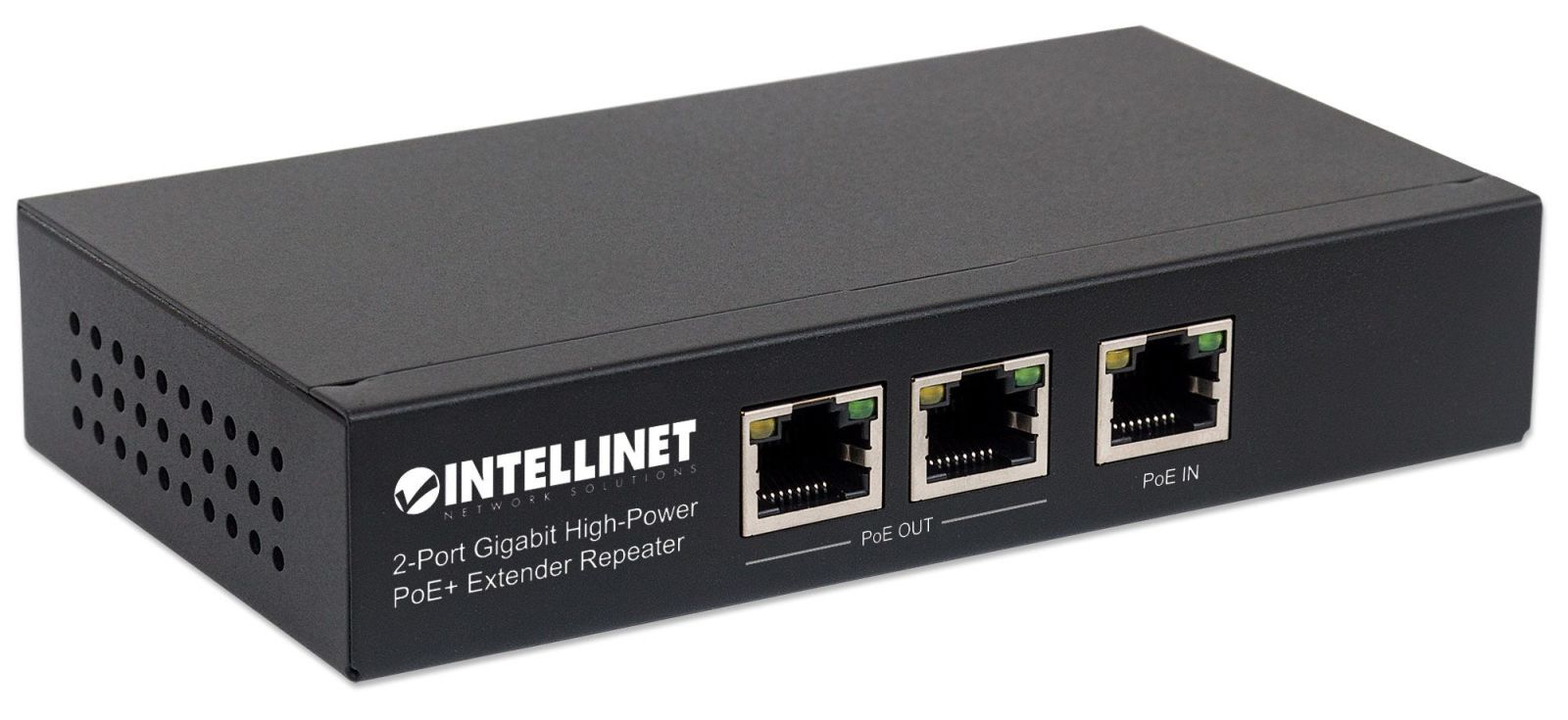

The Intellinet 2-Port Gigabit High-Power PoE+ Extender, model 561266, extends the range of a connection between a PoE source and two PoE end devices An additional 100 m via Cat5 or Cat6 cable. This overcomes the 100 m range limitation that normally limits PoE connections. No power supply is required for power; the extender draws power directly from the PoE source.
Less cabling costs
Access points, cameras and VoIP telephones that would otherwise be too far away from your switch or injector to power you via PoE are within reach with this extender. This saves you time and money on power cables and sockets that you would have to lay without PoE.
Power over Ethernet 802.3at compliant
This Gigabit high-power PoE+ extender supports the IEEE 802.3at protocol. It transports data at up to 1000 Mbit/s and power at up to 30 watts. It is also backwards compatible with IEEE 802.3af PoE devices. The cable length at both ends can be up to 100 m for a total data and power range of 200 m.
Easy Installation

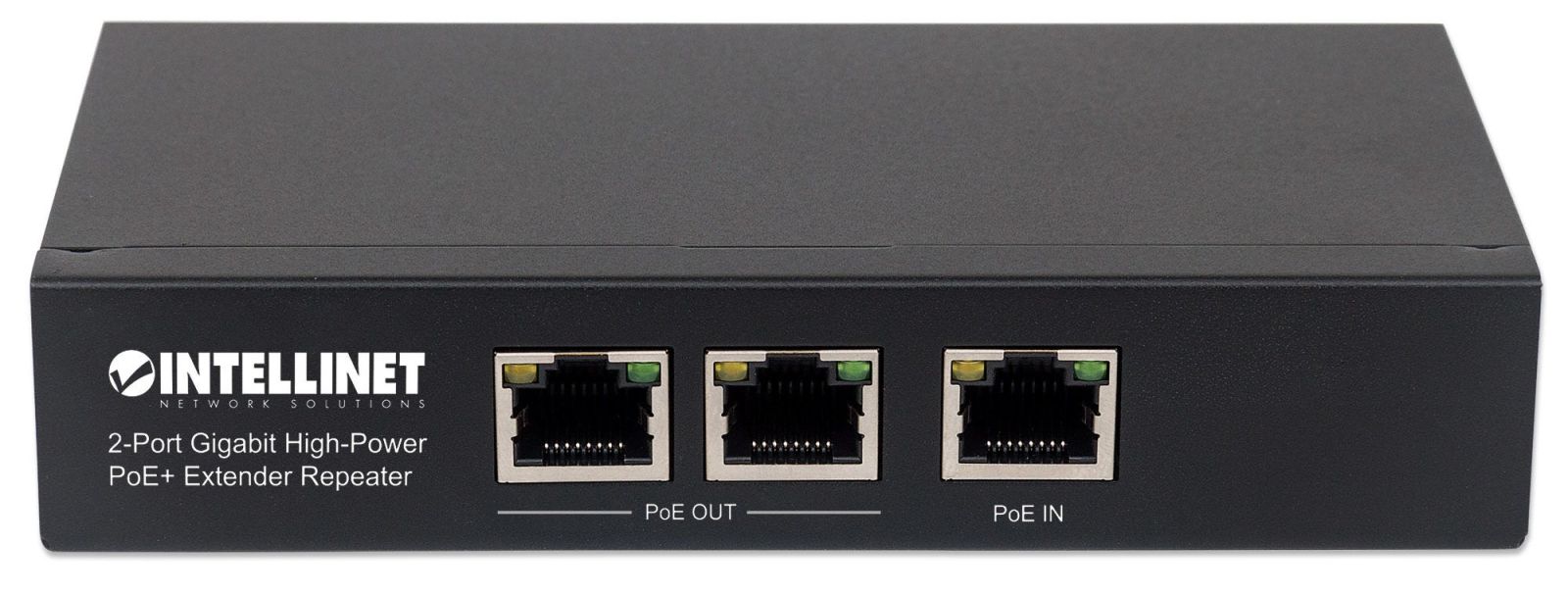

Simply connect your PoE Injector or PoE switch to the “PoE In” port and the PoE end devices such as VoIP telephone or camera to the “PoE Out” ports. That's all. No further configuration is necessary. You can mount the extender on the wall or ceiling using the two mounting holes on the bottom of the robust, compact metal housing. - Power supply and network connection for two PoE devices such as network cameras, access points or VoIP phones through PoE injector or PoE switch
- Doubles the connection range between PoE source and device from 100 m to 200 m
- Saves time and installation costs by transmitting data and power over the existing network cables
- Supports 10/100/1000 Mbit/s -Transmission rates and provides up to 25 W for connected PoE devices
- Power is only transmitted to IEEE 802.3af/at-compliant devices, non-PoE-capable devices only receive data
- Does not require an additional power supply; draws power directly via the PoE input
- Compatible with IEEE 802.3at/af-compliant PoE injectors and switches (PSE)
- Compatible with all IEEE 802.3at/af-compliant Powered Devices (PD)
- 3-port Gigabit switch with PoE power supply and PoE passthrough
- 6 Gbit/s switching capacity
- Supports jumbo frames up to 9 kByte
- Supports 2048 MAC address entries
- LEDs for PoE and data connection
- Fan-free design for quiet operation
- Compact metal housing
- Mounting holes on the bottom for optional wall or ceiling mounting
- Fully NDAA compliant
- 3 year warranty Standards
- IEEE 802.3af (Power over Ethernet )
- IEEE 802.3at (High-Power PoE+ Power over Ethernet)
- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3ab (Gigabit Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet) General:
- Supported media:
- 100Base -TX Cat5 UTP/STP RJ45, 8-pin.
- 1000Base-T Cat5e UTP/STP RJ45, 8-pin.
- Ports:
- 1 x RJ45 10/100/1000 Mbit/s input port for 48V IEEE 802.3af/at compliant signal
- 2 x RJ45 10/100/1000 Mbit/s PoE output port
- MAC address table: 2048 entries
- Cache : 256 kB
- Backplane speed: 6 Gbit/s
- Store-and-forward architecture
- Certificates: FCC Class A, CE LEDs
- PoE
- Link/Activity PoE pins
- IEEE 802.3af Standard Mode A
- Pin 1: DC (+)
- Pin 2: DC (+)
- Pin 3: DC (-)
- Pin 6: DC (-) current
- Max. PD output power: 25 W
- Input power: IEEE 802.3af/at compliant PSE, 30 W max., 52-55 V Physical details
- Metal housing
- Dimensions: 77 (L) x 140 (W) x 28 (H) mm
- Weight: 0.24 kg
- Operating temperature: -10 - 45°C
- Storage temperature: 40 - 70 °C
- Humidity: 5 - 90% RH, non-condensing Scope of delivery:
- 2-port Gigabit high-power PoE+ extender
- Quick guide Color: Black Product dimensions: 77 (L) x 140 (W) x 28 (H) [mm]
