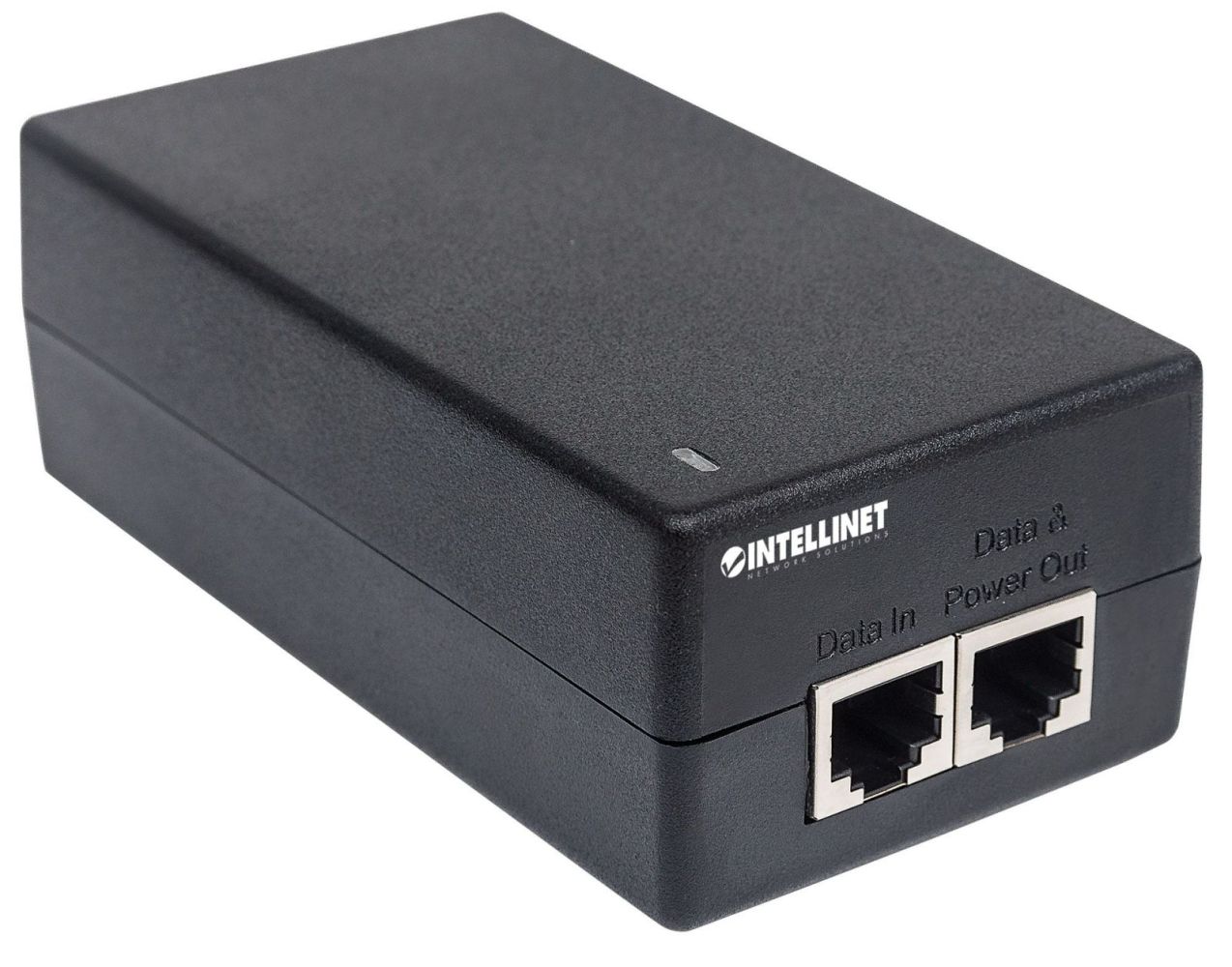

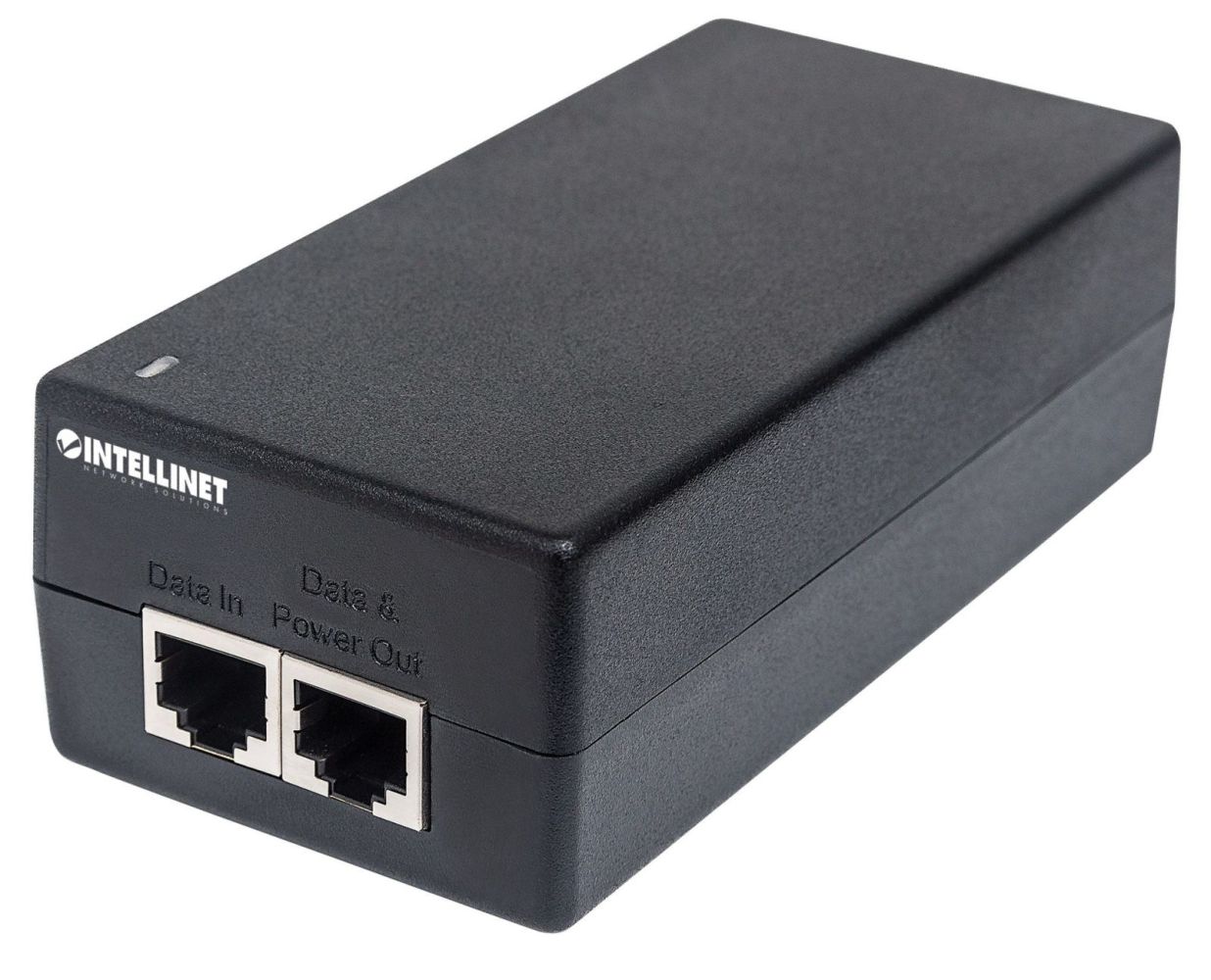

Intellinet 561235
Gigabit Ultra PoE injector 1 x 60 watt port, 802.3at/af compliant, plastic housing, optional wall mounting content_copy

60 watts of power for the Internet of Things (IoT)
The Gigabit Ultra Power over Ethernet injector from Intellinet Network Solutions delivers data and power up to 60 W to your IoT applications, be it it lighting, sensors, building automation and much more. This is made possible by using all four pairs of Cat5 or Cat6 network cables via Ultra PoE. Some examples of Ultra PoE needs: Emergency call systems in hospitals require 30 to 50 watts. Point-of-sale card readers up to 60 watts. Lighting systems and their control units 40 to 50 watts. Thin clients up to 50 watts. Ultra PoE is the power and networking solution for all of these important systems. This Intellinet Gigabit Ultra PoE injector is suitable for all IEEE 802.3af/at compliant devices.
Save a lot of money on cabling
You have in your existing Network only one non-PoE capable switch, but several PoE components such as access points, IP cameras and VoIP phones? This means a lot of effort with double cabling, because all these devices have to be connected with both a power cable and a network cable. It becomes particularly expensive if additional sockets have to be installed, as they are not always within immediate reach. With this PoE injector you avoid this effort. In addition, older network switches can be used for longer without having to upgrade to expensive new PoE switches. The security of your network equipment is not jeopardized because the injector reliably protects against overvoltage. - Saves installation costs by transmitting data and power via the existing network cables

• Output power up to 60 watts Cat5 or Cat6 network cable with four pairs of wires
• Supports all IEEE 802.3at and IEEE 802.3af compliant PoE devices (wireless access points and bridges, VoIP phones, network cameras)
• Supported range: up to 100 m
• Internal power supply
• Fan-free design for quiet operation
• Integrated wall mounting holes and four rubber feet for placement on desks
• Fully NDAA compliant
• 3-year warranty Standards
• IEEE 802.3af (Power over Ethernet)
• IEEE 802.3at (High-Power PoE+ Power over Ethernet)
• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3ab (Gigabit Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
General

• Supported media
• 100Base-TX Cat5 UTP/STP RJ45, 8-pin.
• 1000Base-T Cat5e UTP/STP RJ45, 8-pin.

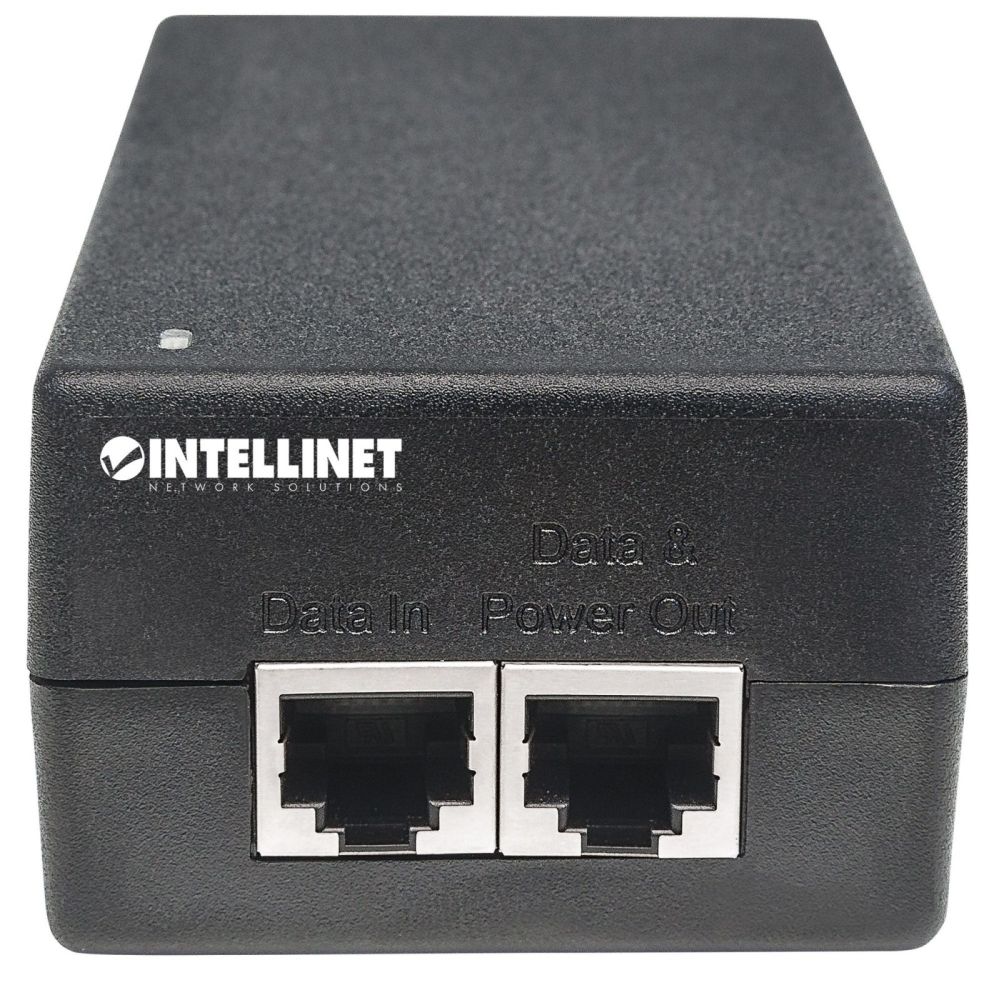

• Ports:
• 1 x RJ45 10/100/1000 Mbit/s input
• 1 x RJ45 10/100/1000 Mbit/s data and power output
• Protection functions:
• Short circuit/ground fault
• Overload
• Overvoltage
• PoE pins
• Pin 1: DC (-)
• Pin 2: DC (-)
• Pin 3: DC (+)
• Pin 4: DC (+)
• Pin 5: DC (+)
• Pin 6: DC (+)
• Pin 7: DC (-)
• Pin 8: DC (-)
• Certificates: FCC Class A, CE, RoHS
LED

• Power and PoE LED

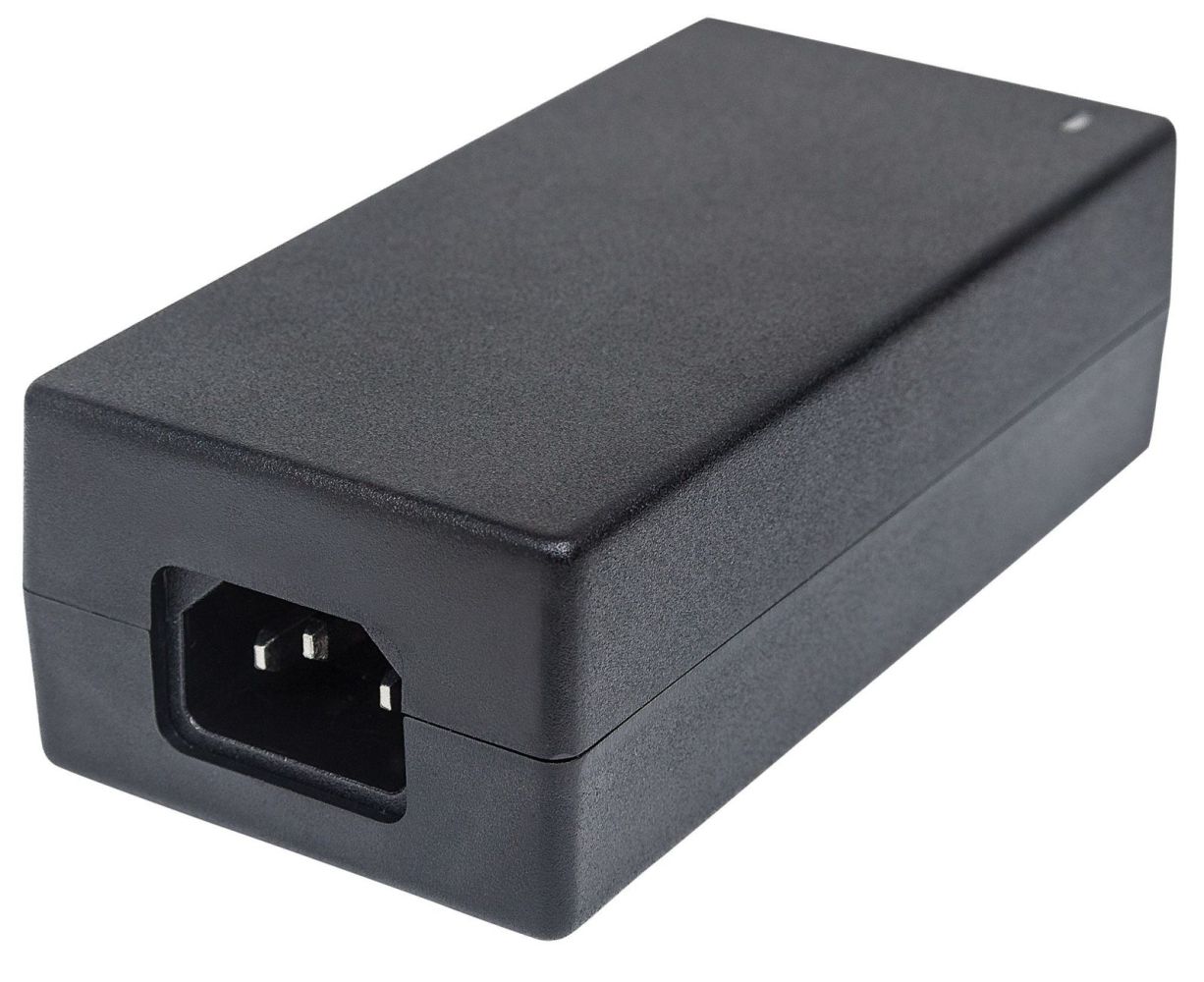

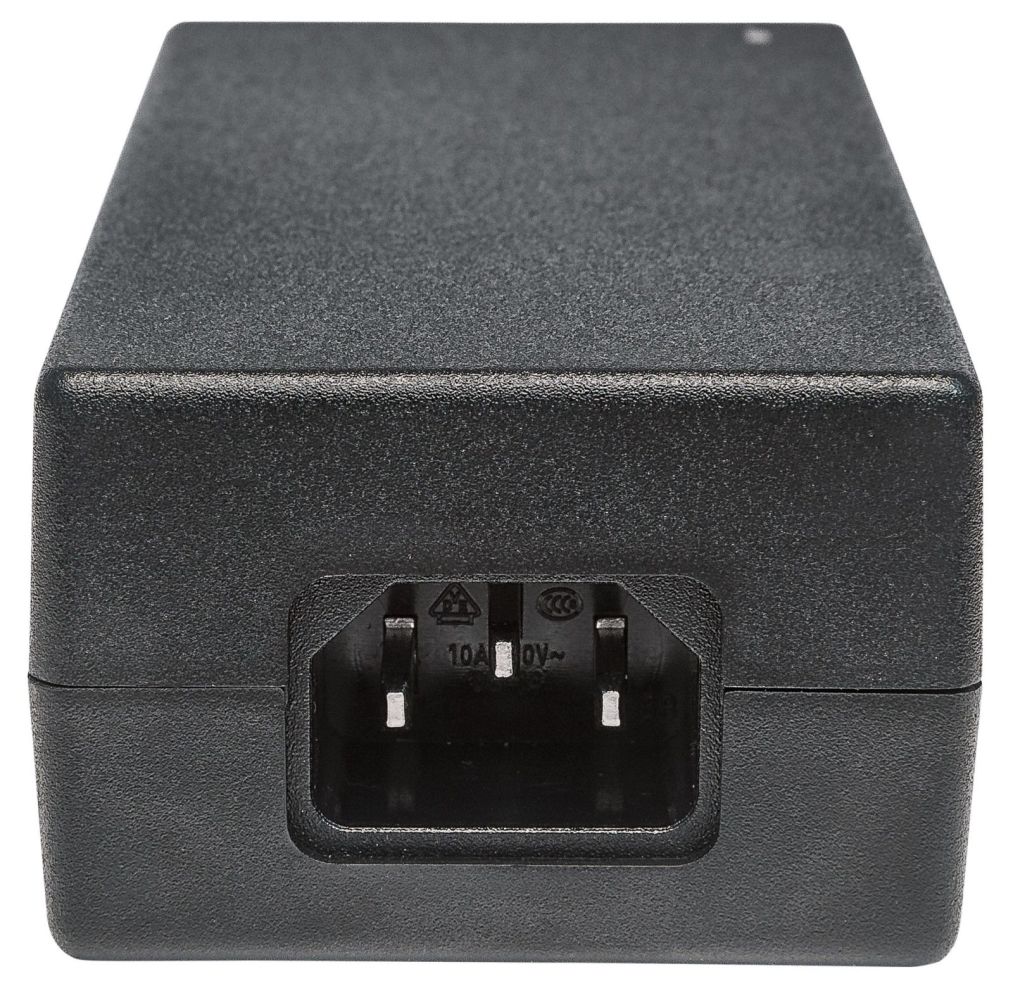

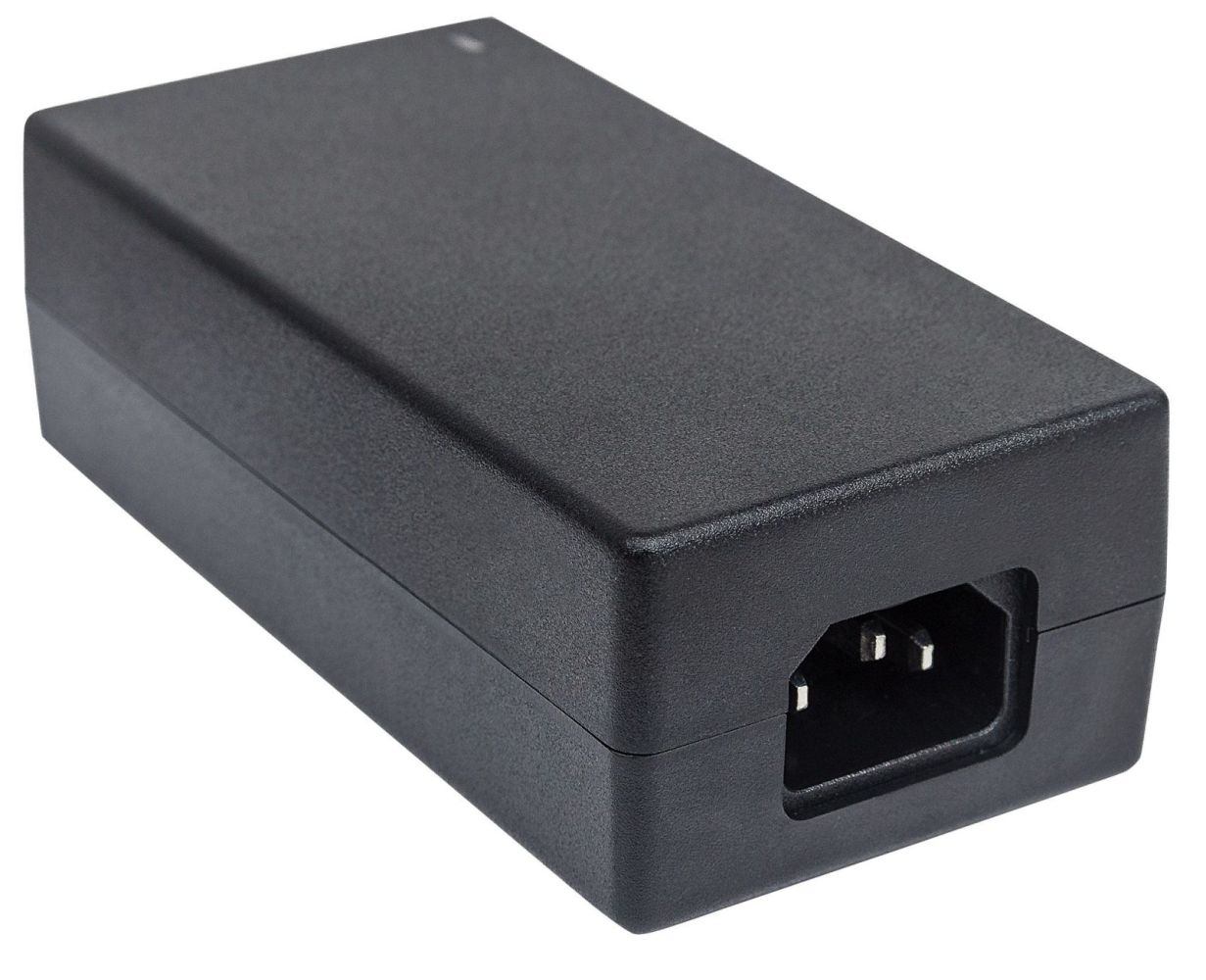

power supply

• Input: 100 - 240 V AC, 50 - 60 Hz
• Output: 52.0 V, 1.15 A
• Power consumption: 60.0 watts (max.)
Physical details

• Plastic housing
• Dimensions: 146 (L) x 62 (W) x 40 (H) mm
• Weight: 0.22 kg
• Operating temperature: 0 – 40°C
• Humidity: 10 – 90% RH, non-condensing
• Storage temperature: -10 – 70°C
Scope of delivery

• 1-port Gigabit Ultra PoE injector
• Power cable
• Quick guide Color: Black Product dimensions: 146 (L) x 62 (W) x 40 (H) [mm]
